Home > Products > Steel Frame Reinforced Nylon Pipe > ISO9001-2008 Steel Frame Reinforced composite nylon 6 drainage pipe
ISO9001-2008 Steel Frame Reinforced composite nylon 6 drainage pipe
- 400000 Meter / Meters per Month
- Shanghai
- T/T Credit Card
-

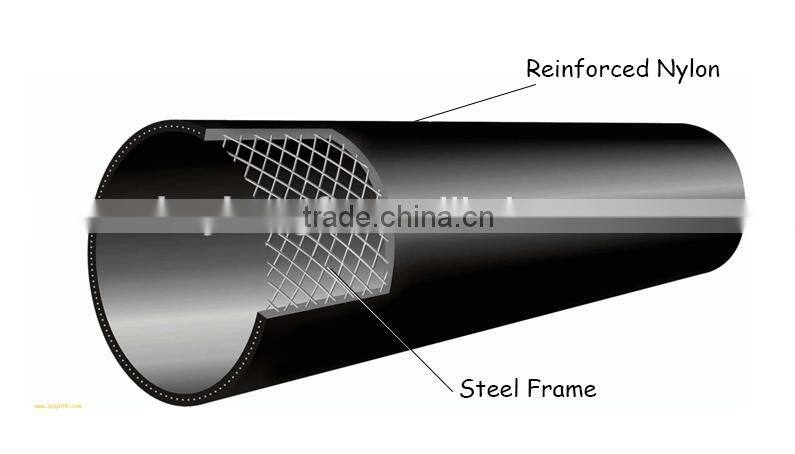

Steel Structure Reinforced Nylon Pipe Dredger pipe
-
Steel Structure Reinforced Nylon Pipe, Dredger pipe, heat resistant plastic pipe
-
Steel Frame Reinforced Nylon Pipe for transportation of pulverized coal
-
machine tool customized shield machine
-
engineering machinery customized shield machine
-
self-contained complete nylon pipe fittings
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | HongBao | Model Number: | DNx |
| Material: | PA6&Steel | Heat Conductivity: | 0.223 | Specification: | DN200-DN800 |
| Linear Expansion Coefficient: | 6.5*10-5(1°C) | Outer Diameter: | 186mm-1220mm | Length: | 6m,12m or as your request |
| Thickness: | 10mm-18mm | Standard: | ISO9001/14001,CE | Color: | Customized |
Product Description
ISO9001-2008 Steel Frame Reinforced composite nylon 6 drainage pipe
Product Description
As an integrated performance of new ploymer engineering plastics,steel skeleton reinforced nylon pipeline can be widely used in powder,fluid,gas delivery. It has solved many problems, like serious wear and tear,corrosion,fouling,the high temperature of the intermediate value,construction difficulties in long-distance,high-pressure industry materials pipe.

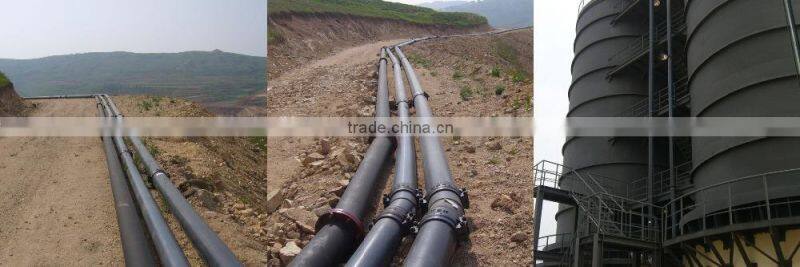

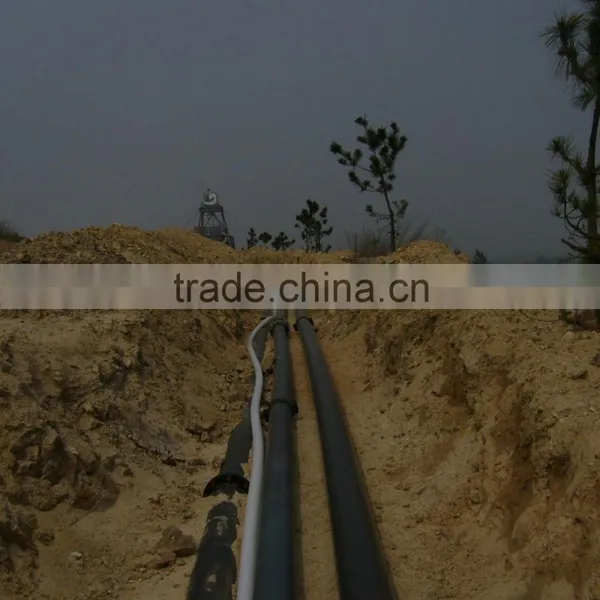

Practical application
Specification
DN(mm) |
OD(mm) |
Thickness |
Weight(Kg/m) |
MPa |
Coefficient of thermal conductivity (m/m°C) |
Expansion coefficient (1/°C) |
200 | 219 | 17 | 17 | 3 |
0.24 |
6.5*10 -5 |
250 | 273 | 17 | 25 | 3 | ||
300 | 325 | 18 | 30 | 3 | ||
350 | 377 | 18 | 38 | 2.5 | ||
400 | 426 | 18 | 43 | 2.5 | ||
450 | 480 | 21 | 46 | 2.5 | ||
500 | 530 | 21 | 57 | 1.6 | ||
600 | 630 | 25 | 74 | 1.2 | ||
700 | 720 | 28 | 98 | 1.0 | ||
800 | 820 | 30 | 136 | 1.0 |
The advantages of products
1.Using hoops make two pipes linked to reduce the expansion coeffficient
2.Easy installation
3.Wear-resisting,strength better than other congeneric Product

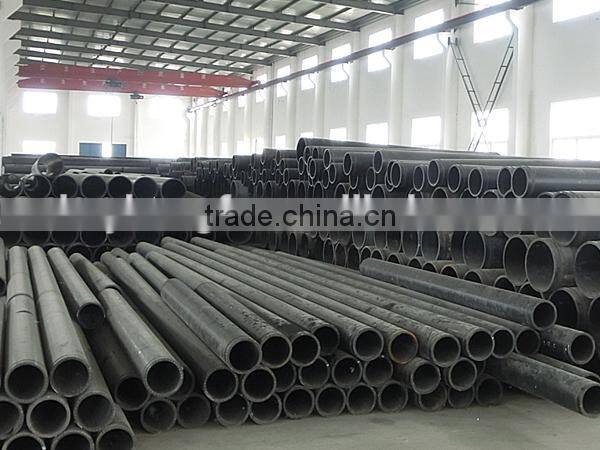

The photos of factory
30 Years of production experience
Established in 1986, Jiangsu Hongfa
specializes in researching, developing and manufacturing different kinds of Special Casting Nylon and composite reinforced nylon.
Various kinds of products
The company can provide steel frame reinforced nylon pipe, MC nylon pipe, nylon gear, nylon bushing, nylon pulley, nylon machine tool shield and etc.
Comprehensive quality management system
The company approved by GB/T 19001-ISO9001.2000, and has the professional QC team which can control the raw material purchase, products production, and after service.
Welcome to contact
Jeff
Skype ID:jeff9212282
Mobile phone number:+8618552467980
TEl:86-515-88667811
