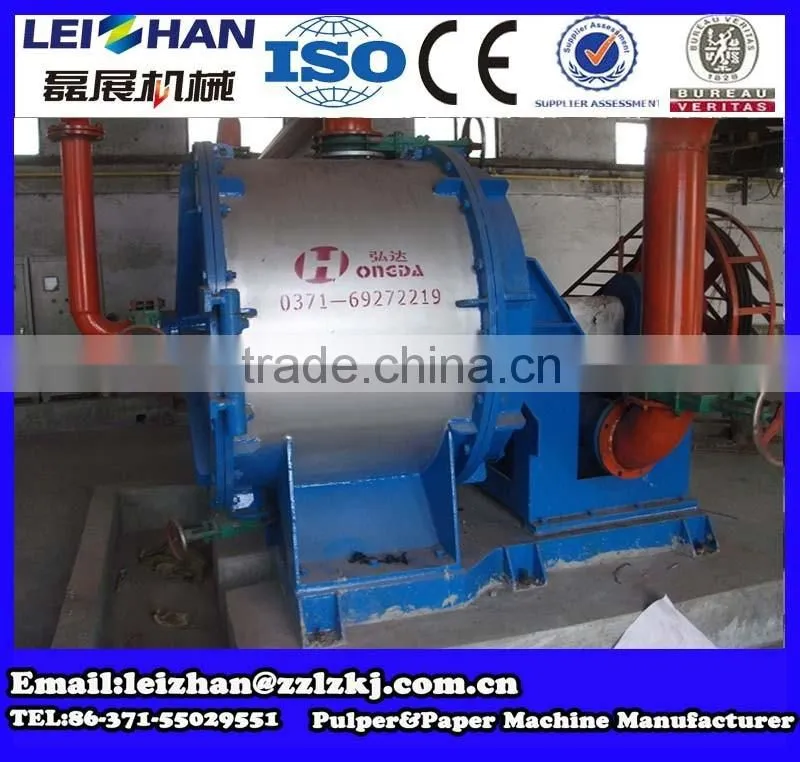

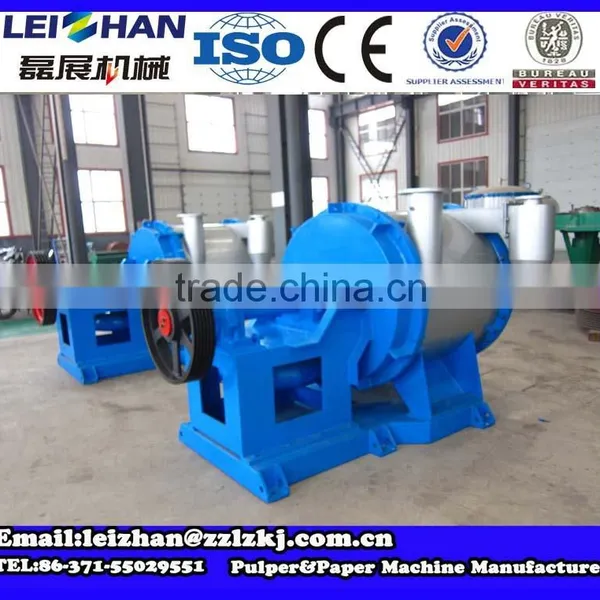

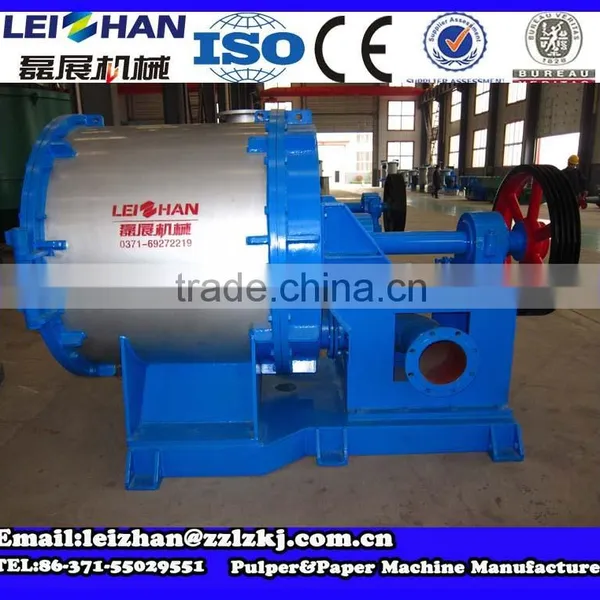

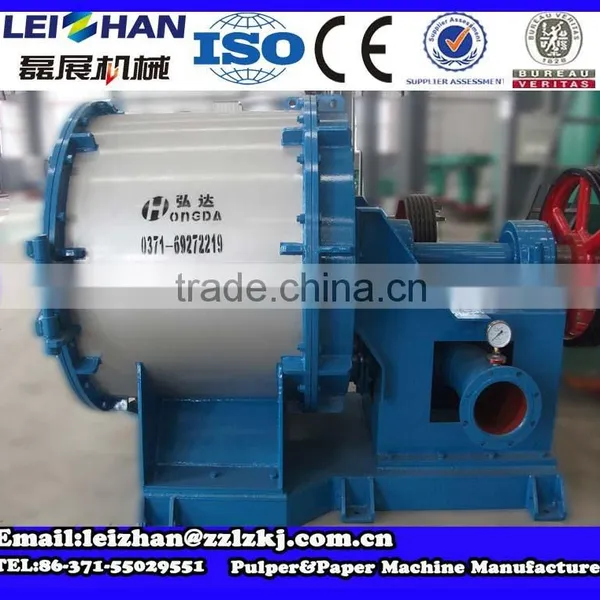

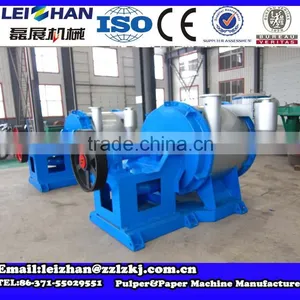

High Quality Fiber Effect Separator/ Paper production Line
- 100 Set / Sets per Month
- Qingdao port
- T/T L/C D/P D/A Credit Card PayPal
- Industrial Pulp Machine Single Fiber Effect Separator Price
- Automatic Pulp Ejection Machine Single Effect Separator
- Paper pulp production machinery pressure screen for paper making
- Paper pulp machine price in China/ machinery for pulp making
- CE certification industrial paper pulp equipment pressure screen
- Wood pulp for pulping making/ paper pulp making machines/ pressure screen price
Product Details
Condition: | New | Type: | Pulping Equipment | Computerized: | No |
Place of Origin: | Henan, China | Brand Name: | Leizhan | Model Number: | ZDF |
Voltage: | 380 | Power(W): | 37--110 | Dimension(L*W*H): | As to the type |
Weight: | As to the type | Certification: | BV, ISO | Warranty: | 1year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
To be packed in strong and sound seaworthy packing capable of standing tropical climatic conditions.
We also respect your demands in packing terms and details.
Additional sea & air worthy export packaging will be available if required, at additional costs.
Product Description

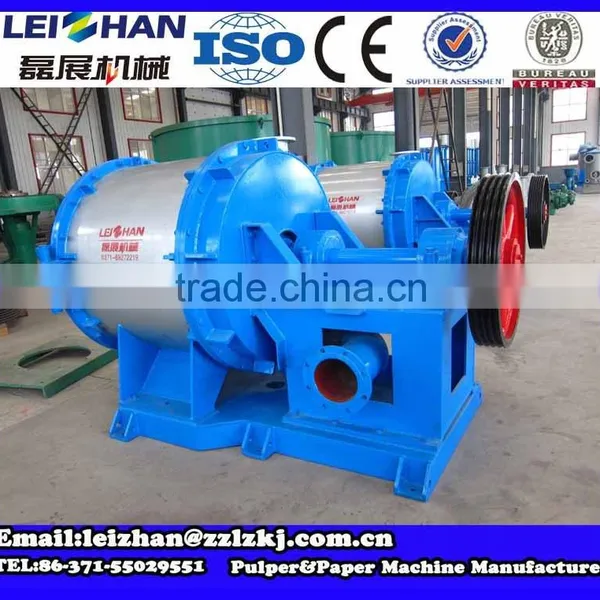

High Quality Fiber Effect Separator/ Paper production Line
Application
This fiber separator machine is used for separating the light and heavy impurities in waste paper recycling process,also making the secondary breaking of the pulp from the hydrapulper,The screen palte hole of the hydrapulper can be increased,which improves the production capacity.
Principle
the pumping slurry from the tube above the tangentially into the separation chamber, the use of high-speed impeller rotation the centrifugal force, so that the slurry separator circular motion than significant weight impurities in the slurry was quickly flung periphery along rotate with the cylinder wall, heavy residue into the slag removal system. Light impurities role in the centripetal force gathered in the center, under pressure from the export of the center front of the discharge, separation of impurities good pulp through the sieve into the next process.
Application
Model Type | ZDF2 | ZDF3 | ZDF4 | ZDF5 | ZDF6 | ZDF7 |
Product capacity(t/d) | 50-70 | 80-120 | 180-250 | 280-360 | 300-400 | 400-500 |
Concerapation of inout pulp(%) | 2-4 | |||||
Pressure of input pulp(Mpa) | 0.15-0.20 | |||||
Pressure of inflow pulp(Mpa) | 0.03-0.05 | |||||
Moto power(Kw) | 45 | 55 | 75-90 | 160 | 200 | 280 |

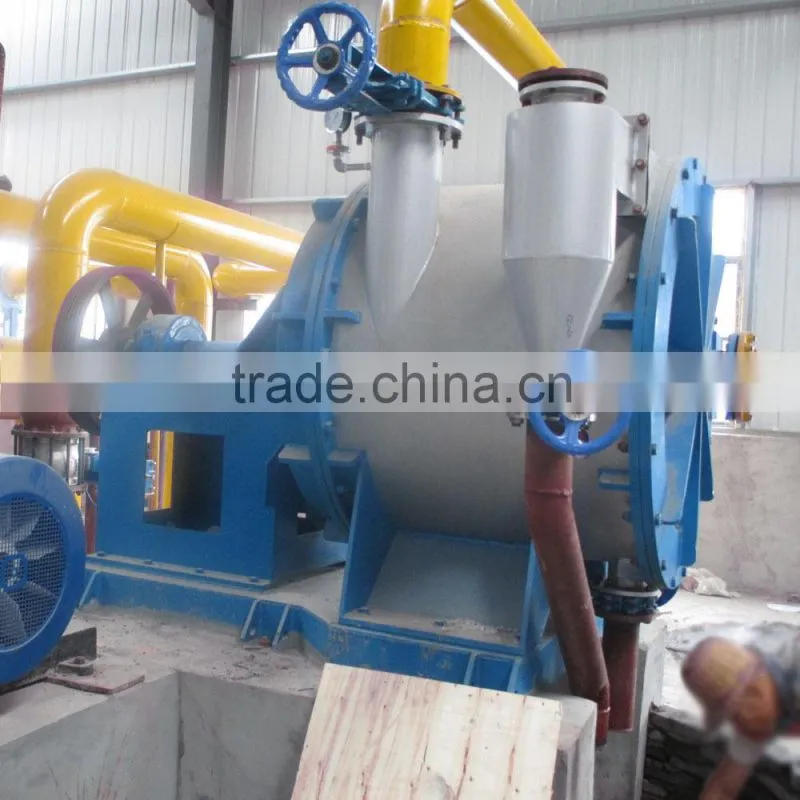

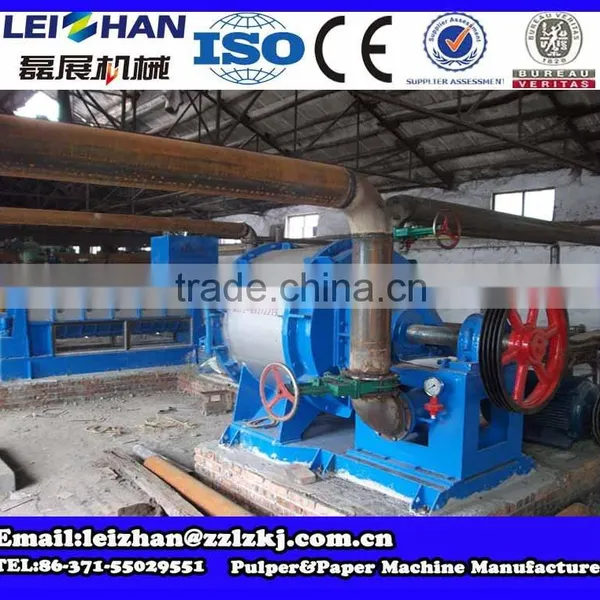

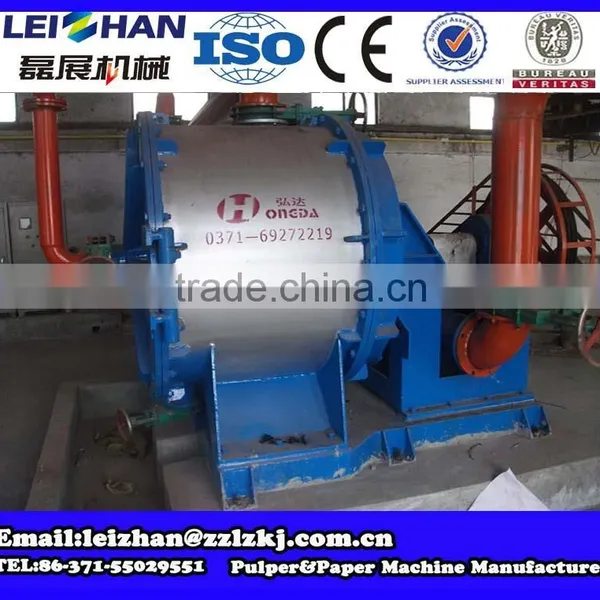

Working site
Structure
base, casing, impeller and bearing frame, knife, plate, sieve;

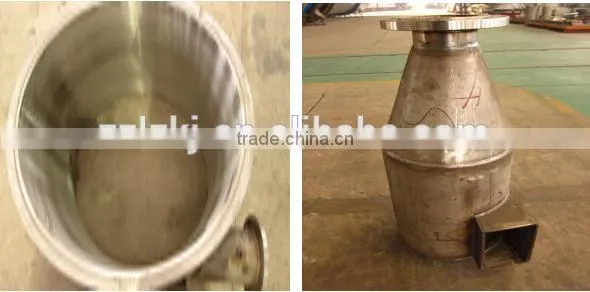

Main body
Sieve plate

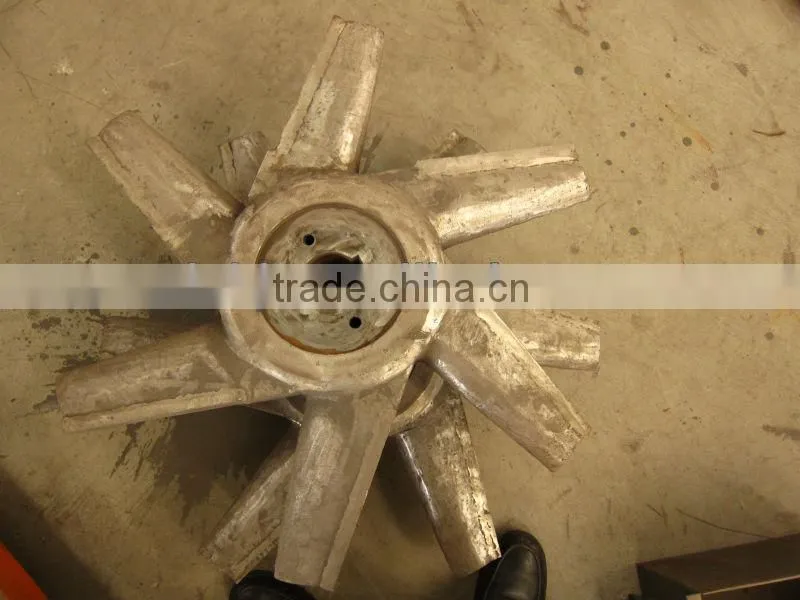

Cutter
Whole Stock Preparation Line In Egypt
Project: Whole set of 150t/d Kraft Liner, Fluting, White board paper, T-paper Stock Preparation Line.
Customer company: Egypt Al- Karma Paper Industries
Address: Sadat city, Egypt.
Time: 2015
Working Site
Project: 600T/D T-Paper, Fluting&Testliner Paper production line .
Project: Toilet Tissue Roll Making Project Egypt.
---About Leizhan
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment.
Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support.
---Trading Nation
We have exported to many foreign countries,for example, Russia, Egypt, Iran, Argentina, Uzbekistan, Turkmenistan, Burma, Vietnam, Pakistan etc. And we are looking forward to establish cooperation relationship with friends all around the world.We warmly welcome you on-the-spot investigation!
Every year, We participate in international exhibition including that in India, Egypt, Shanghai, Beijing, Guangzhou, China etc.
Acceptance standard
- Unless stipulated in the technical documents accordingly, technology acceptance standards of designed main parts are in accordance with relevant state departments issued current relevant standards.
- providing main parts technology acceptance standard of technical design.
Technical service
- During paper machine installation, We cooperate with buyer for technological improvement to reach desired results.
- We explains paper machine performance, structure and operation to buyer related people for free.
Quality guaranteed
- We makes sure paper machine achieve promised performance with correct installation, commissioning, normal operation and maintenance.
- In warranty period, for quality problem, we repair and replace defective parts for free(except quick-wear part).
Welcome to visit us, we are located in Zhengzhou city, Henan province, We will pick you up at air port.
Company Profile
Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market.
This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc.
Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc.
By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.
