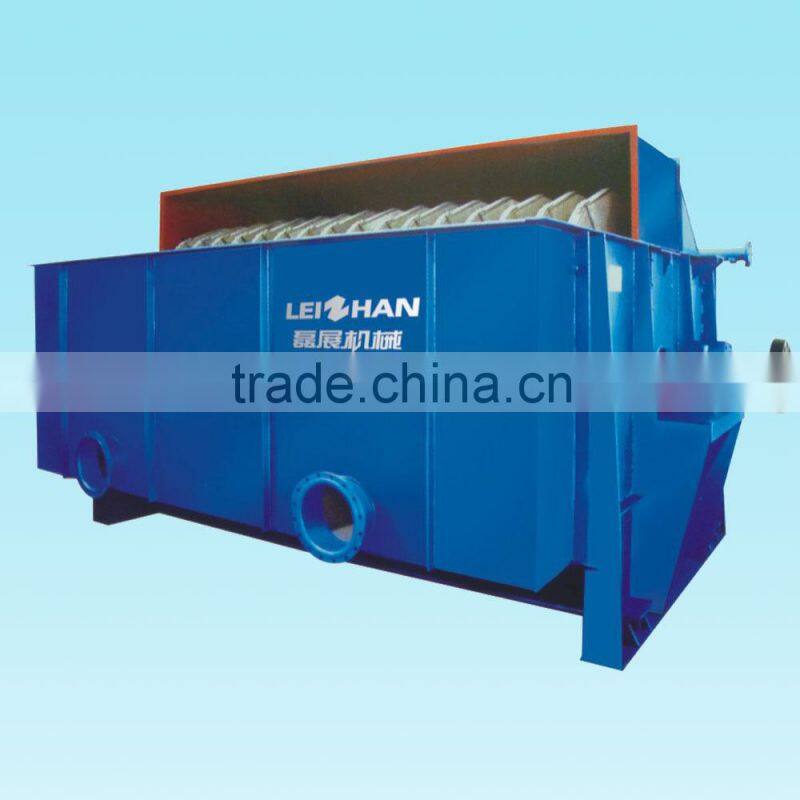

Paper recycling machine pulp washer ZNP series disc thickener export
paper making machinery paper pulp disc thickener machine :
Disc Thickener is maninly used for the low consistency thickening of the stock
1. Strong Point
Disc Thickener is maninly used for the low consistency stock thickening. The water log installation height is not needed. It can replace traditional gravity cylinder thickener. In the same floor space, the throughout of the gravity disc thickener is serval times more than that of the gravity cylinder thickener, so a lot of space and power can be saved.
2. Performance and Working Principle
The pulp at consistency of 0.8-1.2% enters the vat and attached the disc sector, filtrate is guided by hollow shaft and discharged out at two end. Stock attached on sector is knocked off by high-pressure shower. The thickened stock at consistency of 3-4% flow over the plate of adjusting valve and into discharge chamber where it is out feed. The rotation speed of main shaft can be adjusted for required outlet consistency and capacity.
3. Strong Point
Thickening of broke or washing of low consistency pulp systems;
Compact design;
Variable speed drive, very low power consumption.
Disc Thickener is maninly used for the low consistency thickening of the stock
1. Strong Point
Disc Thickener is maninly used for the low consistency stock thickening. The water log installation height is not needed. It can replace traditional gravity cylinder thickener. In the same floor space, the throughout of the gravity disc thickener is serval times more than that of the gravity cylinder thickener, so a lot of space and power can be saved.
2. Performance and Working Principle
The pulp at consistency of 0.8-1.2% enters the vat and attached the disc sector, filtrate is guided by hollow shaft and discharged out at two end. Stock attached on sector is knocked off by high-pressure shower. The thickened stock at consistency of 3-4% flow over the plate of adjusting valve and into discharge chamber where it is out feed. The rotation speed of main shaft can be adjusted for required outlet consistency and capacity.
3. Strong Point
Thickening of broke or washing of low consistency pulp systems;
Compact design;
Variable speed drive, very low power consumption.
Main specification:
| Type | ZNP2508 | ZNP2510 | ZNP2512 | ZNP2514 | ZNP2516 | ZNP3510 | ZNP3514 | ZNP3512 | ZNP3516 |
| Diameter of Filtering plate (mm) | Φ2500 | Φ3500 | |||||||
| Amount of disc (n) | 8 | 10 | 12 | 14 | 16 | 10 | 12 | 14 | 16 |
| Nominal area (m2) | 60 | 75 | 90 | 105 | 120 | 150 | 180 | 10 | 20 |
| Concentration of Input Pulp(%) | 0.8-1.2 | ||||||||
| Concentration of Output Pulp(%) | 3.5-4.5 | ||||||||
| Product capacity ONP(t/d) | 0.9-1.2t/(m2.d) | ||||||||
| Product capacity Aocc(t/d) | 1.5-2.4t(m2.d) | ||||||||
| Product capacity(Kw) | 11 | 15 | 18.5 | 22 | 30 | ||||
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
.
