Factory Price Bag Automatic Powder Coffee/ Milk Packing Machine
- 500 Set / Sets per Month
- Guangzhou /Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Automatic Dry Baked Food Packaging Machine Price
-
Small Sachet Automatic Granule /Sugar Packing Machine
-
Nitrogen Filling Automatic Pouch Snack/Cashew Nut/Potato Chips Packing Machine
-
Good price water pouch packing machine for juice
-
Semi Automatic Vertical Date/Chocolate Beans/Candy Packing Machine
-
Horizontal Flow Pillow Packing Machine/ Biscuit Packing Machine
Product Details
Condition | New | Application | Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | |
Packaging Type | Bags, Bottles, Film, Pouch, Stand-up Pouch | Packaging Material | Plastic | |
Automatic Grade | Automatic | Driven Type | Electric | |
Voltage | 220V 380V | Power | 2.2KW | |
Place of Origin | Guangdong, China | Brand Name | Chlbao granular spices packing machine | |
Model Number | CBP1-4230PA | Weight | 540kg | |
Dimension(L*W*H) | L 1320 * W 950 * H 1360 mm | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

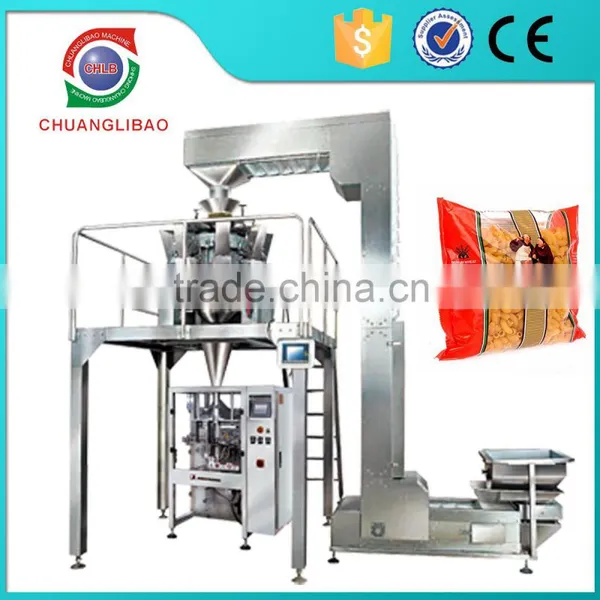

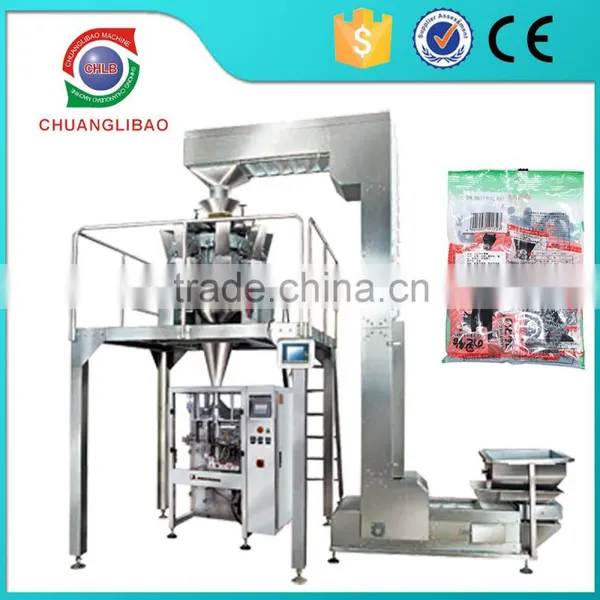

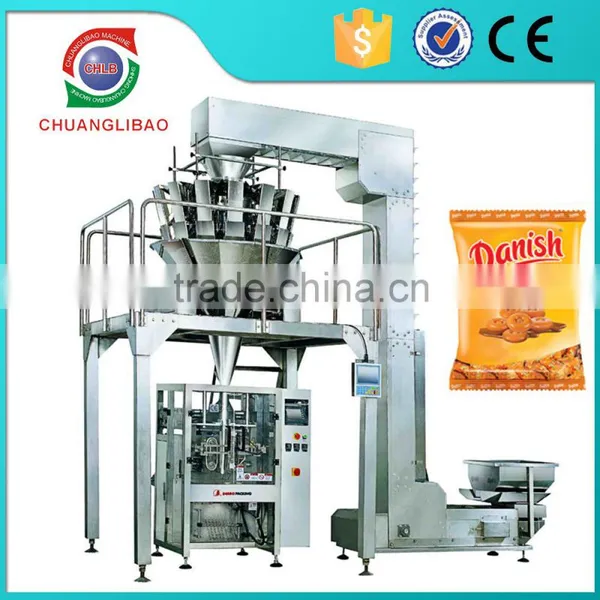

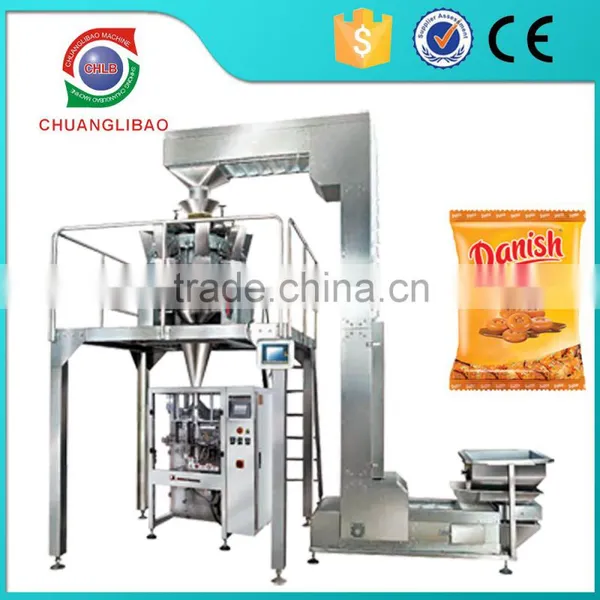

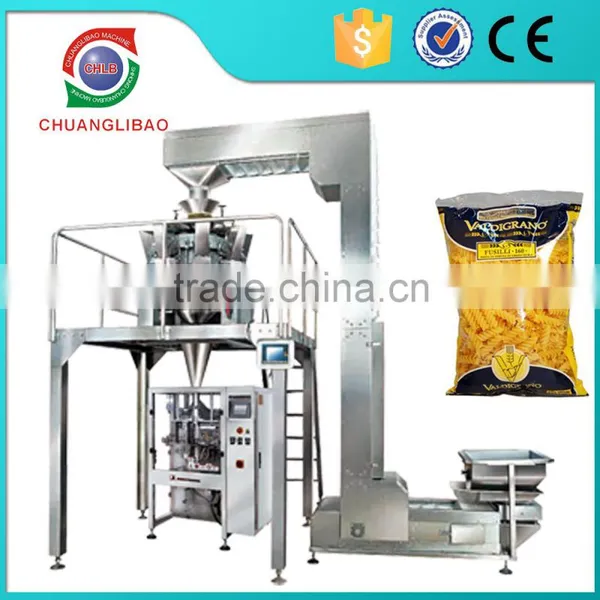

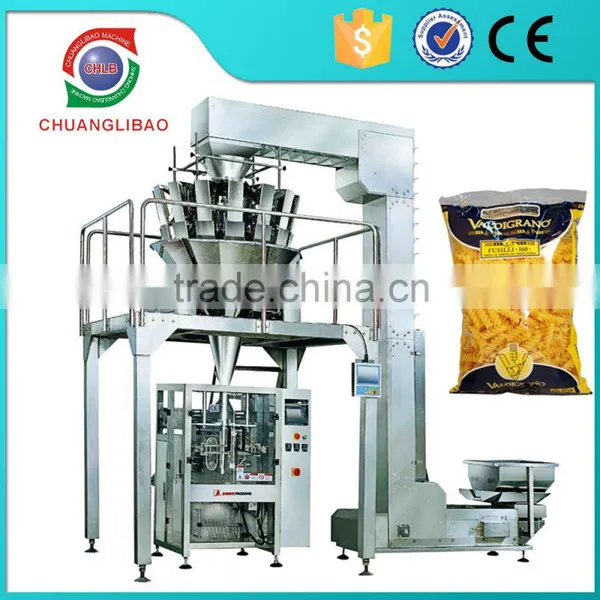

Factory Price Bag Automatic Powder Coffee/ Milk Packing Machine
1.Application & sample photos:
Suit for the quantitative weighing of Popcorn, dry pasta, Meatball, Macaroni, hamburgers, oats, washing powder, puffed food, French Fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, hardware and medicine such particle, platy, strip and irregular shape.
2.Functional Specification
lImport PLC computer control system, human-machine screen, easy touch screen operation.
lWith imported servo film transporting system and mark sensor, accurate positioning, perfect packing.
lPerfect automatic alarm function, to minimize the loss.
lCombine with metering device, it can finish the process of metering, feeding, filling, bag making, printing.
lBag type: can make it with pillow bag and vertical bag according to customer needs.
3.Origin of each components
Touch screen: Magic Switch series: Schneider/French
PLC controller: Siemens/Germany Module: Siemens/Germany
Servo motor: TECO/Taiwan Inverter: Schneider/French
Relay: Omron/Japan Date printer: Dingsheng/Shanghai
Solid phase: Schneider/French Photo-sensor: SICK/Germany
TYPE | CB-4230 |
Bag length | 80-300mm(L) |
Bag width | 50-200mm(W) |
Max width of roll film | 420mm |
packing material | OPP/CPP,OPP/PE,PET/PE |
Packing speed | 5-60bag/min |
Measuring range | 150-1200ml |
Air consumption | 0.65mpa |
Gas consumption | 0.3/min |
Power voltage | 220V |
4.Spare part and origin
Spare parts list | |||
No. | SPECIFICATION | unit | terms |
1 | horizontal seal heater inductor | 2pcs | Free of charge |
2 | vertical seal heater inductor | 1pcs | |
3 | Cutter | 1pcs | |
4 | thermocouple | 1pcs | |
5 | move film belt | 2pcs | |
6 | Proximity switch | 1pcs |
Component list | |||
No. | Name | General equipment | |
1 | PLC touch scree | Siemens /Germany | |
2 | PLC | Siemens /Germany | |
3 | Servo motor | Siemens / Germany | |
4 | Control temperature | Yudian/Xiamen | |
5 | Colour code photoelectricity | Autonics/Korea | |
6 | Cylinder | Airtac/Taiwan | |
7 | Electromagnetic valve | Airtac/Taiwan | |
8 | FRL combination | Airtac/Taiwan | |
9 | Throttle | Airtac/Taiwan | |
10 | Mid- relay | Omron/Japan | |
11 | Solid state relay | YangMing/ Taiwan | |
12 | Proximity switch | YangMing/ Taiwan | |
13 | Button switch | Schneider/France | |
14 | Power switch | Schneider/France | |
15 | Residual Current Device switch | Schneider/France | |
16 | Switch power(3.6A) | Schneider/France |
5.Teaching video:
/watch?v=7GIUGp2quc8
6.Excellent services for free:
- Consultation service before, during, and after sales;
- Project planning and design services;
- Debugging of equipment until everything is functional;
- Management of equipments' long distance shipping;
- Training of equipment maintenance and operating personally;
- New production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service.
- Spare part list
No. | Spare part | QTY | |
1 | kit | 1 | 400mm x 200mm x 200mm |
2 | belt | 2 | For driving the film |
3 | Horizontal heater | 4 | For temperature control |
4 | Vertical heater | 4 | For temperature control |
5 | Socket head wrench | 1 | For driving screw |
6 | Cross screwdriver | 1 | For driving screw |
7 | Straight screwdriver | 1 | For driving screw |
8 | Monkey spanner | 1 | For driving screw |
9 | Spanner | 1 | For driving screw |
10 | knife | 1 | For cutting |
11 | thermocouple | 1 | For temperature control |
12 | Printer keypad | 1 | For printing |
13 | Printer heater | 1 | For temperature control |
14 | Color ribbon for printer | NY800 BLACK | For printing |
25mm-100m | |||
15 | Manual for sensor | 1 | For operating manual |
16 | brush | 1 | For cleaning |
Payment items: 30% T/T as deposit and 70% T/T balance before the shipment.Machine checking is available before the shipment.
Delivery time:For standard pillow packing machine as CB-100 / 100I / 320 / 380I / 300S etc,10-15 working days;for standard big vertical packing machine,25~35 working days.
CHUANGLIBAO has been an professional manufacturer of packing machine since 2003. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Q1:What is your company specialized in?
A1:Foshan CHUANGLIBAO PACKING MACHINE Co.,Ltd. is built in 2003,it's a professional manufacturer
of Pillow packing machine and Vertical packing machine over 10 years in Foshan,China.About 40 min from factory to Guangzhou airport.
Q2:Have you ever exported your packing machine to other countries?
A2:Yes.We have exported the machines to many other countries,like America,Austrilia,Malaysia,Mexico,
Spain,Croatia,Greece,Thailand,Vietnam,South Africa,India,Indonedia,Saudi Arabia,Jordan,Ymen,Morocco,
Turkey,South Africa,Iran,Russia ,Serbia etc.
Q3:What info you need before confirming the machine?
A3:Your product picture,
your product size(length,width,height,weight etc.),
packing type(Back seal / quad seal / 3-side seal etc),
your product samples(for testing).
Q4:We never operate this kinds of machine,how can I learn it?
A4:You can bring your technician to learn the operation in our company.There are some training lessons
about the machine operation. If you don't have the time to come us,we will send you the video and manual
for your reference.
Q5:If the machine is breakdown with unexpected problems ,what should we do?
A5:At first,you can take off the power and check the machine carefully,then restart it.
Second,operate it step by step according to the machine manual.
Third,if the problem cannot be solved by yourself,you can reflect the situation to us and we will help you
to solve it asap.If needed,our technician can service overseas.
