Help CenterChina PSA Nitrogen Plant Process CE Aproval OEM Manufacture
Related Products
-
China PSA Manufacture Of Nitrogen CE Aproval OEM ManufactureUS$ 20,000 - 60,000MOQ: 1 Set -
Cryogenic Nitrogen Plant ManufacturerUS$ 20,000 - 55,000MOQ: 1 Set
-
Air Separator for Nitrogen ExportedUS$ 25,000 - 60,000MOQ: 1 Set
-
China PSA Nitrogen Generator EquipmentUS$ 15,000 - 25,000MOQ: 1 Set
-
China OEM Nitrogen GeneratorUS$ 20,000 - 45,000MOQ: 1 Set
.
Technical Index - Nitrogen Products | |
Compressed Air Pressure | 0.70MPa(7Bar) |
Oxygen Capacity | 3 - 3000Nm3/h |
Oxygen Purity | 97%~99.999% |
Outlet Pressure | 0.1-0.8MPa (Nitrogen Generator)/15MPa(Filling Manifold) |
Dew Point | ≤-40℃ |
Electrical Power | ~380V/3P/50Hz or Customized |
Product Features - Nitrogen Products |
1. Full Automation All systems are designed for un-attended operation and automatic Nitrogen demand adjustment. 2. Lower Space Requirement The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory. 3. Fast Start-up Start-up time is about 30 minutes to get desired Nitrogen purity. So these units can be switched ON & OFF as per Nitrogen demand changes. 4. High Reliability It’s very reliable for continuous and steady operation with constant Nitrogen purity. Plant availability time is better than 99% always. 5. Molecular Sieves Life Expected Molecular sieves life is more than 10-years i.e. whole life time of Nitrogen plant. So no replacement costs. 6. Low investment and energy consumption 7. Simple operation and maintenance |

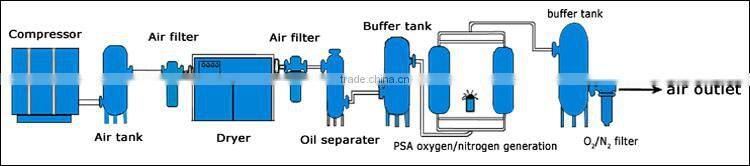

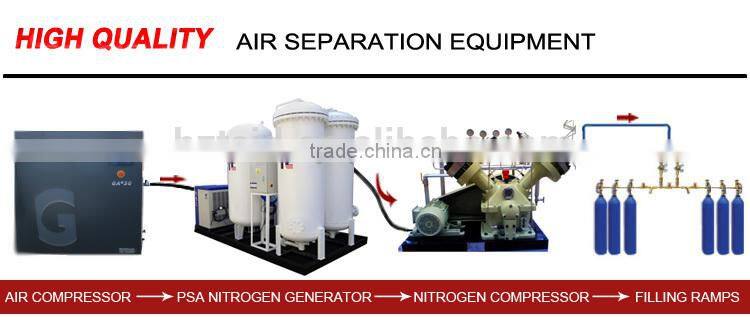

The normal purity Nitrogen system (97%~99.999%) is consisted of equipment as followings:
(according to user different requirements, may has changes)

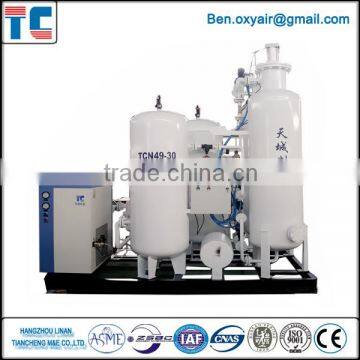

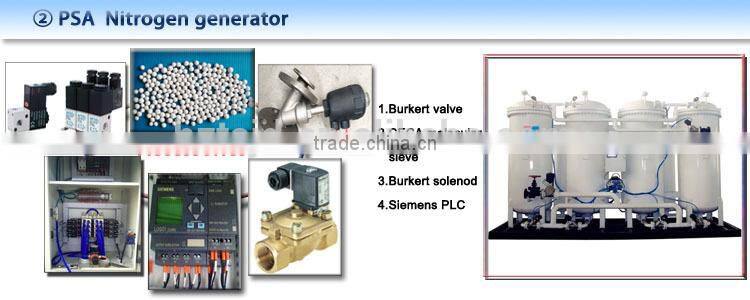

It has 2-vessels filled with Molecular sieves. Clean compressed air at 30º C temp is passed through
1-vessel and nitrogen comes out as product gas. The other vessel is depressurized to atmospheric
pressure and purged with little quantity of Nitrogen coming out from other vessel. This regenerates
Molecular sieves for use in next cycle. Thus 2-vessels keep cycling alternately in Nitrogen
production and Regeneration making Nitrogen gas available continuously. These units are designed
and supplied for 98% to 99.999% (Max) Nitrogen purity.
• From PSA design Nitrogen pressure is available directly up to 5 Bar (A) without need of booster
compressor. So this design is preferred for Low and medium pressure Nitrogen requirements.
• It’s very simple in construction and very easy in maintenance and more popular for most
Oxygen requirements.
when you kind sending the inquiry to us,pls kindly send it with below information
Technical Information | Your kind requirment |
1).N2 Flow Rate | _____Nm3/hr |
2).N2 Purity | _____% |
3).N2 Discharge Pressure | _____Bar |
4).Voltages and Frequency | _____V/P/Hz |
5).N2 Application |
|
