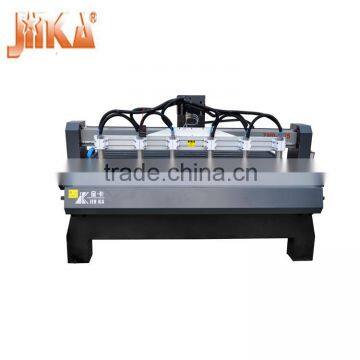

JINKA ZMD-1825 CNC woodworking router and engraving machine
- 20 Set / Sets per Month
- Shanghai/Other port as customer request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
JINKA ZMD-1820A CNC woodworking router and engraving machine
-
JINKA ZMD-1818A with 6 spindles CNC woodworking router and engraving machine
-
JINKA ZMD-1815A 2 Z-Axis with 6 spindles CNC woodworking router and engraving machine
-
JINKA ZMD-1815 CNC woodworking router and engraving machine
-
JINKA ZMD-1625A one Z AXIS with 5 spindles CNC woodworking router and engraving machine
-
JINKA ZMD-1625A one spindle CNC woodworking router and engraving machine
Product Details
Condition | New | Place of Origin | Anhui, China | |
Brand Name | JINKA | Model Number | ZMD-1825 | |
Rated Power | 0.8-4.5KW | Engraving Speed | 20m/min | |
Main Axle Rotational Speed | 6000-24000rpm/min | Feeding Height | 160mm | |
Milling Cutter Diameter | 3.175/4/6/12.7mm | Application | wood,metal,Aluminum,copper,hard plastic | |
Dimensions | 3000*3000mm | Weight | 2000kgs | |
Certification | ROHS,CE,BV,ISO | Warranty | 1Year | |
After-sales Service Provided | Overseas service center available |
Product Description
Character features:
1.Adopting imported linear guideway to ensure heavy loading, stable running and high precision
2.Gear rack transmission for all axes to ensure high accuracy and abrasion resistence
3.Manual lubrication system for option to save maintenance time and to extend the lifetime of linear guideway
4.Constant power water-cooling V/F spindle and well-performed inverter to make sure high torque and high efficiency
5.Fast and stable by adopting brand motor and drive, and double motors for Y axis
6.Compatible with any advanced CAM software, such as Type3/Artcam/CAXA/UG/Pro-E/Mastercam/Ucancam and so on
Model | ZMD-1825 |
Dimension | 1800×2500mm |
Feeding Height | 160mm |
Idle Speed | 20m/min |
Processing Speed | 10m/min |
Spindle power | 800W~4.5KW water-cooling |
Spindle Speed | 6000~24000 rpm/min |
Voltage | AC220V/50Hz or AC380V/50Hz |
Milling tools | 3.175/4/6/12.7mm |
File Format | G-code/HPGL |
Precision | ±0.05mm |
Resolution | ±0.02mm |
Control System | Nc studio |
Application field:
Classical mahogany furniture,European style furniture,antique reproduction furniture carving,screen hollowing-cutout,solid wood door,art craft wooden door,free of non-paint door,art craft window,various of tables,board furniture,adverstising signs,scutcheon making,acrylic cutting,blister light boxes,curtain wall making,copper,aluminium.plastic board,wooden board and non metal mould.
Optional Configuration: | |
Spindle Power | 800W/ 1.5KW/2.2KW/3KW/4.5KW |
Spindle Brand | LINNAN/HANQI/SHANGKE/HSD |
Spindle Specification | General/Lengthened/Constant Torque |
Spindle Type | Water-cooling/Air-Cooling |
Control System | Copied NC STUDIO/Original NC STUDIO V10/DSP/ |
Servo system | Panasonic/Yaskawa/Domestic Servo/Leadshine |
Motor | Chinese stepper motor/Chinese hybrid servo motor/Yaskawa/Panasonic |
Feeding height | 210mm/240mm |
Imported ballscrew transmission | YES/NO |
Dust Collector for X axis | YES/NO |
Switch for Spindles | YES/NO |
Feeler Block | YES/NO |
Dust Absorping | YES/NO |
Vacuum Absorping System | YES/NO |
PVC Platform | YES/NO |
Industrial Chilling System | YES/NO |
Hefei Kaxing Digital Control Equipment Co.,Ltd is a high-tech industry enterprise intergrating research,development,manufacturing,sale and after-sales service.We are able to offer preminum quality products an affordable price because we are a factory direct manufacture may offer similar products.We pride our-selves in not only our professional;and strict product line but also incredible custmer service & technical support.
1,There being a core manufacture specialized in Vinyl Cutter and CNC Router for more than 10 years;
2,CE,RoHS,,ECM,STQ certificated;
3,Strictly checking and controlling quality;
4,More than 60 distributors in domestic and international market;
5,Short delivery time(7~20 days);
6,The Core Competitiveness of product price;
7,Professional sale and aftersales
8,replying your any inquiry within 24 hours
We hope to build a deep and long-term cooperation with you as your any needs.
1.How could I get more informations from you?
You could send email,fax or phone us,told us what informations you want(such as air/sea freight,prices and so on),we will reply you in time,then you will know better about our CNC machine and service.
2.Why we have to buy cutting plotter from you?
We are one of the largest and best manufacture of CNC machine in China. We have many year's experience in producing CNC machine equipments,the quality and prices of our machines/materials are superior to others.
And we have specialized marketing group and technical team, we could provide the best service,advice to you.
3.How can I receive your goods?
If you order little quantities(below 100KG)you could use DHL,TNT,UPS or other air express company to delivery your goods,delivery time usually 3-4 working days,they will send the products to your address.
If you order large quantities,you could use sea delivery,and you need to go to your nearest seaport to take your goods,delivery time usually 30-40days.For more details,please contact with us.
4.Way of payment.
We accept the T/T,Western Union,paypal. When we receive your payment,we will prepare your goods and send to you in time. If you order large quantities,you could pay 30% deposit to us,when all the goods ready,we will take photos for you to check it.For more details,please contact with us.
5.How become your sole agent?
When you reach our request quantities,you could become our CNC machine sole agent in your country.
For more details, please contact with us.
