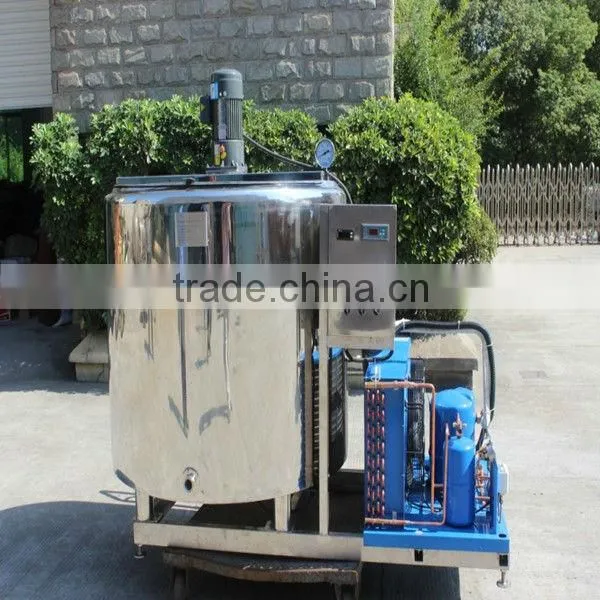

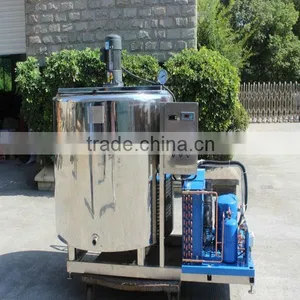

milk cooling tank

Specifications

1) Capacity: 500-10000L
2) Used for milk cooling, refreshing and storing

Standard Components

Haichuan milk coolers are built of polished stainless steel for durability and ease of cleaning. They feature double-wall construction to maintain temperatures, and they utilize our exclusive Temp-Plate heat transfer surface for maximum cooling power and low energy costs.

Available in 13 sizes from 300 to15,000 liters suit the needs of large and small operations, Haichuan milk coolers also come standard with heavy-duty agitators and DANFOSS compressor system. They can be adapted to your operational needs with the refrigeration and control systems providing the most suitable range of features.

• Agitation System
  The agitation system ensures the proper blending and even temperature distribution of milk prior to and during milking, as well as for samples. The agitator assembly consists of a heavy-duty gear drive and a paddle with a milk sweep design. Two agitator assemblies come standard on 11,000liters model coolers and larger.

Features and Benefits

• Stainless Steel Construction
  Highly polished, seamless Type 304 stainless steel construction provides durability and cleanability in an attractive finish.
• Exclusive Temp-Plate^® Design
  Inner liner jacketed with exclusive Temp-Plate heat transfer surface maximizes refrigeration efficiency.
• Double-Wall Construction
  Insulated double-wall construction maintains high thermal storage efficiency.
• Built To Exacting Standards
  Built to exacting specifications which meet or exceed worldwide milk cooling and storage standards.
• Adjustable Legs
  Adjustable legs with beam profile ensures uniform weight distribution even on uneven surfaces.
• Swinging Manway Access
  Manway cover swings to side to provide easy inspection of milk and servicing of tank; seals tight to keep milk sanitary.
•

  Vessal Capacity(L)	P.F(W)	REV	Matched power	Size(L*w*H)	Refrigerant	Power supply
  500	5322	25r/m	3KW	900*900*1600	R404A/R22	380V/3/50Hz
  1000	8842	35r/m	4.5KW	2200*1350*1550	R404A/R22	380V/3/50Hz
  1500	11244	35r/m	5KW	2200*1200*1750	R404A/R22	380V/3/50Hz
  2000	13221	35r/m	6KW	3300*1500*1700	R404A/R22	380V/3/50Hz
  2500	16221	35r/m	7KW	3700*1450*1500	R404A/R22	380V/3/50Hz
  3000	16221	35r/m	7KW	3950*1500*1700	R404A/R22	380V/3/50Hz
  4000	32442	35r/m	14KW	3950*1900*1850	R404A/R22	380V/3/50Hz
  5000	32442	35r/m	14KW	4200*2100*2000	R404A/R22	380V/3/50Hz
  6000	40000	35r/m	14K/W	4200*2100*2200	R404A/R22	380V/3/50Hz
  8000	41688	35r/m	19K/W	5200*2200*2150	R404A/R22	380V/3/50Hz
  10000	51360	35r/m	23K/W	6000*2200*2150	R404A/R22	380V/3/50Hz
  12000	51360	35r/m	23K/W	6000*2200*2300	R404A/R22	380V/3/50Hz

•

•
