Home > Products > vertical mill > coal vertical roller mill for sale
coal vertical roller mill for sale
- 1 Set / Sets per Month
- Shanghai Nantong seaport for coal vertical roller mill for sale
- T/T
Product Details
| Condition: | New | Production Capacity: | 210T/H | Place of Origin: | Jiangsu, China |
| Brand Name: | Pengfei | Model Number: | 3841 | Voltage: | 6KV |
| Power(W): | 2240 | Dimension(L*W*H): | Depending on capacity | Weight: | according to production capacity |
| Certification: | ISO9001 | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
steel packing for coal vertical roller mill for sale
Product Description
coal vertical roller mill for sale
HRM type Vertical Mill is suitable for grinding of coal, coke, cement raw material, gypsum, barite, apetite, decomposed rock, kaolin and some other materials with medium hardness of metallurgy industry, building material industry, chemical industry, electric power industry, etc. And HRM series Vertical Mill could crush, dry, grind and separate, so the processing flow is very simple. Compared to Tube mill, vertical has a higher grinding efficiency, electric power consumption is 20-30% less, drying capacity is larger, water content of material could reach 15%, the granularity of loaded material is larger, fineness of products is easy to adjust, chemical components are stable and there is no steel ball impaction and no metallic direct contact, thus the noise is lower, abrasion is less. Others, there is separator inside of kiln, so there is no need to equip with separator, thus it takes up less building area, meanwhile the grinding roller could be turn over to outside of material which makes a easy maintenance.
Specification and main technical parameters of vertical mill
Technical Spec. /Units | HRM1300M | HRM1400M | HRM1500M | HRM1700M | HRM1900M | |
Middle Diameter of Abrasive Disc | mm | Φ1300 | Φ1400 | Φ1500 | Φ1700 | Φ1900 |
Output | T/H | 10-15 | 12-17 | 16-22 | 20-28 | 26-35 |
Granularity of Loaded Material for Kiln | MM | 0-40 | 0-40 | 0-45 | 0-50 | 0-55 |
Water Content of Loaded Material for kiln | % | <15 | <15 | <15 | <15 | <15 |
Products’ Fineness R0.08 | % | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
Water Content of Finish Product | % | <1 | <1 | <1 | <1 | <1 |
Power of Main Motor | KW | 200 | 200 | 280 | 315 | 400 |
Loaded Air Temperature for Kiln | ℃ | <450 | <450 | <450 | <450 | <450 |
Discharged Air Temperature for Kiln | ℃ | 80-95 | 80-95 | 80-95 | 80-95 | 80-95 |
Discharged Air Volume | M3/H | ~40000 | ~45000 | 65000 | 80000 | 100000 |
Weight of Equipments | T | 45 | 52 | 75 | 96 | 100 |

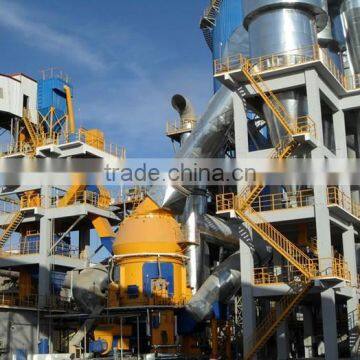

Processing workshop of vertical roller mill:
How about our quality of vertical roller mill?
Our QC will have test for quality guarantee before delivery.
How about the after-sell service of our vertical roller mill?
Our engineers are available to service at the site
We can install & have test-run for our vertical roller mill & we can dispatch engineers to guidance on erection & commissioning.
Warmly welcome to contact us:
Contact: Lydia Wang
Mobile: 0086-15190809819
Skype: lydiawangpf
Company Profile
Jiangsu Pengfei Group Co., Ltd. is a large leading enterprise in building material industry. Our company is a manufacturing and exporting base of cement machinery and equipment. Our company mainly produces comprehensive sets of rotary kilns, ball mills and cement machinery for new type dry process cement plant with capacities of 10,000tpd, 8,000tpd, 5,000tpd, 4,000tpd, 3,000tpd and 2,500tpd, as well as machinery for mining, metallurgy, chemical, electric power and environment protection industries.
Our company pursues high quality and enterprise reputation. We cooperate with various academies from all over the country, and constantly explore and develop new techniques and products. 12 of our products have passed the evaluation of Ministry & Provincial certifications. Furthermore, 6 of our products are awarded an honor of "National New Products" and 5 products have attained the Ministry & Provincial Good Quality Certification, as well as 22 patents, 4 high and new technical certifications. Our company has many kinds of large machining equipment with strong machining capacities of 150,000MT/y to satisfy the requirements of rotary kilns and ball mill below 6 meters. Our equipment includes 8-meter hobbing machines, 8-meter vertical lathes, 5-meter vertical lathes, 6.3m*20m face lathes and 6.5-meter annealing furnaces.
After 40 years' development, our company has formed production service from design, manufacture, installation to debugging. We supply 4.3*64m rotary kilns and 3.8*13m ball mills for Pakistan Lucky Cement Factory, two comprehensive sets of cement production lines for Myanmar Dragon Cement Factory, 5*74m rotary kilns and 3.8m wind swept coal mills of four cement production lines for National Industry Cement Co., Ltd. and Guangdong Taini (Yingde) Cement Co., Ltd, two 4.2*13m ball mills for Inner Mongolia Baotou Steel & Iron Factory and 4.0*60m rotary kilns and 4.6*13m ball mills of 2,500tpd cement production line for Vietnam Caesar Cement Factory. Our products sell well not only all through our country, but also in Russia, Japan, Korea, Southeast Asia, South America and Middle Africa.
Our board chairman and general manager, Mr. Jia'an Wang, warmly welcomes all overseas experts, colleagues and friends to visit our company, and cooperate with us.
