Building construction Suspended Platforms/Cradles
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
- 2016 ZLP800 construction Aluminum Alloy Suspended Platform
- ZLP500 Suspended Rope Platform
- BMU window cleaning cradle for high rise building
- Top Quality Window Glass Cleaning Equipment/BMU(Building Maintenance Unit)
- Window cleaning machine permanent gondola BMU system
- 2016 New Window Cleaning Equipment Glass Cleaning Machine
Product Details
Place of Origin: | Jiangxi, China | Brand Name: | Hollisworth | Model Number: | ZLP500/630/800/1000 |
Product Description

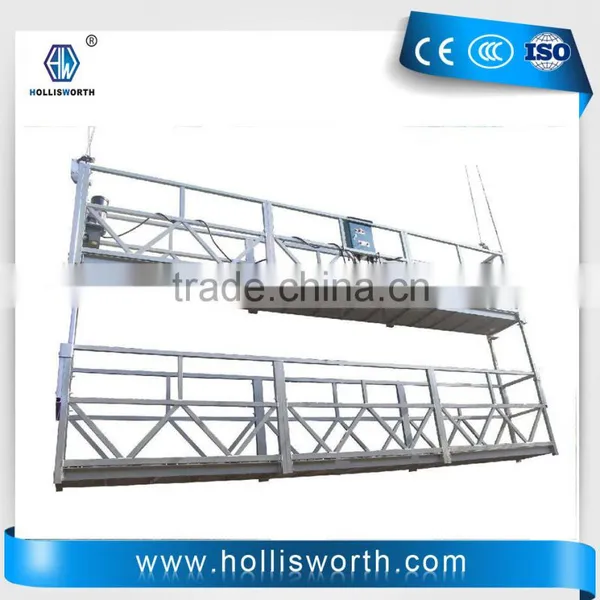

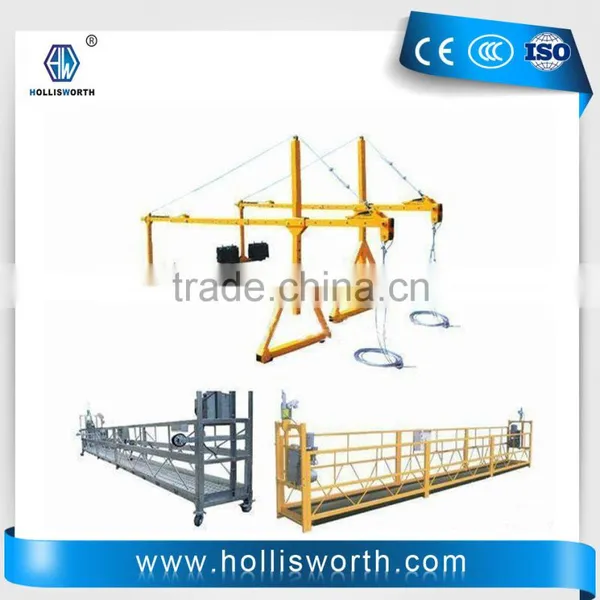

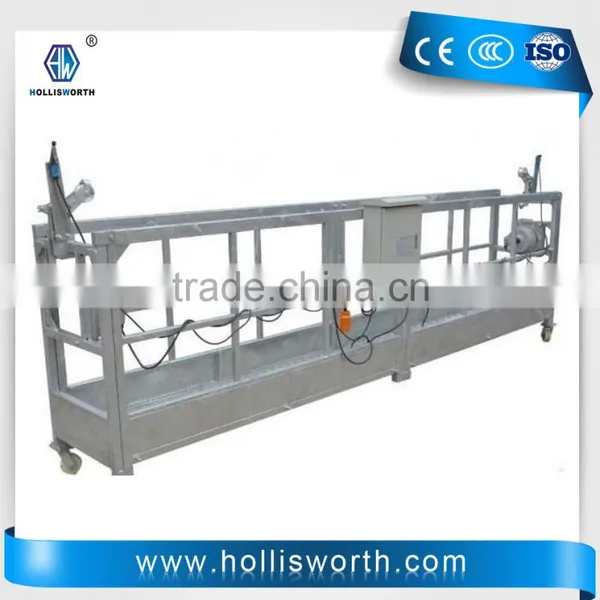

Hollisworth Powered Platform is a substitute of traditional scaffold used for exterior constructi,
decoration, cleaning of high rise building, and is also ideal for applications such as installation
of elevators, the welding of seagoing ship in shipbuilding industry, cleaning of oil based paint,
big size tanks and high chimneys, construction of reservoir dams, inspection, cleaning and
repair of bridges.
Type | ZLP1000 | ZLP800 | ZLP630 | ZLP500 | ZLP250 |
Rated Load | 1000kg | 800kg | 630kg | 500kg | 250kg |
Lifting Speed | 8.7m/min | 9.0m/min | 9.0m/min | 9.0m/min | 9.0m/min |
Voltage-3phase | 380V (415V/220V) | 380V (415V/220V) | 380V (415V/220V) | 380V (415V/220V) | 380V (415V/220V) |
Frequency | 50Hz/ 60Hz | 50Hz/ 60Hz | 50Hz/ 60Hz | 50Hz/ 60Hz | 50Hz/ 60Hz |
Rated Power | 2.0 * 2 | 1.8 * 2 | 1.5 * 2 | 1.1 * 2 | 1.1 * 1 |
Hoist Model | LTD100 | LTD80 | LTD63 | LTD50 | LTD50 |
Safety Lock Model | LSF310 | LSF309 | LSF308 | LSF308 | LSF308 |
Dia. of Wire Rope | 4*31SW+FC-10.2mm | 4*31SW+FC-9.1mm | 4*31SW+FC-8.3mm | 4*31SW+FC-8.3mm | 4*31SW+FC-8.3mm |
Platform Size (L*W*H) | (2.5*3)*0.76*1.45m | (2.5*3)*0.76*1.45m | (2*3)*0.76*1.45m | (2.5*2)*0.76*1.45m | 1.2*0.65*2.3m |
Weight of Suspension Jibs | 340kg | 340kg | 340kg | 340kg | 340kg |
Weight Of Lifting Part | 520kg(Steel) | 520kg(Steel) | 450kg(Steel) | 410kg(Steel) | 200kg(Steel) |
340kg (Aluminum) | 340kg (Aluminum) | 310kg (Aluminum) | 290kg (Aluminum) | 140kg (Aluminum) | |
Counter Weight | 1200kg | 1000kg | 900kg | 800kg | 350kg |
1. What’s the guarantee of your suspended platform?
A: Our guarantee is one year for main parts.
2. What’s your Payment?
A: T/T or L/C at sight.
3. How many sets of suspended platform containers can be loaded?
Type | Container | QTY |
ZLP500 | 20GP | 8 SETS |
40GP | 14 SETS | |
ZLP630 | 20GP | 8 SETS |
40GP | 13 SETS | |
ZLP800 | 20GP | 7 SETS |
40GP | 12 SETS |
JIANGXI HOLLISWORTH MACHINERY & EQUIPMENT CO., LTD. is a professional manufacturer produces various kinds of construction machines. We have advanced technology and rich experience in Building Maintenance Units, Tower Crane, Building Hoist, Powered Platform, Elevator, Scissor lift and other construction machineries. We have already exported to U. A. E., Qatar, Saudi Arabia, Kuwait, Iran, Inida, Russia, Brazil, Australia and many other countries and regions for many years. You can be assured of our high quality, fast delivery time and responsuble after-sale service. We insist in : Quality is First " , We will continously do our best to supply reliable quality products and excellent service to our customers.
