Circurlar Type Fast Thermal Analysis Carbon Cups

Cangzhou Qirun Detecting Instrument Co., Ltd.
Circurlar Type Fast Thermal Analysis Carbon Cups thumbnail-1
Circurlar Type Fast Thermal Analysis Carbon Cups photo-1
US$ 0.4 - 0.8 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
QR
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name QR
Product Description

Hot metal detector sample cup, sample cup irrigated common iron

Product details:

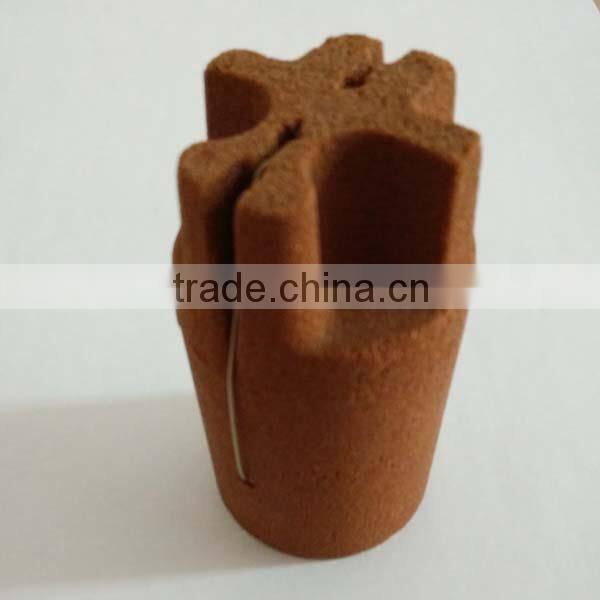

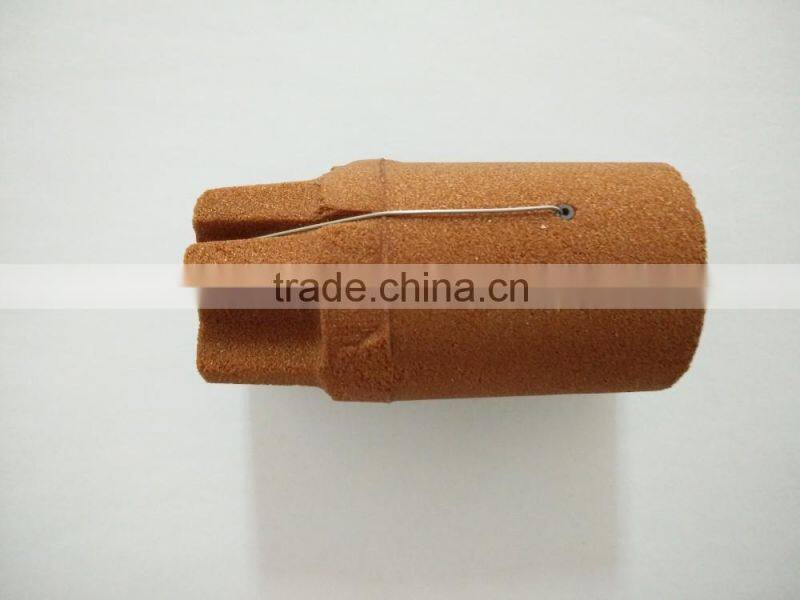

Carbon Cup (also known as thermal analysis sample cup, pour sample cup) it is well-designed sample cup, high-precision thermocouples. Thermal analysis because of its fast, simple, reliable and low cost is widely used in the field of hot metal composition control, when the molten iron is poured into the sample cup, gradually solidified molten iron over time, according to the thermal analysis of the cooling curve of the temperature of the platen, measured and calculated the CEL, C, Si and other ingredients .

Principle:

Liquid iron blast furnace analyzer is my company after years of research to improve the measurement accuracy of the use of higher and more stable management of the latest generation of blast furnace hot metal instrument. Iron Front rapid thermal analysis technique based on the solidification temperature curve Cast Iron formation of the measured object, the solidification temperature curve mathematical analysis, the different components of the characteristic curve point.
 Iron calculated carbon equivalent (CE) carbon content (C%) based on mathematical equations, previously identified, a silicon content of cast iron blast furnace (Si%) and other indicators of rapid analysis techniques, the measurement accuracy can be achieved CE 0.10, C 0.05%, Si 0.10% is a simple cast iron production in blast furnace use, fast, accurate instrument.
 Thermal analyzer were pouring time is about two minutes to complete the detection of hot metal in the waiting time, and then automatically calculate the carbon agent, ferrosilicon, put the amount of scrap iron component is adjusted to obtain a suitable hot metal composition after .
Chinese instrument uses 220 v
Main features:
1.The detection of carbon, silicon,
2. The detection of carbon equivalent
3. The rate of the ball, creep rate determination
4. Tensile strength determination
5. Setting the target material
6. Put the amount is automatically calculated by the amount of carbon agent, ferrosilicon, steel scrap
7. Automatic drawing carbon-silicon, carbon equivalent, primary crystallization temperature eutectic temperature graph, then the printer can print
8. Preservation and reproduction of data
9. Then the printer can print data, copy the picture
10. Celsius / Fahrenheit switching
11. The primary crystallization temperature, measured eutectic temperature

12. Equipped with 20 calibration curve can be set according to each plant molten iron real standard case, the more accurate detection.

Detailed Images

Features:
1. the carbon equivalent CEL
characteristic:
◆ reasonable and reliable sample cup design to ensure correct polarity connectors are connected with thermal analysis;

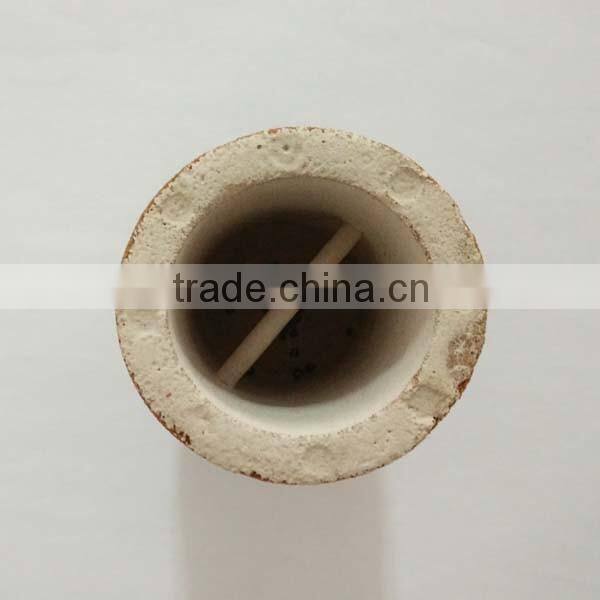

◆ horizontal quartz tube design protection, response is faster;
◆ cast a wide temperature range;
◆ repeatability and stability of the cooling curve;
◆ high success rate measurement.
2. the carbon content C%
It is determined by the temperature of the liquid and the solid phase temperature TL TS these two temperatures.
3. the silicon content Si%
By measuring the temperature of the solid phase, which can calculate the Si, and by an adjustment factor to calibrate the value of silicon, and this factor was related to the carbon in the molten iron.
4. of course, thermal analysis can also apply the following three aspects:
◆ pregnant station controlled by eutectic cold by measuring the degree of control breeding.
◆ by measuring the temperature and liquid subcooling, mechanical and physical properties prediction of molten iron.
◆ Calculation ball rate, based on the relative thermal conductivity principle, can calculate the rate of ductile iron ball of molten iron.
