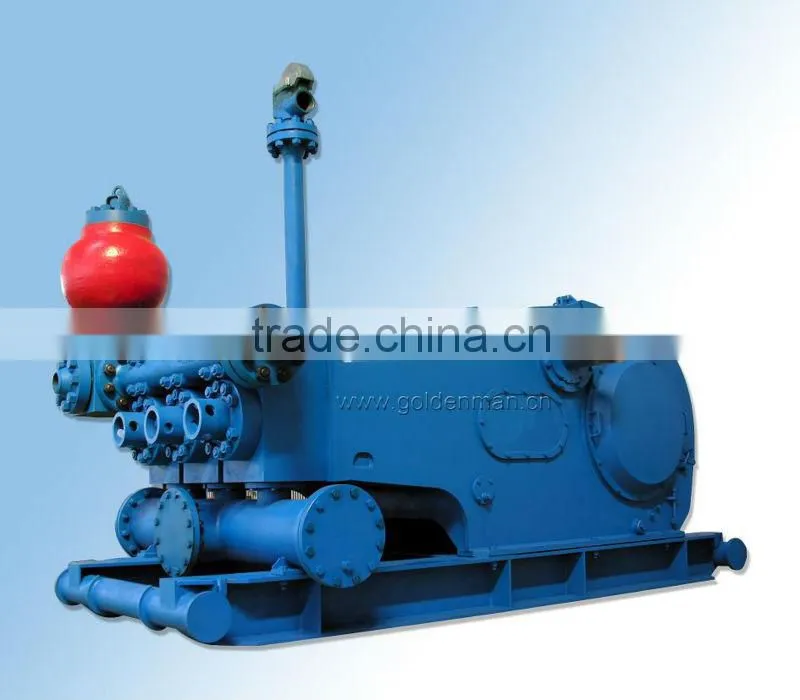

Triplex Drilling Mud Pumps
USD $50,000 - $150,000
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- chinese main port
- T/T
You May Like
Product Details
| Place of Origin: | Shandong, China | Brand Name: | GM | Model Number: | F |
| Type: | Other, Mud pumps | Machine Type: | Drilling Tool | Certification: | API |
| Material: | Carbon Steel | Processing Type: | Forging | Use: | Well Drilling |
Product Description
Specifications
Triplex Drilling Mud Pumps1 designed and manufactured according to API 7K Standard
2 rated power 373kw-1193kw
Detailed introduction of the products:

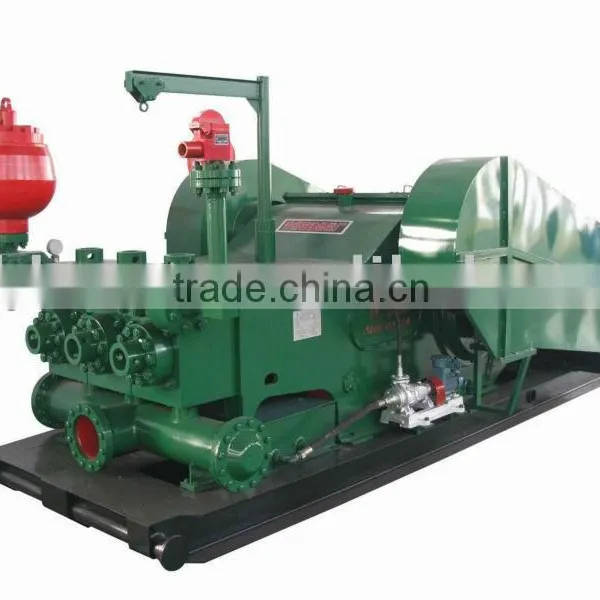

F series mud pump has the excellent operation performance with the firm and compact structure and small volume.It is adopt to the high pumping pressure and large capacity requied by the oilfield drilling.
F series mud pump has a long stroke,so with less stroke rate it's suction efficient and the life of the expendable parts are improved a lot.With the advanced structure the pulsation dampener makes the suction pipe get the most satisfatory buffer effect.
At the power end the F series pump employs the pressure lubrication system and the flash lubrication system.It prolongs the service life of the power end a lot.
F series mud pump parameters
Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 |
Type | Triplex single acting | Triplex single acting | Triplex single acting | Triplex single acting | Triplex single acting |
Rated Power | 373kw 500HP | 596kw 800HP | 735kw 1000HP | 969kw 1300HP | 1193kw 1600HP |
Rated Speed | 165 SPM | 150 SPM | 140 SPM | 120 SPM | 120 SPM |
Stroke(mm/inch) | 190/7 1/2″ | 228.6/9″ | 254/10″ | 305/12″ | 305/12″ |
Max.Liner Dia. | 170/6 3/4″ | 170/6 3/4″ | 170/6 3/4″ | 180/7″ | 180/7″ |
Gear Type | Herringbone | Herringbone | Herringbone | Herringbone | Herringbone |
Valve Pot | API-5 | API-6 | API-6 | API-7 | API-7 |
Gear Ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 | 4.206:1 |
Suction Inlet | 203/8″ | 254/10″ | 305/12″ | 305/12″ | 305/12″ |
Discharge Inlet | 4″Flange 5000 psi | 5″Flange 5000 psi | 5″Flange 5000 psi | 5″Flange 5000 psi | 5″Flange 5000 psi |
Lubrication | Forced& Splash | Forced& Splash | Forced& Splash | Forced& Splash | Forced& Splash |
Max. Pressure | 27.2Mpa 3945 psi | 34.5Mpa 5000 psi | 34.5Mpa 5000 psi | 34.5Mpa 5000 psi | 35Mpa 5080 psi |
Overall Size(in) | 144*106*86 | 156*79*66 | 163*89*70 | 174*121*78 | 181*129*106 |
Weight(kg) | 9770 | 14500 | 18790 | 24572 | 24791 |
