US$ 1,000 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GM, GM
Model Number:
QJ-3
Payment & Shipping
Payment Methods:
Port of Shipment:
main port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
GM, GM
Model Number
QJ-3
Power Source
Pneumatic
Application
Boat
Specifications
1 air winch produced under API Spec 7k2 air pressure: 72-130psi
3 max pull:5-50KN

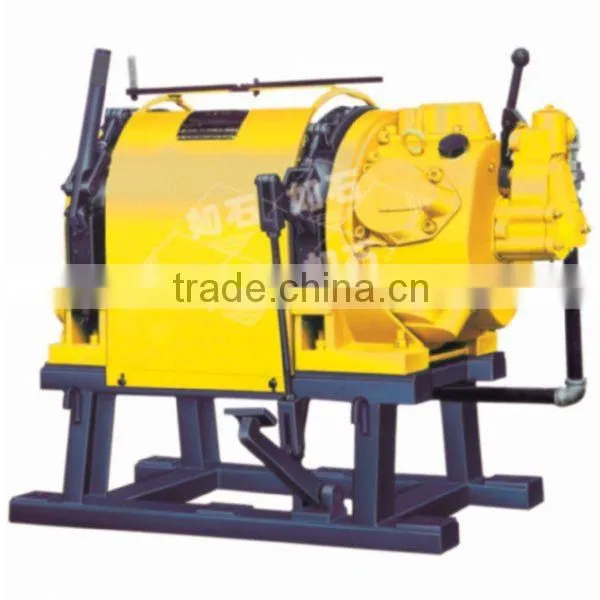

QJ series of air winches
Technical parameters:
Model | QJ-0.5* | QJL-0.5* | QJ-1* | QJ-3 | QJ-5** | |
Air pressure | MPa | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 |
psi | 72-130 | 72-130 | 72-130 | 72-130 | 72-130 | |
Max. pull | kN | 5 | 5 | 10 | 30 | 50 |
US ton | 0.55 | 0.55 | 1.1 | 3.3 | 5.5 | |
Max. rope speed | m/min | 12 | 12 | 24 | 20 | 35 |
ft/min | 39.3 | 39.3 | 78.7 | 65.6 | 114.8 | |
Rope diameter | mm | 8 | 8 | 11 | 15.875 | 15.875 |
in | 5/16 | 5/16 | 7/16 | 5/8 | 5/8 | |
Rope capacity | m | 120 | 40 | 100 | 200 | 70 |
ft | 394 | 131 | 328 | 656 | 230 | |
Overall dimensions | mm | 675*343*460 | 490*295*370 | 740*397*542 | 1530*745*955 | 1254*900*989 |
in | 27*14*18 | 19*12*15 | 29*16*21 | 60*29*38 | 50*36*40 | |
Weight | kg | 117 | 45 | 162 | 685 | 418 |
lb | 228 | 99 | 357 | 1412 | 920 | |
Note: Models marked with * may be connected to Long-distance control device. | ||||||
Model marked with ** may be connected with Auto-brake device. | ||||||
