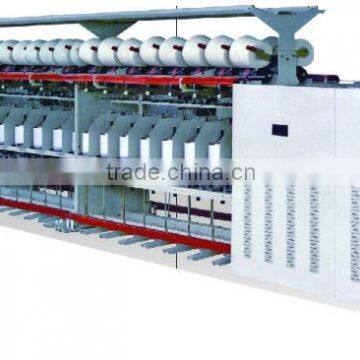

Short Fiber Two-for-one Twister, one turning achieves two twists. Its efficiency is higher than traditional machine in times. Take-up volume increasing, no piecing in ten thousands meter, twisting quality highly improved.
Features
→ Special designed Reversing Device, which fits for twisting both yarns and spandex fibres
→ The stable quality of spindle run long-time even under high-speed operation
→ Double-geared drive device, reasonable force load transmitting, wider twist range
→ Adjustment system through Belt tension, ease operation
→ Pedal brake system, operation easy, extend the life of belt and spindle
→ Winding completed or yarn broken, spindle support lift automatic to avoid yarn grind
→ Oil-bath gearbox and special yarn guide curve, made excellent winding form
→ The take-up tension on the roller can adjust at ease. It is also suit for winding loose packages for dyeing
Form of operation | Double sides, single layer, pneumatic yarn-guide |
Sections | Basic mode 9 sections (max. 10) |
Spindle speed | Standard configure (5000~12000rpm),special requirements could deploy based on technological. |
Twist direction | S or Z |
Twist range | Standard configure(156~2027T/M),special requirements could deploy based on technological. |
Traverse | 152mm |
Angle of taper | 14°47'-21°07' |
Feeding bobbin | Φ37.2×43×170mm |
Loading amount | Max. 2.5kg |
Overall size | 21404×820×1680mm(9sections without upper blower) |
Motor power | 22kw(10 sections for 30kw) |
Start Mode | Star-delta slow start |
Tensioner | capsule |
Spindle driving | belt circulation driving |
Cradle elevating | pneumatic |
If you have another question, pls feel free to contact us as below:
Mandy Liang
Wechat: 18258037991
1.Q: How Many years Guarantee:
A: 12 monthes after the B/L Date.
2. Q: How Many Worker Need for a machine.
A: One Skilled Worker can manage 3 sets machine.
3. Q: Does the machine with Inverter or not.
A: Yes, with Inverter.
4. Q: If you supply the installation Service.
A: Yes, By your requirements, we will send our technician to install the machine for you. but you should bear all the cost.
5.Q: How Many output of the machine per day ?
A: Different size Material Yarn, the output is different.
