1000ft box Lan cable 2 pairs cat5e utp
2 pairs cat5e utp
UTP Cat5e, FTP Cat5e,SFTP Cat5e,Lan Cable,Network Cable
Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high
performance in your Cabling solution, or projec.
1. Certification: CE. RoHS,REACH,ISO Listed
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc
Cat5e Lan Network Cable Construction: 2 pairs cat5e utp
Item | Conductor | Number Of Pairs | Shielding | Drain Wire | O.D. |
Cat5e UTP | 0.51mm BC/CCA | 4 | Non | Non | 5.1mm Jacket ROHS,UV,LSZH,UL,Reach |
Cat5e FTP | 0.51mm BC/CCA | 4 | Aluminum Foil | Yes | 5.8mm ROHS,UV,LSZH,UL,Reach |
Cat65e SFTP | 0.51mm BC/CCA | 4 | Aluminum Foil + Alloy Braiding | Yes | 6.2mmJacket ROHS,UV,LSZH,UL,Reach |
Cat5e UTP Outdoor |
0.51mm
BC/CCA
| 4 | Non | Non | 6.2mm Jacket ROHS,UV,LSZH,UL,Reach |

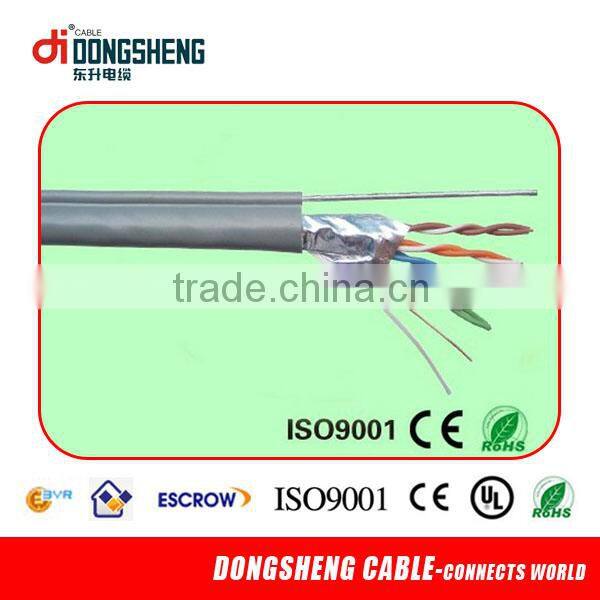

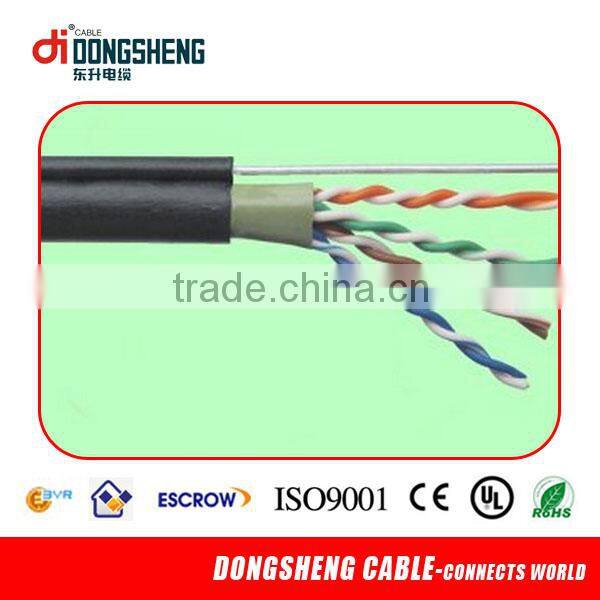

Cat5e FTP Messenger |
0.51mm
BC/CCA
| 4 | Aluminum Foil | Yes | 6.0mm JacketROHS,UV,LSZH,UL,Reach |
Cat5e Network Cable Technical Performance(100m), 2 pairs cat5e utp
| Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | 20.0 | 2.0 | 65.3 | 570 | 63.8 | 62.3 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552 | 51.7 | 53.3 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 543 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 542.05 | 37.7 | 42.8 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 35.8 | 41.3 | 32.8 |
| 31.25 | 23.6 | 11.6 | 42.9 | 540.44 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 537.6 | 23.8 | 32.3 | 20.8 |
Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission

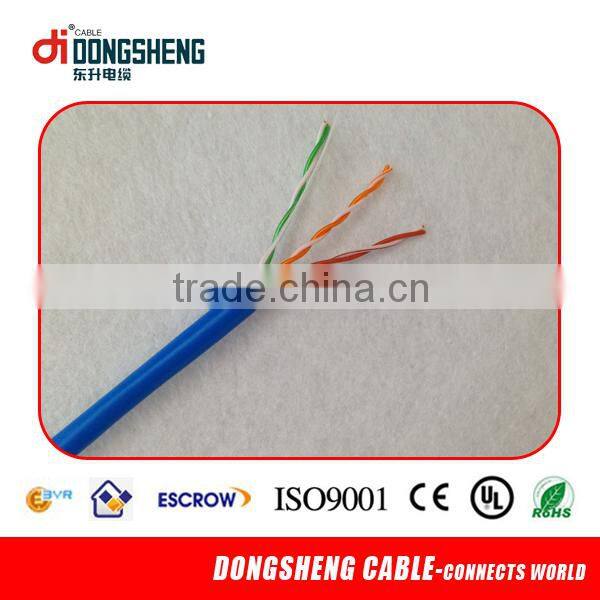

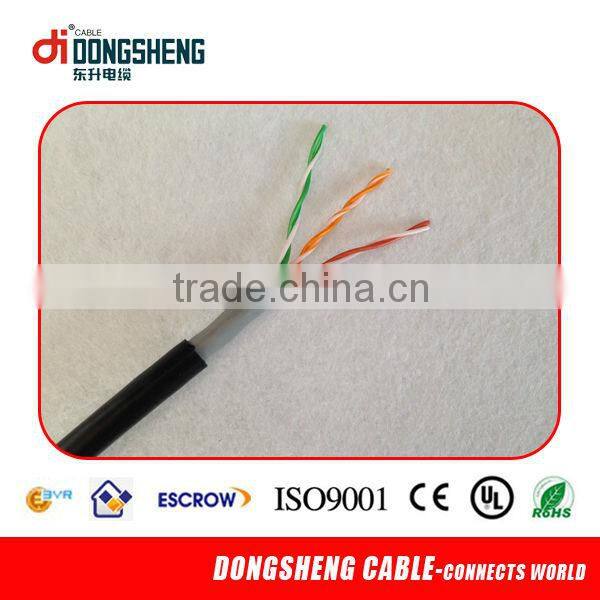

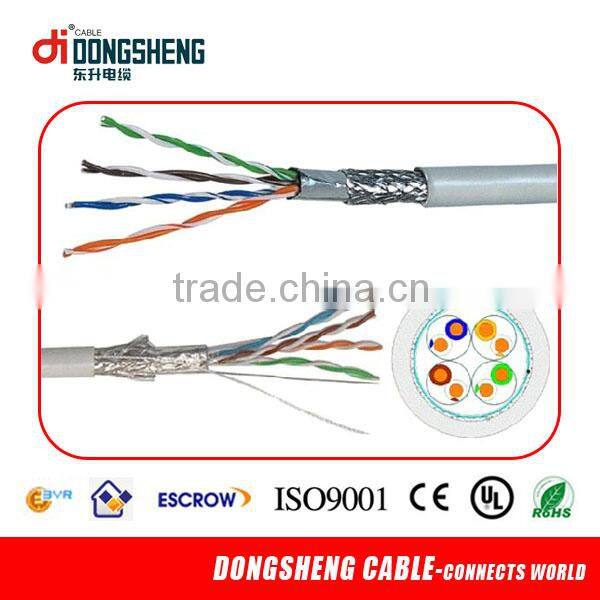

Picture and Package -2 pairs cat5e utp

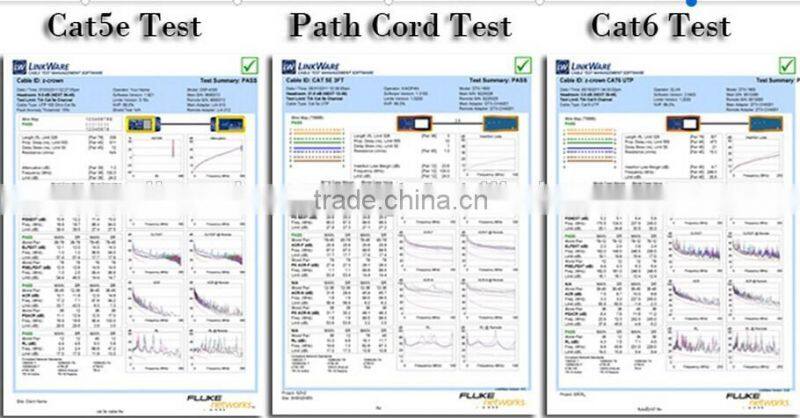

Cat5e Test Report

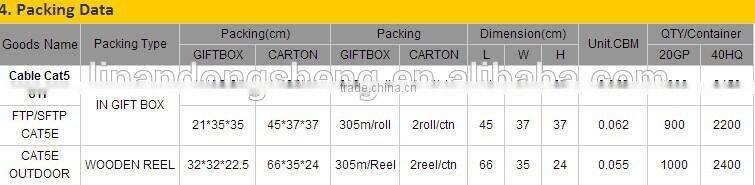

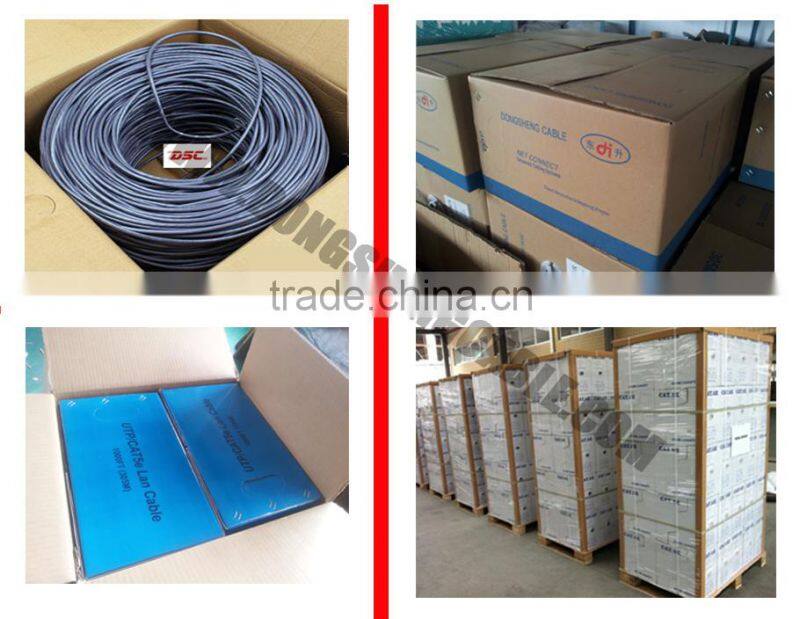

Packing:

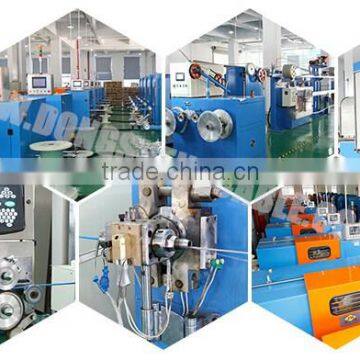

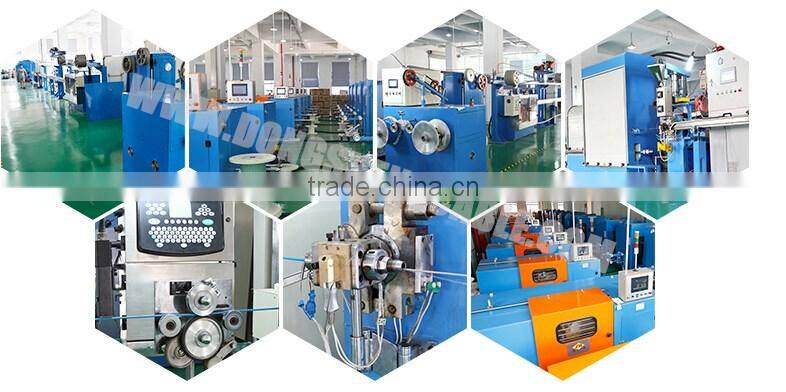

Factory Show
Products Certifications
Testing Equipment
Exhibition
Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna
