Brazil Market 75 ohm Cabos Coaxial RG59+2C

Specifications

1) Brazil Market 75 ohm Cabos Coaxial RG59+2C
2) Since 1991
3) Application for CCTV System
4) CE , ISO, ROHS

Brazil  Market 75 ohm Cabos Coaxial RG59+2C



75 ohm Cabos Coaxial RG59+2C



Semi Finished Cabo Coaxial RG6, RG11, RG59, RF 4mm  Prodcut Specification



1) Semi Finished Cabo Coaxial RG59 95%
0.81mmCCS/Cu+3.7mmFPE+Al Foil+95% Al Braid
Package:5000m/wooden drum



2) Semi Finished Cabo Coaxial RG6 67%
1.02mm BC+4.57mmFPE+Al Foil+67% Al Braid
Package:4000m/wooden drum



3) Semi Finished Cabo Coaxial RG6 95%
1.02mmCCS/Cu +4.57mm PE Foam+ Al Foil+95% Al Braiding
Package:4000m/wooden drum



4) Semi Finished Cabo Coaxial RG11 90%
1.63mm CCS/Cu +7.11mmFPE+ Al Foil+90% Al Braiding
Package:1810m/wooden drum



5) Semi Finished Cabo Coaxial RF 4mm
7*0.18 mm CCA/Cu+2.4mm SPE +16*4*0.12mm80% CCA
Package:6000m/wooden drum

Finished Cabo Coaxial RG59,RG6, RG11, RF 4mm
Specification
1) Cabo Coaxial RG59 67%
0.81mmCCS/Cu+3.7mmFPE+Al Foil+67% Al +6.0PVC



2) Cabo Coaxial RG6 67%
1.02mm BC+4.57mmFPE+Al Foil+67% Al +6.90PVC



3) Cabo Coaxial RG6 95%
1.02mmCCS/Cu +4.57mm PE Foam+ Al Foil+90% Braiding+6.8mm PVC Jacket



4)Cabo Coaxial RG6 95% with messenger cable
1.02mmCCS/Cu +4.57mm PE Foam+ Al Foil+90% Braiding+6.8mm PVC Jacket+1.3Steel Messenger



5) Cabo Coaxial RG11
1.63mm CCS/Cu +7.11mmFPE+ Al Foil+90% Al Braiding+10.0mm PVC Jacket



6) Cabo Coaxial RG11 With Steel Messenger
1.63mm CCS/Cu +7.11mmFPE+ Al Foil+90% Al Braiding+10.0mm PVC Jacket+1.83mm Steel Messenger



4) Customers' specifications are welcomed.



Packing:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/drum, 100yard/roll, 200yard/roll, 300yard/roll.
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

5) With wooden drum: 4830m/wooden drum, 4000m/wooden drum,5000m/wooden drum,1810m/wooden drum

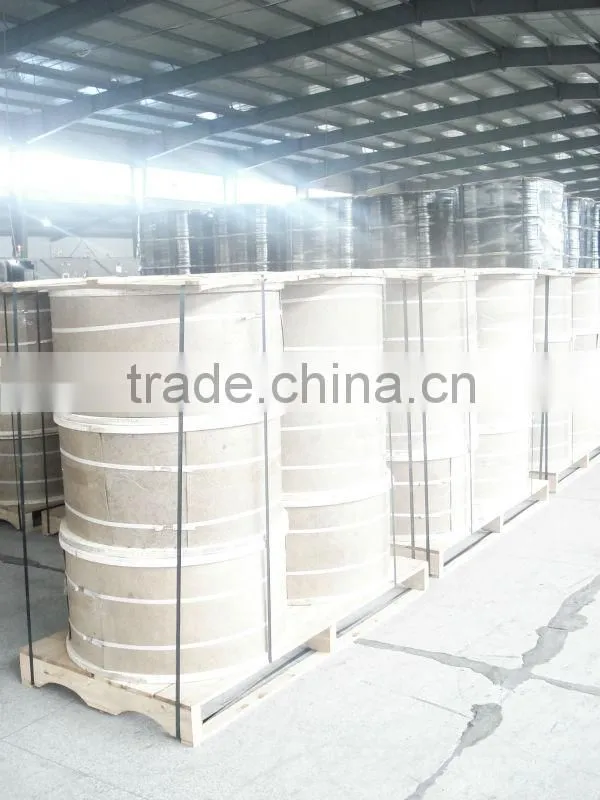

Products Photos:
