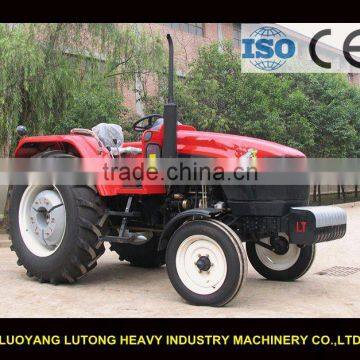

LUTONG850 85hp 2WD wheel-style tractor

Specifications

LUTONG850 85hp 2WD wheel-style tractor
fessional factory
2.ISO9001:2000

LUTONG800/804,LUTONG850/854,LUTONG900/904,LUTONG1000/1004 wheel-style tractors,which are more advanced than the same type of machines in china,which are developed by LUO YANG LU TONG Agricultural Equipment Limited.



Main features:

 1.Adopt Dongfanghong diesel engines.better reliability,more back coefficient for torsion.

 2.clutch with independent operation double actions.

 3.Gear-box shows 4X(2+1),namely 8 forwards,4 returns,if choosing climbing shift,then 16 forwards,8 returns,shift in mesh;

 4.Driving force output device with postposition,peaceful and stable transmission,stronger bear the weight of loading.

 5.Adopt front-wheel turning with full liquid-pressure and independent oil way,turn agilely,reliably,power-saving;

 6.Adopt static hydraulic tray-style arrester,stronger brake moment,reliable brake;

 7.Adopt strong pressure lifter,independent oil supply,system performance reliable;multi-liquid output optional

 8.The final driving is planet-gear style,smaller volume,bigger decelerating ratio;

 9.Installed adjustable chair with elasticity and shock absorption,comfortable driving.

 10.The whole tractor is beautiful,taste,modern,fashion.



Main technical parameters:

Model		800		850
Overall dimension(LxWxH)		4080x2038x2810		4080x2038x2810
Wheelbase(mm)		2195		2195
Front-wheel tread(mm)		1385~1685		1385~1685
Rear-wheel tread(mm)		1620~2020		1620~2020
Min. Ground clearance(mm)		470		470
Min. Turning radius(m)(not apply the brake with single side)		4.0±0.2		4.0±0.2
Gear(front/rear)		16/8		16/8
engine	Model	LR4B5-23		LR4B5-23
	type	In-line,water-cooling,four stroke,direct injection,NA
	power	59	62.5
	Rotating speed	2300	2300
Specific fuel consumption(g/kW·h)		≤242	≤242
Tire size(front/rear)		6.50-20/16.9-34	6.50-20/16.9-34
Hydraulic lift capacity(kN) 610mm from suspension point		14.2	15
Driving output axis type		Postposition,independent
Driving output axis  turning speed(r/min)		760/1000,540/1000,540/760optional
