4G LTE 698-2700mhz wall mount antenna/high gain 8dBi panel antenna/Wireless omni directional flat patch antenna SDWM4
USD $1.00 - $3.00
/ Piece
1 Piece(Min.Order)
- 10000000 Piece / Pieces per Month
- XIAMEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
4G LTE antenna,4G antenna with 698-2700MHz
-
800-2700Mhz multi-band Omni Base Station Antenna/Spring mount base station Antenna with FME Connector
-
Antenna pigtail coaxial cable RG316with PL259 to N FEMALE
-
RG58 coaxial cable with pigtail extension SMA connector to UHF SO239 PL259
-
pigtail extension cable with SMA FEMALE connector to UFL connector
-
Cavicity 800-2500mhz wide band frequency range N type connecotr 2/3/4 ways power splitter/divider
Product Details
| Place of Origin | Fujian, China | Brand Name | SD wall mount panel antenna | |
| Model Number | SDWM4 wall mount panel antenna |
Product Description
Product Description

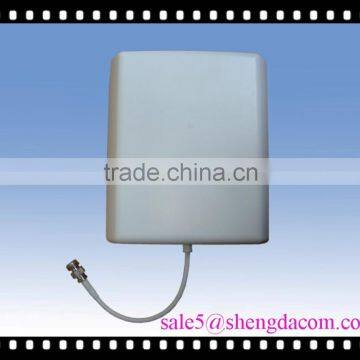

4G LTE 698-2700mhz wall mount antenna/high gain 8dBi panel antenna/Wireless omni directional flat patch antenna SDWM4.
Electrical specifications | |
Frequency Range(MHz) | 800-2500 |
Polarization | Vertical |
Gain (dBi) | 8 |
Half-power beam width (°) | Horz:65 Ver:55 |
Front-to-back ratio (dB) | ≥15 |
VSWR | ≤1.5 |
Maximum input power (W) | 100 |
Mechanical specifications | |
Connector | N-Female With Cable of 300mm length |
Connector position | Bottom |
Height×width×depth (mm) | 210×180×44 |
Packing size (mm) | 250×210×55 |
Antenna weight (kg)(with installation kit) | 0.65 |
Packing weight (kg) | 1.2 |
Reflector material | Aluminum Alloy |
Radome material | ABS |
Radome color | white |
Operating temperature (℃) | -40~60 |
Mounting hardware (mm) | Mounting on the wall |
other similar wall mount panel antennas you can choose:
Packaging & Shipping
| MOQ | 1 piece (small or trial order), 100pcs for bulk order |
| Packaging | ShengDa Standard Package |
| Loading Port | XIAMEN |
| Delivery Date | Within 3 days after payment confirmed |
| Express Delivery | DHL/UPS/FEDEX/EMS/TNT |
| Terms of Payment | T/T, Western Union, Paypal |
Our Services
1.17 years experience .Shengda communication Ltd.,which mainly produce mobile antenna, Hand held antenna and marine antenna, base station antenna,yagi antenna products.
2. Our sales will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
