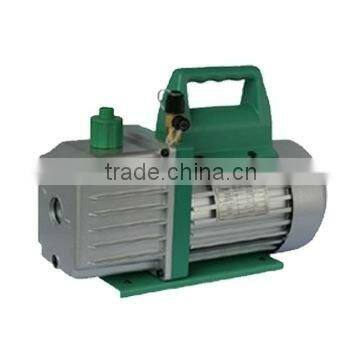

Two Stage Rotary Vane 1/2HP 4.5CFM/5CFM Double Stage Vacuum Pump for Refrigerating System VP245

Voltage

220V/50HZ

110V/60HZ

Free Air Displacement

4.5 CFM

5 CFM

128 L/min

142 L/min

Ultimate Vacuum

3 x 10^-1 Pa

25 Microns

Motor

1/2 HP

Stage

2

Intake Fitting

1/4SAE

3/8SAE

Oil Capacity

350 ml

Dimension

320 x 134 x 232 mm

Net Weight

11.8 kg

Model

VP215

VP225

VP235

VP245

VP260

VP280

VP2100

Flow Rate (cfm)

220V~/50Hz

1.5CFM

42L/min

2.5CFM

70L/min

3.5CFM

100L/min

4.5CFM

128L/min

6CFM

170L/min

8CFM

226L/min

10CFM

283L/min

115V~/60Hz

1.8CFM

50L/min

3CFM

84L/min

4CFM

114L/min

5CFM

142L/min

7CFM

198L/min

9CFM

254L/min

12 CFM

340 L/min

Actual Ultimate Vacuum

3Pa

25Microns

3Pa

25Microns

3Pa

25Microns

3Pa

25Microns

3Pa

25Microns

3Pa

25Microns

3Pa

25Microns

Power(HP)

1/4

1/3

1/3

1/2

3/4

1

1

Motor speed

(r / min)

220V~/50Hz

2800

2800

1400

2800

1400

1400

1400

115V~/60Hz

3400

3400

1700

3400

1700

1700

1700

Inlet Port (optional)

1/4 SAE

1/4 SAE

1/4 SAE

1/4 SAE

3/8 SAE

3/8 SAE

3/8 SAE

Oil Capacity (ml)

180

280

360

350

700

600

600

Dimensions (mm)

270x119x216

278x119x216

320x134x232

320x134x232

370x140x252

370x140x252

390x140x252

Weight(kg)

6

7

11

11.8

15

15.5

16
