Compact Mini Green Laser Diode Module
- 100000 Piece / Pieces per Month
- Xi`An
- Credit Card
-
520nm 1 mw green laser module with compact size
-
compact size 520nm 1 mw green laser module
-
High stability laser module 1W TEC Control Power laser
-
high reliable 520nm 1 mw green laser module wide work temperature
-
High stability 5mw to 50mw dot and line 520nm Power laser
-
low consumption 520nm 1 mw green laser Module
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | Elite | Model Number: | VB520D05VG1 |
Type: | Laser Diode |
Packaging Details

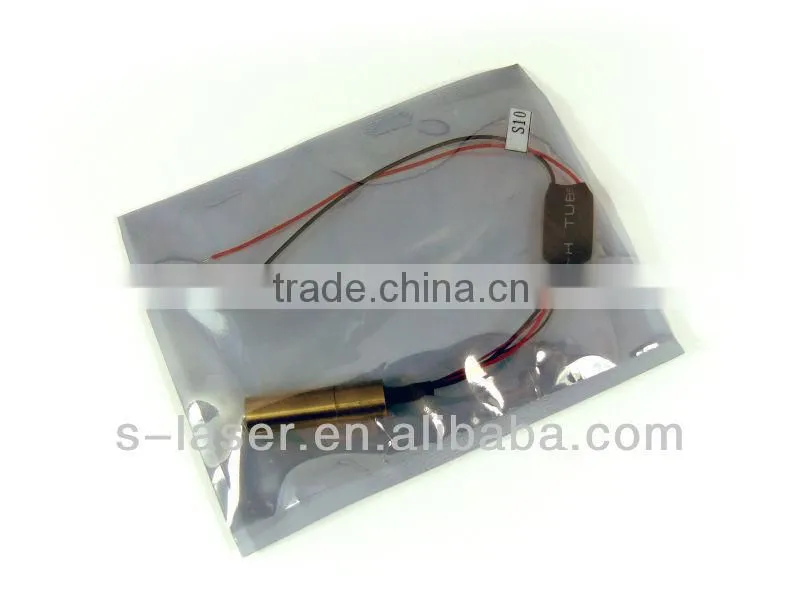

1 PE Bag Packing 2 Blister Packing 3 Iron box Packing 4 Fabric bag Packing
Product Description
Specifications
11 years experienceFDA IEC SGS ISO9001-2008
Wide temperature range -10C ~ 50C
green laser
High Reliable
Product details:
Wavelength:520 nm
High brightness, optical output power: <5.0 mW
Low operating current: <180mA
Low operating voltage: 3VDC
Class IIIa laser, CDRH/ROHS compatible
Static, Surge, and Reverse Polarity Protected
Circuit control: Auto power control (APC)
Operating Temperature: -10 to 50°C
Optical and Electrical Characteristics
Parameter | Specifications. | Test Conditions |
Wavelength | 520 nm | Tc = 25°C |
Output Power | 4 ± 0.8mw | Tc = 25°C |
Laser Modes | CW |
|
Transverse mode | TEM00 |
|
Output Aperture | < 1.5 mm | Factory fixed |
Beam Size | < 8 mm | Factory fixed @ 10m |
Divergence | < 0.8 mrad | Tc = 25 ±3°C |
Stability | > 80 % |
|
Operating Current | < 180 mA | Tc = 25±3°C |
Operating Voltage | 3 VDC |
|
Operating Temp. | 0°C ~ 45°C |
|
Storage Temp. | -20°C ~ 70°C |
|
Optics | Glass Lens |
|
CDRH Class | Class IIIa |
|
MTTF | 8000 Hrs. | Tc = 25±3°C |
Processing contol plan being followed strickly,
and the passed Certifications could be found below:
Customer Concerns:
The Coming Trade Shows which we`ll attend in,
Services Cycle:
laser beam expander
Company Profile
![](http://res.goldsupplier.com/3/1_722_22292_800_600.jpg)
Elite Optoelectronics Co., LTD, established in 2003, is a professional company specialized in developing and manufacturing laser modules and optoelectronic products. Our major products cover laser diode modules, DPSS laser and laser instruments which have been successfully applied in a wide range of diversified applications such as military sight collimating, material processing, scientific and laboratory medical and cosmetic usage, etc.
Located in Xi An Hi-Tech zone, our R&D staffs have abundant access to latest technology support from Institute and Universities. With our talented, young and creative engineers, ODM is our strong ability to cooperate with customer developing customized modules both for laser products and customer solutions.
Elite offer high quality OEM laser diode modules with emissions from 405 nm - 980 nm, visible up to 1000 mW and 780 nm - 980 nm, up to 10 W in the near infrared region.
With certificates of ISO 9001:2000, FDA, IEC, GB, etc, we are assuring our customer with quality, reliable and consistent products deliver. Quality products, excellent service, reasonable price and timely delivery make our international market expanding rapidly.
Elite Optoelectronics Co., LTD is looking forward to establishing great business relationship with customers internationally and domestically. We are only a click away; please do not hesitate to contact us for further information.
Contact Us
- Elite Optoelectronics Co., Ltd.
- Contact nameYanLin Woo
- Phone0086-29-68590616-801
- Address3-10502, East Area, Modern Business Center, Zhangbawu Rd.
-
