Sino corrugated cardboard maker Q1-Flexo Printer Slotter Die-Cutter with Auto Stacker

FOB Price

USD $150,000 - $300,000 / Set

1 Set(Min.Order)

Supply Ability 3 Set / Sets per Month
Port GUANGZHOU OR SHENZHEN
Payment Terms:T/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type:

Automactic Carton Box Printing Machine

Product Description

CLC-Q1-0920/1224/1424-4SD China Top Sale Automatic Flexo Printer Slotter Die-cutter & Auto Hydraulic Stacker, Corrugated Carton Box Making Machines, Case Maker, from GUANGZHOU CLC PACKAGING&CARTON MACHINERY CO., LTD, Exported to Asia (Malaysia, Thailand), Middle East (Jordan, Saudi Arabia), Russia, Africa (South Africa, Mali, Guinea), South America, Mexico, USA & etc...

Product Description

♦ Function

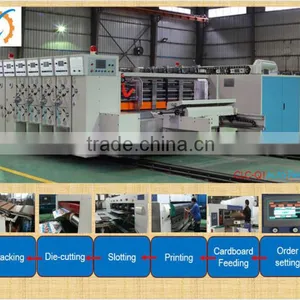

Automatic Flexo Printer Slotter Die-cutter With Stacker is used to make complete corrugated cartons automatcally, this machine can finish Feeding, Printing, Slotting or Die-cutting,stacking at one time, this machine can greatly improve the working efficiency, reduce cardboard wastage, labor cost, and increase the benefits of manufacturers.

♦ Features

1. The machine adopted touch screen at each unit of machine that could be adjusted automatically . It will cut lots of time while operating. Each unit is inter-connected by PLC, and date setting in touch screen is able to order the specific action. Easy-view and conveniently adjustable is available.

2. 220 sheets per minute when runs at the top speed. It could be efficient to produce one hundred thousand pieces of carton of daily productivity.

3. It can connect with Auto Pre-Feeder Equipment or Auto Strapping Machine, 3-5 workers for whole production line is available.

4. Adopts excellent materials and parts. All the rollers are chrome plated and harden treated; all the gears are ground by Germany High-precise gear grinding machine, the precision grade up to 6.5; all the bearings adopts JAPAN NSK/NTN/IKO.

5. All the motors & electric parts adopts international brands, such as HL, CPG, EMERSON, SCHNEIDER, OMRON and etc...

♦ Technical Parameters

Model Technical date (MM)				CLC-Q1-0920	CLC-Q1-1224	CLC-Q1-1424
Sheet Length (A)	Max. Size			2200	2400	2600
Sheet Length (A)	Min. Size			700	720	720
Sheet Width (F)	Continuous Feed			900	1200	1380
	Skip Feed			1200	1400	1600
	Min. Width			280	350	400
Max. Printing area (FxA)				900x2000	1160x2400	1320x2400
Slotting Space	Reverse knife		Max. size(B)	900	1100	1100
			Min. size(B)	250	260	280
			Max. size(C)	750	950	950
			Min. size(C)	100	100	100
	Normal knife		Max. size	850	1040	1040
	Normal knife		Min. size	150	160	160
Slot Depth		Max. Size		250	320	450
Box Height (E)		Min. Size		110	110	160
Max. Die-cutting Area				850x1950	1150x2350	1280x2350
Working Speed		Top mechanical speed ( pcs/min.)		220	200	180
Working Speed		Standard Producing speed ( pcs/min.)		150-200	120-180	100-150
Thickness of Paperboard				2-11	2-11	2-11
Thickness of Printing plate				7.2	7.2	7.2

CLC-Q1 Serials Each Unit Discreption:

Feeding Unit

The standard feature is Mechanical Lead edge feeder. Back kicker is optional.
Integrated computer and Main control panel available in the feeding unit.
Dust brusher.
Feeding gaps is manual adjusted with self-lock, and side guide, back stop is motorized.
Units opening & closing is motorized and pneumatically locked. And can be auto ZERO.

Printing Unit

Rubber Roller for inking.
Roll-To-Roll transfer.
Steel anilox roller or Ceramic anilox roller is optional.
Printing PHASE is motorized with digital display, auto ZERO and auto RESET. Transversal position is motorized with digital display.
Inking Roller, Lower pressure Roller, Pull Roll is manual adjusted with self-lock.
Brake function is available when machine separating.

Slotting Unit

Four shaft rotation: Creaser- Slotter, The shafts were precisely dual-ground.
Single–Shaft slotting is adopted, with precise alignment of front and back knife.
Transversal position of knife holder, Box height and PHASE is motorized with digital display.
Feeding gaps is manual adjusted with self-lock.
Auto ZERO is available.
Middle slotting knife is fixed.

Die cutting unit

Shaft-head was treated with lock structure, not welding, given strong capacity of bearing pressure.
Hardened steel cover with pneumatic-lock cylinder set at upper roller can hence durability of using.
Mechanical differential structure is applied for the adjustment of transverse register. The adjustment range is ±30mm.
Adopts mechanical line speed compensating system, which min. the error of die cutting.
PHASE, Transversal position is motorized and feeding gaps is manual adjusted with self-lock.
The gap of die-cut cylinder is motorized with digital display.

§ Following items can be Featured as customers requests:

√ Back Kick Feeder

√ Ceramic anilox roller

Packaging & Shipping

♦ Packaging:

The machine will be saperated in to each unit, and each unit will be packed independently with iron base, cardboard, and bopp film, and will be fixed well inthe container.

♦ Shipping:

A good & fast shipping company will choose by us to make sure less troubles during delivery, or customer can indicated which shipping company he prefer.

Our Services

♦ Before Sales Service:

1. We will study and reply your Inquiries, Email or Messages within 24hours; Will provided you with pressional suggestions.

2. Will guide you to visit some of our customer's factory to checking our machine working conditions.

3. Will meeting with Both Electric and Mechnical Engineer for professional expleination of our machines, any questions will be answered by them.

4. Customer factory reference is avilable if we have customer in your region.

♦ After Place Order:

1. Will offer fundation drawing, and other necessary documents once received the deposit from customer.

2. Will follow with manufacturing day by day, and send your machine pictures during assemble regularly.

♦ Delivery the machine:

1. Will delivery the machine on time, and choose the good shipping company to avoid unnecessary troubles.

2. Will supply all the documents for custom clearance, our company CLC Machinery have ability for exporting and importing.

3. Will follow with customer for custom clearance in case any support needed.

♦ After Delivery (After Sales Service):

1. Will dispatch our Engineer for Installation & Training for 15 days for Flexo printer machine.

2. Will delivery some Quickly Consumble Parts when delivery the machine.

3. If any problem happened during machine working, once received customer's email, will reply it within 1hour to check details problems, and will teach customer how to solve this problem within 24hours; if any spare parts or damaged parts needed for this machine, will send it within 24hours in we have in stock, if not will send it within 3days.

4. Quality Warranty: One years. Consumable parts excluded. CLC will provide its whole life service for our valuable customers.
