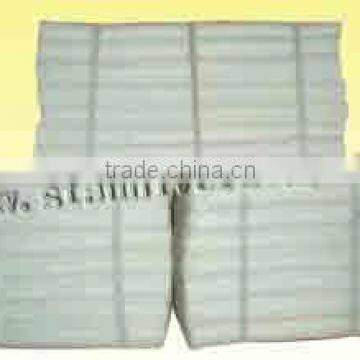

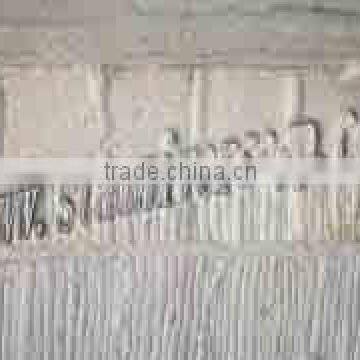

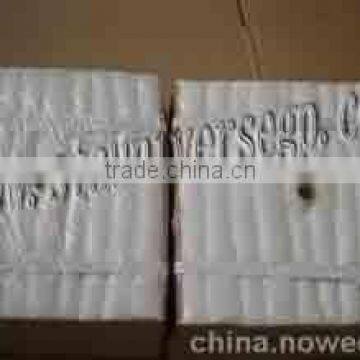

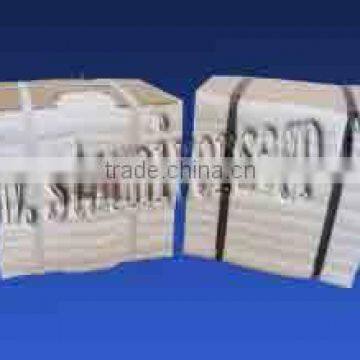

STA Hot Sale 1260C Ceramic Fiber Insulation Module for Furnace With Low Price

STA Hot Sale 1260C Ceramic Fiber Insulation Module for Furnace With Low Price photo-1
STA Hot Sale 1260C Ceramic Fiber Insulation Module for Furnace With Low Price photo-2
STA Hot Sale 1260C Ceramic Fiber Insulation Module for Furnace With Low Price photo-3
STA Hot Sale 1260C Ceramic Fiber Insulation Module for Furnace With Low Price photo-4
STA Hot Sale 1260C Ceramic Fiber Insulation Module for Furnace With Low Price photo-5
STA Hot Sale 1260C Ceramic Fiber Insulation Module for Furnace With Low Price photo-6
US$ 0.7 - 2.66 MOQ: 10 Kilograms
Key Specifications
Get Latest Price
Grade:
HP (High Pure), 1260Standard
Application:
Refractory
Thickness:
10-50mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Application Refractory
Thickness 10-50mm
Width 610/1220mm
Length 3600/7200/14640mm
Chemical Composition Al2O3:47-49%
Working Temperature 1100C
Fiber Diameter 3-5um
Shrinkage (1800 ℉, 3h) 3 (hours)
Thermal Conductivity 0.09-0.16
Model Number STA-CRM015
Brand Name STA
Place of Origin Henan, China

            STA-CRM015 High temp 1260C with ceramic fiber modules

 Product Introduction:

Aluminum silicate ceramic fiber module is manufactured from aluminum silicate fiber bulk spinning from kaolinite, alumina silicon dioxide and zircon sand, which been series processing of needling ,cutting and rollings, including 1260°C Standard, 1260°C High pure, 1360°C High Aluminum, 1430°C Zirconium ceramic fiber blanket.



The ceramic fiber blanket with the advantage of uniform quality, smoothly surface ,pure white color, completely inorganic ,good tensile strength, toughness and fiber structure, so there are no flames when heating for the first time , The working temperature ranges from 950°C to 1430 °C.

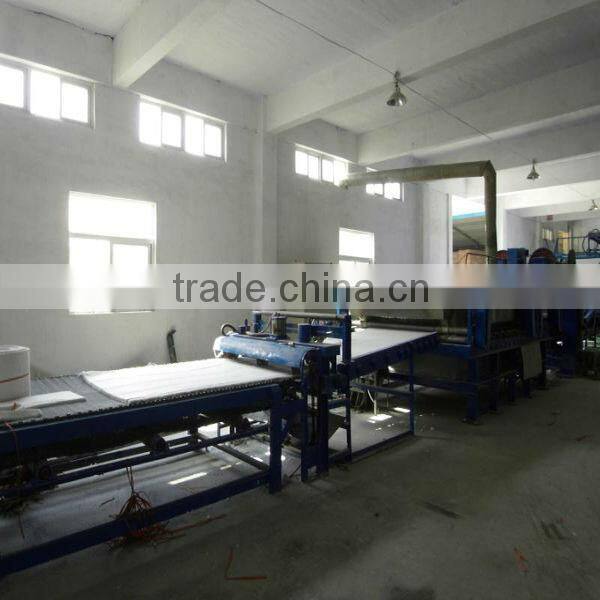

The production process is melting raw materials into liquid with an electric current power , unaffected by most chemicals(except hydrofluoric&acids and concentrated alkalic) , the dust and waste residue are cleaned by dirt catcher.



Now we have got approval of ISO9001:2000,and got many certificates like CE ,SASO,SGS and so on ,our insulation products have been selling to Germany ,UK, Italy, USA, Australia, Japan, Koran ,Turkey ,Israel, UAE ,Saudi Arabia, India ,Sweden ,Poland ,Argentina, Malaysia ,Philippines and other 30 countries.



Applications

1)Joint sealing and filling insulation (kiln car, pipeline, kiln door and so on)

2)Fiber composite (for example: grinding parcel)

3)Internal and external lining for industrial furnace

4)Structure refractory and sponging sounds

5)Materials for hot filtration

6)Raw materials for further producing

7)Technical Specifications



Product Feature:

 Product category

conventional type

standard type

High Purity type

High-alumina type

Zirconia contenting type

Category temperature (°C)

1100

1260

1260

1360

1430

Operating Temperature(°C)

<1000

1050

1100

1200

1350

      Color

white

spotlessly white

spotlessly white

spotlessly white

spotlessly white

volume concentration (kg/m3)

96
128

96
128

96
128

128
160

128
160

permanent linear shrinkage rate (%)(Insulation 24 hours,volume concentration 128/m3 )

-4
(1000°C)

-3
(1000°C)

-3
(1100°C)

-3
(1250°C)

-3
(1350°C)

The hot surface temperature thermal conductivity (w/m.k) volume concentration 128kg/m3 128kg/m3)

0.09(400°C)
0.176(800°C)

0.09(400°C)
0.176(800°C)

0.09(400°C)
0.176(800°C)
0.22(1000°C)

0.132(600°C)
0.22(1000°C)

0.76(600°C)
0.22(1000°C)

tensile strength (MPa)
(volume concentration 128kg/m3

0.08-0.12

0.08-0.12

0.08-0.12

0.08-0.12

0.08-0.12

elemental composition
(%)

AL2O3

44

46

47--49

52-55

39-40

AL203+SIO2

96

97

99

99

-

AL2O3+SIO2+Zro2

-

-

-

-

99

Zro2

-

-

-

-

15-17

Fe2O3

<1.2

<1.0

0.2

0.2

0.2

Na2O+K2O

≤0.5

≤0.5

0.2

0.2

0.2

Products size (mm)

Common Specifications7200×610×10-50Other specifications on request made



 STA hot sale 1260C ceramic fiber insulation module for furnace with low price



STA hot sale 1260C ceramic fiber insulation module for furnace with low priceSTA hot sale 1260C ceramic fiber insulation module for furnace with low price
