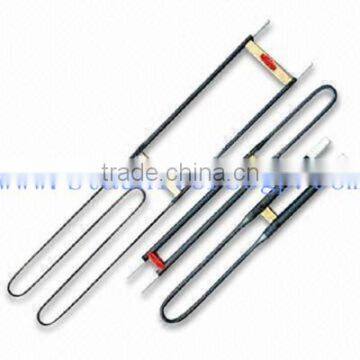

Molybdenum Disilicide Heating Element MOSI2 heater

  ducts introduction :

 Molybdenum disilicide (MoSi2) heating element is a resistance generate-heating component made from MoSi2 or the basic material. It is used in high temperature under the oxidizing atmosphere, it looks like glass in its surface and form a light SiO2 glass film which can protect the element not to be oxidized. So this kind of element has unique effect for resisting oxidization in the high temperature. It is used to the highest temperature up to 1800C during oxidizing atmosphere.

  MoSi2 heater ( can usually make use of furnace temperature from 1300C to 1800C. It is extensively used in the industries of metallurgy, glass, ceramic refractory, crystal electronic device, industrial furnace manufacture, etc...It is an essential ideal element when the products are sintering in the high temperature.

Order sample:
D1=6mm, D2=12mm, Le=200mm, Lu=180mm, a=30mm
Please specify as: Dia6/12x200x180x30mm (dia d/cxLexLuxa mm)
D1 = the diameter of hot zone
D2 = the diameter of cold zone
Le = the length of hot zone
Lu = the length of cold zone

Standard sizes:
M1700 type (d/c): Dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): Dia3/6, dia4/9, dia6/12, dia9/18, dia12/24

2.the technical data :

It can be widely used in such applications as sintering and heat treatment on ceramics, magnet, glass, metallurgy, refractory, etc.

4.Notice to Furnace Operation:

To avoid high current surges may cause damage to MoSi2 heating elements, the recommend starting procedure as following:

   standard wooden packaging or customized
