Specification

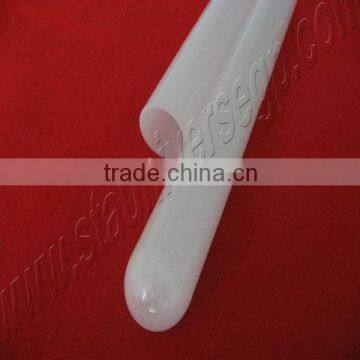

This quartz heating tube has the typical characteristics of high purity, good spectral transmission, well controlled dimension and lower OH and so on. It serves as the first choice of heat resistant material for halogenlamps, mercury lamps, metal halide lamps and other quartz lamps. This glass can be supplied in the range of 3-80mm outside diameter, 0.6-2.0mm wall thickness and 800-2400mm length. Exhaust tubes with good CPK are suitable for high-speed streamline production. And further prcessing of trim cutting, fire polishing, bending and pinching can be done according to the requirement of customers. OH-content can be controlled within20ppm15ppm5ppm2ppm according to the requirement of customers.
We produce different sizes and kinds of quartz tubes, such as thick wall quartz tubes, large diameter quartz tube, quartz twin tube, u-shape tube, C shape tube, quartz capillary tube, perforated tube, four holes tube, one end closed tube, quartz test tube, heat resisting quartz tube, corrosion resisting quartz tube, and other special shaped tubes according to customers' design.
STA Quartz Products Co., Ltd.
| Range of OD | OD | WT | Siding | Out of Roud | Bow1220mm |
≤ 6mm | ± 2.0% | ± 10% | 12% | 2.0% | 2.5mm |
| 6.00-15.00mm | ± 1.25% | ± 8% | 10% | 1.5% | 2.5mm |
| 15.00-20.00mm | ± 1.25% | ± 10% | 15% | 1.5% | 2.5mm |
| 20.00-25.00mm | ± 1.25% | ± 10% | 15% | 1.5% | 3.0mm |
| 25.00-30.00mm | ± 1.35% | ± 12% | 15% | 1.5% | 3.0mm |
| 30.00-80.00mm | ± 1.5% | ± 14% | 15% | 2.0% | 3.0mm |
(g/cc)Density20 °C kg.m-3 | 2.2 |
Degree of Hardness Moh’s Scale | 5.5-5.6 |
Softening point(degree) | 1683 |
Annealing point | 1215 |
Defoamation Point | 1120 |
Application:
This large diameter quartz is widely used in halogen lamps, mercury lamps, single-ended lamp, automobile lamp, stage lamp, thermocouple, copiers lights, water treatment lamp casing, all kinds of quartz vessels, pipelines and other fields.
If you are interested in our products, please contact with us.
1) 24 hrs service for customers.
2) quality issue, we accept reworking if quality is not reach your requirements.
3) sample available for free
4) OEM/IE service acceptable. welcome your artwork.
STA universe group is founded in 2001,dedicating to innovation ang creating a world famous brand.And provide verious products for customers .
