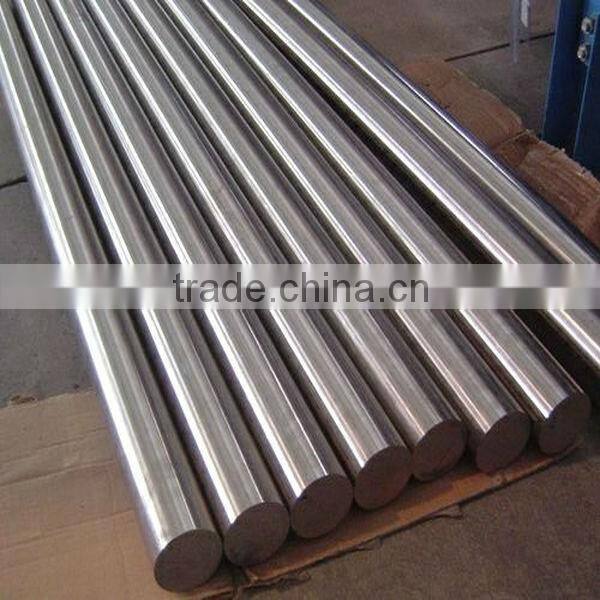

ZHENG ZHOU STA high purity tungsten rod
- 200 Ton / Tons per Month
- Any port
- Credit Card PayPal
-
STA ISO quality high purity tungsten rod
-
STA factory price high temperature tungsten carbide piston rods
-
STA factory price high purity tungsten electrodes welding rods
Quality Choice
-
STA factory price high purity solid tungsten carbide rods
Quality Choice
-
the STA HIGH melting points Molybdenum crucible
-
HIGH melting points ferro molybdenum with better purity
Quality Choice
Product Details
| Place of Origin: | Henan, China | Brand Name: | STA | Model Number: | STATR---02, W1,W2 |
| Dimensions: | customized |
Product Description
STA Tungsten is remarkable for its robust physical properties. Tungsten has the highest melting point 34220C, lowest vapor pressure and expansion factor, excellent barrier ray ability and the highest tensile strength at very high temperatures of all metals. It’s corrosion resistance property is excellent.
The advantages of Tungsten:
**High melting point (3422°C)
**Sufficiently high electrical resistant
**Low vapor pressure
** Low thermal expansion combined with good thermal conductivity
** Extremely good corrosion resistance against Glass&Ceramics.
About our high quality tungsten bars:
1.)The density:19.3g/cm3
2.)Content:99.95%min
3.)Standard:ASTM
4.)Tungsten Bar:ISO
Chemical composition:
Main Comp.W≥99.95 | ||||||
Other Contents | Fe | 0.0026 | Al | 0.0006 | Si | 0.001 |
Ca | 0.001 | Ni | 0.0009 | O | 0.0018 | |
Cu | 0.0005 | N | 0.0015 | Pb | 0.0001 | |
Sn | 0.0001 | Sb | 0.001 | As | 0.001 | |
Cd | 0.0001 | Mg | 0.0006 | C | 0.002 | |
Bi | 0.0001 | Mo | 0.003 | - | - | |
Some mian dimension as below :
|
| Tungsten Rod | ||||
dia | tol | length | quality | Straightness | ||
2.00 | +/- 0.010 | 1000 - 2000 | ground | <2.0 | ||
3.00 | +/- 0.010 | 1000 - 2000 | ground | <2.0 | ||
4.00 | +/- 0.015 | 1000 - 2000 | ground | <2.0 | ||
5.00 | +/- 0.015 | 1000 - 2000 | ground | <2.0 | ||
6.00 | +/- 0.015 | 1000 - 2000 | ground | <2.0 | ||
8.00 | +/- 0.020 | 1000 - 2000 | ground | <2.0 | ||
10.00 | +/- 0.020 | 1000 - 2000 | ground | <2.0 | ||
16.00 | +/- 0.020 | 800 - 1500 | ground | <2.0 | ||
20.00 | +/- 0.020 | 800 - 1500 | ground | <2.0 | ||
25.00 | +/- 0.040 | 800 - 1500 | ground | <2.0 | ||
30.00 | +/- 0.300 | 800 - 1500 | smooth forged | <1.5 | ||
35.00 | +/- 0.300 | 800 - 1500 | smooth forged | <1.5 | ||
40.00 | +/- 0.400 | 800 - 1500 | smooth forged | <1.5 | ||
45.00 | +/- 0.400 | 800 - 1500 | smooth forged | <1.5 | ||
63.50 | +/- 0.400 | 400 - 1000 | smooth forged | <1.5 | ||
80.00 | +/- 1.500 | 400 - 1000 | smooth forged | <2.0 | ||
Typical Application:
| type | purity | application |
| WAL1 | >=99.92% | filament,cathode and components for electron tubes,electrode for the gas discharge tube.etc. |
| WAL2 | ||
| WAL3 | >=99.92% | grid siderod,lead,support,electrode for the discharge lamp,etc. |
| W1 | >=99.95% | grid siderod,support,lead and electrode,etc. |
| W2 | >=99.92% |
Mainly used to found ingredient of material, cutter and heads, tungsten wire for lights instruments and conductor of heat, crankshaft and cylinder barrel of advanced automobile, ingredient of kinds of heat-resistant steel, mainly used to guns, artillery, rockets, satellite, airplane and ship.
About the pictures show:
Polyethylene foam and wooden case and wooden pallet or pack as customer's requirement .
You can contact our trade manager at any time. Your problems can be responsed in 12 hours can we will give you solutions in 24 hours. Also if there’s any problem about our products’ quality, we accept resending them again. Thank you.
*STA Universe Group is bigger manufacturer, of which STA is a brand, is part of the STA Universe Group, a large, high-technology engineering group. It include many factories in China, such as Henan, Zhejiang, Shandong, many provinces.
*STA Heating Elements Factory of STA Group, of which STA is a brand, is a world-leading developer and manufacturer of products based on advanced heating elements.
*Our products and services contribute to our customers' productivity, reliability and cost efficiency while reducing their environmental impact in a wide variety of industry segments.
* In partnership with customers, we jointly develop products and materials that meet the challenges of the future.
*The Heating Elements Factory of STA Universe Group is a manufacturer of silicon carbide heating elements, trade name STA SiC and molybdenum disilicide heating elements, trade name STA MoSi2.
*The STA heating element has a maximum use temperature of 1700 C. The MoSi2 element can operate up to an element temperature of 1800 C, and new 1900 C.
Why STA:
1. We are a manufacturer, which can control the cost easiler than trade company also can give you anwer more quickly.
2. As a manufacturer, we know much in technique and can give you more support in technique problem.
3.Our products are complete in specifications with various of sizes.
4.We enjoy a good reputation in the customers in domestic and overseas markets.
Our factory can according to your need to customize different type required.
If you have any questions or new need of them, pls contact me at any time. The more information will be sent to you, thanks in advance.
