Platen die cutting machine
- 200 Unit / Units per Month
- ningbo
- T/T
Product Details
| Condition: | New | Type: | Die-cutting Machine | Computerized: | Yes |
| Place of Origin: | Zhejiang, China | Brand Name: | Jiayuan Platen die cutting machine | Model Number: | JMQ-320A Platen die cutting machine |
| Voltage: | 220V | Power(W): | 3.5kw | Dimension(L*W*H): | 2800 950 1400 |
| Weight: | 1500 | Certification: | CE,SGS | Warranty: | One year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

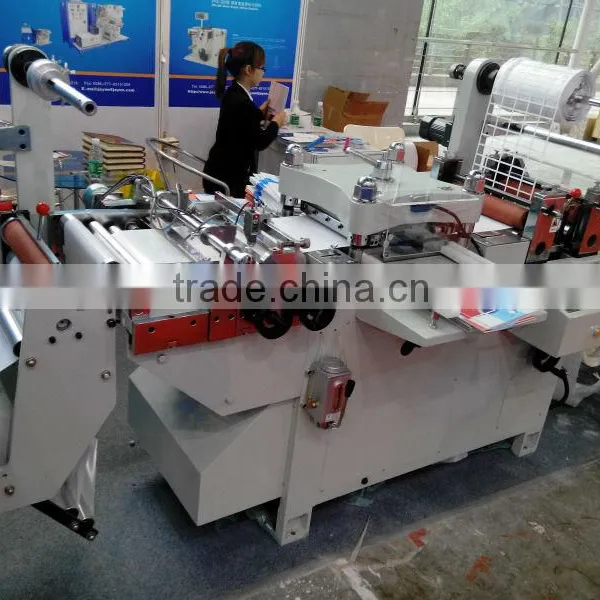

JMQ-320A Platen die cutting machine
Main characteristics of Flat Bed Roll to Roll Platen die cutting machine :
This Platen die cutting machine die cuts through flat pressing and high precision unit while shifting materials and slitting are controlled through servomotor. The printing Abel’s two-faced and Lengthways the color marks from three optics electric eyes to have exquisite tracking to locate, die cut, collect the discarded waste, slit or auto label in one processing. It is very applicable to die cut free paper adhesive tape, Dacron film trademark and laser anti-false trademark. It is ideal equipment for soft printing machine, continuous thread printing machine. Intaglio printing machine and anti-false trademark die press machine and is also the most efficient equipment for whole wheel rotation quick roll trademark printing machine. It is also applicable to die cutting to form for the Electronic and adhesive tape sectors.
Optional device of this Platen die cutting machine :
Hole punching device
Laminating device
Hot-stamping device
Parameter of Platen die cutting machine :
Cutting speed | 20-180(time/min) |
Max web width | 320mm |
Max mould cutting width | 300mm |
Max unwind diameter | 450mm |
Max mould cutting length | 290mm |
Positioning Precision | ±0.1mm |
Main motor power | 2.2KW |
Total power | 3.5KW |
Power voltage | 220V±10% |
Machine weight | About 1500kg |
Overall dimensions(L×W×H) | 2800×950×1400mm |
