358 High Security Prison Welded Wire Mesh Fence

1.High Security  358 Fence Overview

358 mesh –  as known airport fence , prison fence , is a high security mesh system widely used on high security installations such as prisons and military sites. Its has small apertures making it extremely difficult to cut the wires and near impossible to climb

2. High Security 358 Fence Specification

• 358 Fence Panels:Manufactured using 4mm wire welded at each intersection creating a strong and durable panel, the mesh aperture consists of a 76.2 x 12.7mm mesh spacing providing ultimate protection against climbing and cut-through with excellent see through visibility!

• 358 Fence Posts: Square hollow section posts provide both strength and safety. Plastic post-tops prevent water ingress which can cause rust. Posts can be manufactured to suit the site, either to be concreted into the ground, Baseplated for fixing to a concrete base, and/or cranked to receive another panel or for razor wire

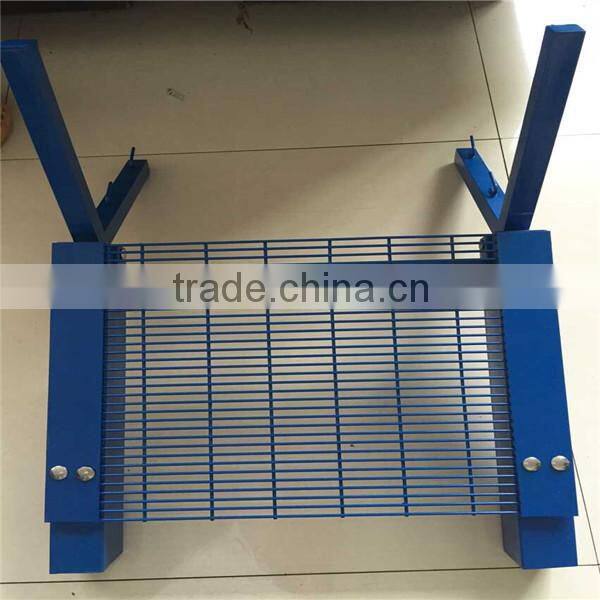

• 358 Fence continuous clamp bar fixing: The most secure method of securing panels to posts. A continuous 40 x 6mm flat bar clamps the mesh panel to the post, using Galvanised M8 Bolts which pass through the posts and are secured from the inside of the fence by means of anti-vandal and tamper resistant Permacone Nut.

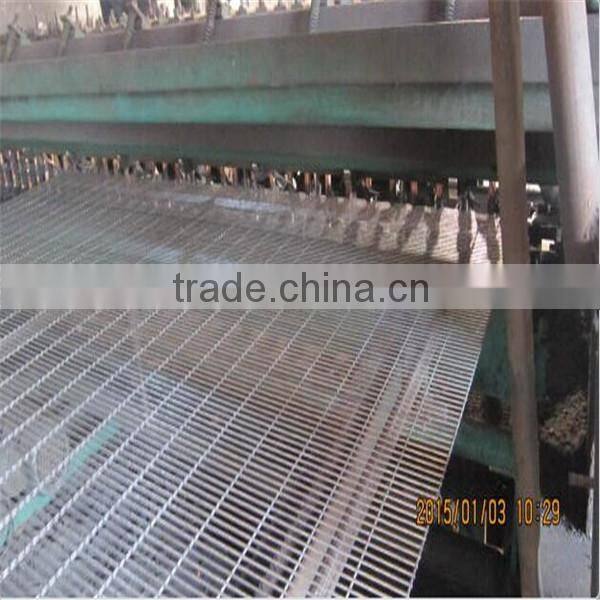

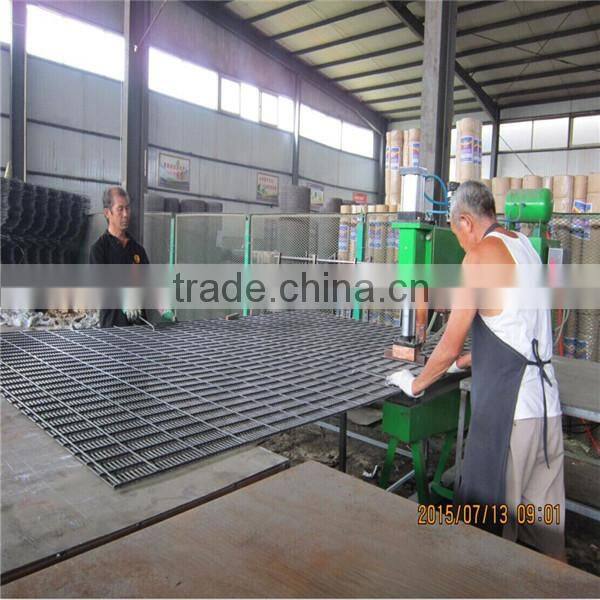

3. High Security 358 Fence Production Flow

4. High Security 358 Fence Hot Dip Galvanized Finish

• Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m)
• Hot dip galvanized zinc coated 400-450g/m2

Our hot dip galvanized process for 358 security prison fence

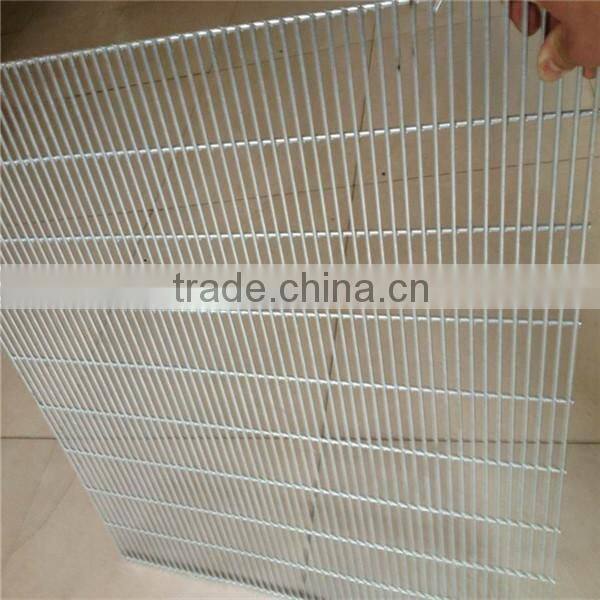

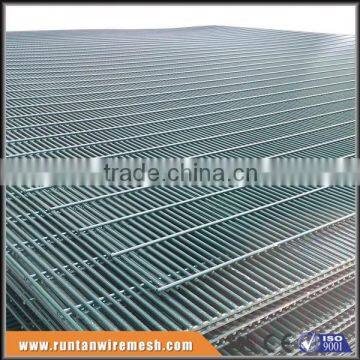

Our high security 358 fence hot dip galvanized panel

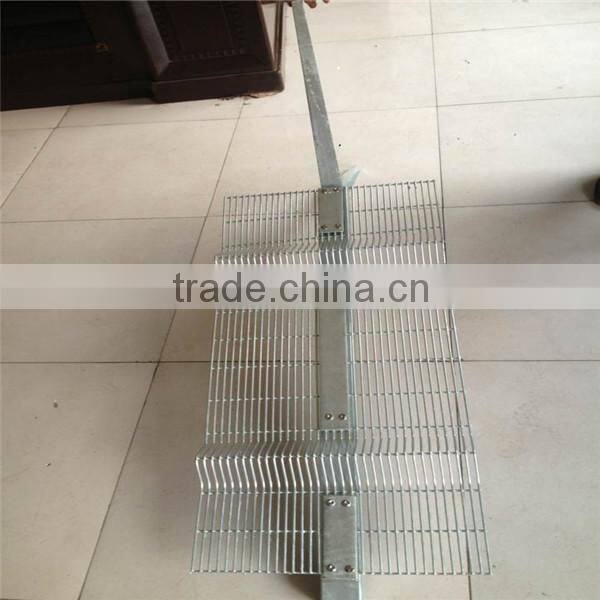

Our 358 wire fence panels with 2 bends

5. High Security 358 Fence Powder Coated Finish

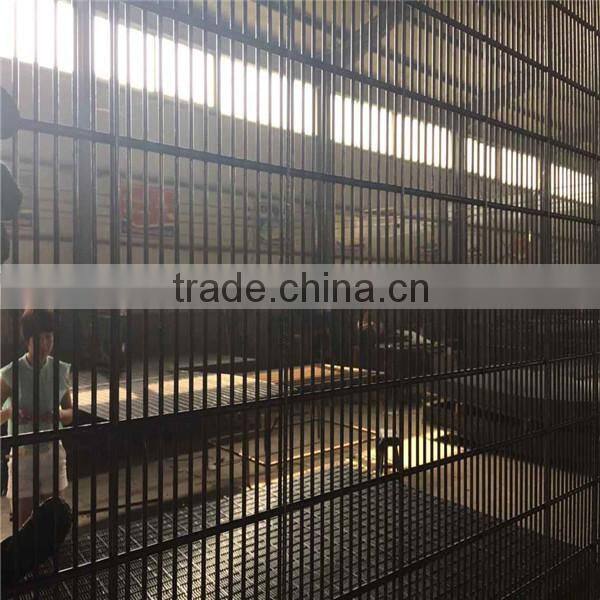

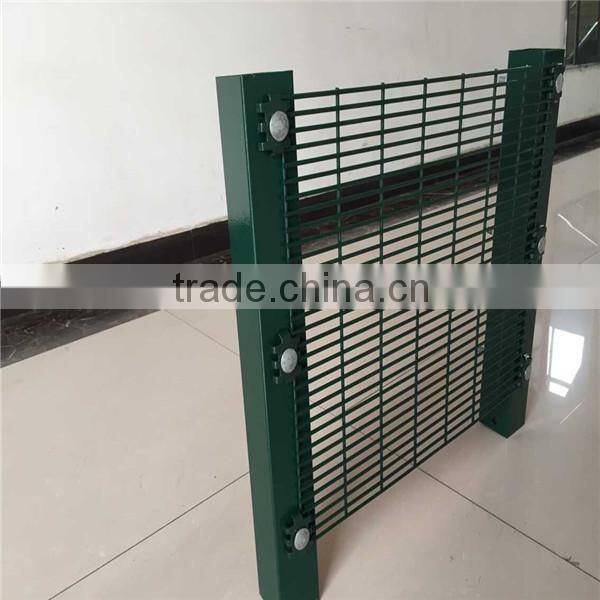

• Our 358 fence are also usually supplied with a polyester powder coated finish in (green) or  (blue) and other colours are available upon request.
• Polyester powder coating provides additional protection to the primary Zincalu Super layer and increases the potential life span

6. High Security 358 Fence Top With Barbed Wire

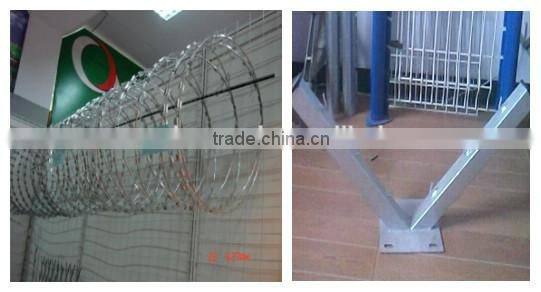

Our razor wire with V brace

7. High Security 358 Fence Application

• Mesh Fencing for Tennis Courts
• Playground Fencing
• Rebound Fencing for Sports and Recreation Grounds
• Secure Mesh Fencing for Schools, Homes and Residetial Areas
• Mesh Fencing for Retail and Offices
• Security Fencing for Airports
• All Boundary Demarcation
• Low, Medium and High Security
• Mesh Fencing for Industrial Units and Warehousing
• Private Construction Site Fencing
