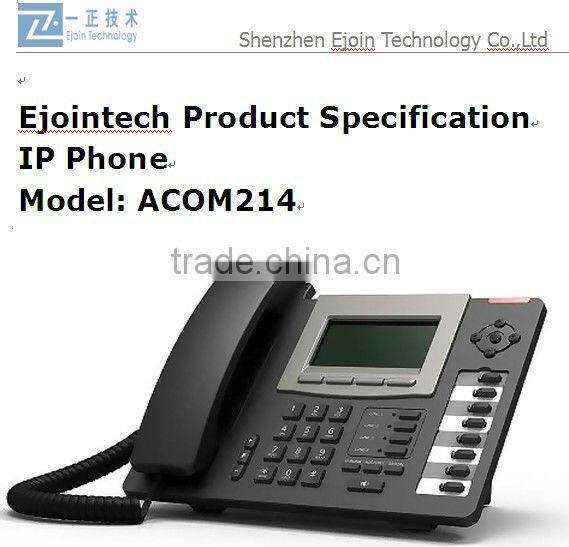

p2p phone ip phone acom214 via sip sever

Specifications

p2p phone ip phone acom214 via sip sever
Support PPPoE for xDSL
Support PoE (optional)
Support VLAN(

Features

l Support SIP 2.0 (RFC3261) and correlative RFCs

l  Support 2 SIP lines. Can connect to 2 SIP servers at the same time.

l  Support multi line/HD voice

l  Support iax2 line key/ IAX2

l Codec:G.711A/u, G.723.1 high/low, G.729a/b, G.722.1,G.726

l Echo cancellation: G.168 Compliance in LEC, additional acoustic echo cancellation(AEC) can reach 96ms max filter length in hands-free mode

l Support Voice Gain Setting, VAD, CNG

l  Full duplex hands-free speakerphone

l  SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/ IP call

l  DTMF: Support SIP info, DTMF Relay, RFC2833

l    9 kind of ring type and 5 user-defined music ring

l   Large dot matrix LCD display and softkeys make user easier to use

l   Friendly graphic menu

l  Support headset jack- RJ9

l   4 line keys defined as multi line with screen display, or used as SIP line keys

l  8 DSS keys

l   Soft keys programmable; function keys programmable

l    SIP application: support call forward/ transfer (blind/attended)/ holding/ waiting/ 3 way talking/ conference/pickup/ join call/ redial and unredial/ click to dial

l   Call control features: flexible dial map, hotline, empty calling no. reject service, black list for reject authenticated call, white list, limit call, no disturb, caller ID, CLIR (reject the anonymous call), CLIP (make a call with anonymous), Dial without register

l  Incoming calls /outgoing calls / missing calls. Each support 100 records.

l  Support Phonebook 500 records,SMS,XML,Speed dial, SRTP,Blf



l  Code synchronization via IP PBX/IMS

 l  Support EXT DSS consoles with 5max.

 l   Support click to dial via web phone book/ Group listening

 l   Voice codec setting for each SIP line

l  Support keypad lock, and emergency call during the keypad lock.

l    Ring play via headset or speaker setting

l      Signal tone parameters customized



Network Features



l WAN/LAN: 10/100M Ethernet ports, supports Route and Bridge mode.



l  Support bridge working as hub(optional)



l Support PPPoE for xDSL



l  Support PoE (optional)



l   Support VLAN(voice vlan/data vlan)



l   Support 802.1



l   Support basic NAT and NAPT



l   NAT transverse:support STUN client



l    Support DHCP client on WAN



l    Support DHCP server on LAN



l    Support main DNS and secondary DNS server.



l    Support DNS Relay, SNTP Client, Firewall and openVPN



l   Support VPN (L2TP) and DMZ



l    Network tools in telnet server: including ping, trace route, telnet client



l Web ,telnet and keypad management

 l  Management with different account right

 l   Upgrade firmware through HTTP, FTP or TFTP

 l     Support Auto Provisioning to upgrade firmware or configuration file(HTTPS/FTPS optional)
