heavy eazy pull box packed cat6
1.Description:
Category 6 Cable is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephone and video.
2.Materials:
Conductor material: annealed bare copper/CCC/CCAG/CCA
Conductor insulation: HDPE
Shielded: An aluminum-mylar (aluminum-polyethyleneterephthalate) tape is helically applied over the cable core, tape thickness - 0.025 mm, width - 18 mm; Shield thickness -0.04 mm
Drain wire: tinned copper/tinned CCA/CCS
The cable jacket: PVC/PE/LSZH/LSOH
Jacket Color: Optional
3.Electrical Characteristics:
| Max. Conductor Resistance: 7.0Ω /100m | Min. Insulation Elongation: 300% | ||||||
| Max. Resistance Unbalance: 2.3% | Min. Propagation Velocity: 0.622C m/s | ||||||
| Min. Conductor Elongation: 20% | Characteristic Impedance: 100± 15Ω | ||||||
| Min. Insulation Resistance: 7000MΩ /km | |||||||
| Frequency MHz | Attenuation dB/100m | NEXT dB | PS-NEXT dB | RL dB | ELFEXT dB | PS-ELFEXT dB | |
| 1 | 1.9 | 74.0 | 72.3 | 20.0 | 68.0 | 65.0 | |
| 4 | 3.7 | 65.0 | 63.3 | 23.0 | 56.0 | 53.0 | |
| 8 | 5.3 | 60.7 | 48.8 | 24.5 | 49.9 | 46.9 | |
| 10 | 5.9 | 59.0 | 57.3 | 25.0 | 48.0 | 45.0 | |
| 16 | 7.5 | 56.0 | 54.2 | 25.0 | 43.9 | 40.9 | |
| 20 | 8.4 | 55.0 | 52.6 | 25.0 | 42.0 | 39.0 | |
| 25 | 9.5 | 53.3 | 41.3 | 24.3 | 40.0 | 37.0 | |
| 31.25 | 10.6 | 52.0 | 49.9 | 23.6 | 38.1 | 35.0 | |
| 62.50 | 15.4 | 47.0 | 45.4 | 21.5 | 32.1 | 29.1 | |
| 100 | 19.8 | 44.0 | 42.3 | 20.1 | 28.0 | 25.0 | |
| 200 | 29.0 | 40.0 | 37.8 | 18.0 | 22.0 | 19.0 | |
| 250 | 32.8 | 38.0 | 36.3 | 17.3 | 20.0 | 17.0 | |

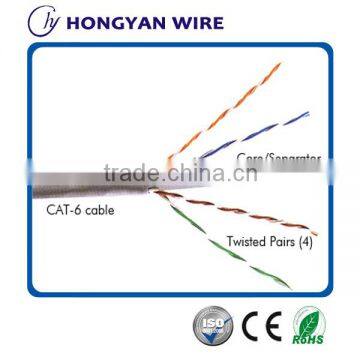

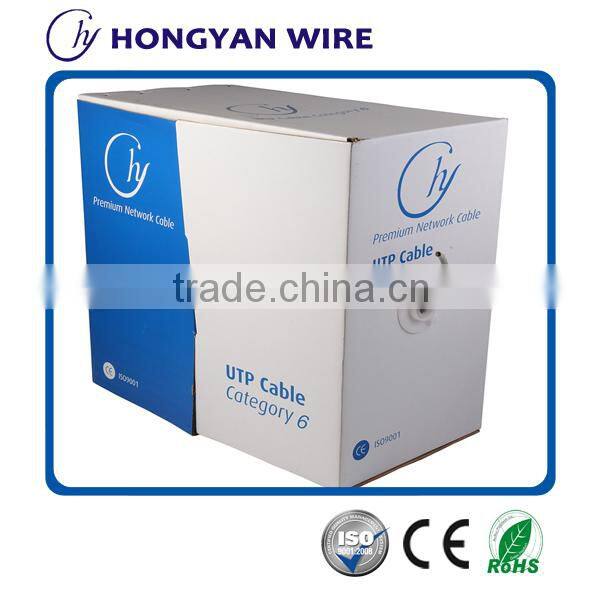

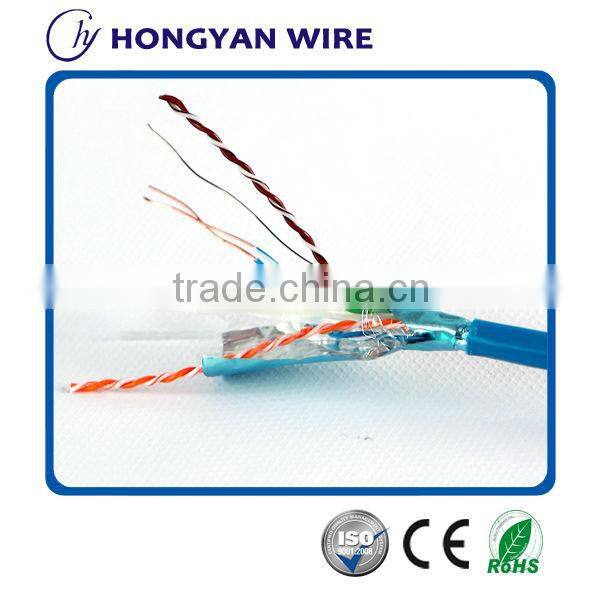

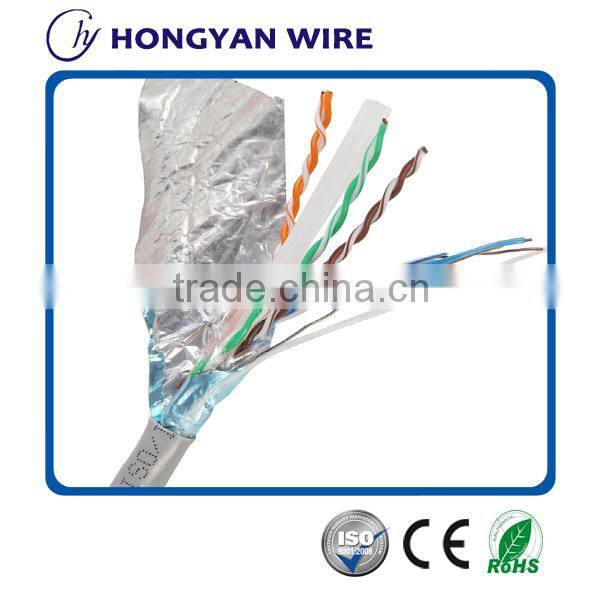

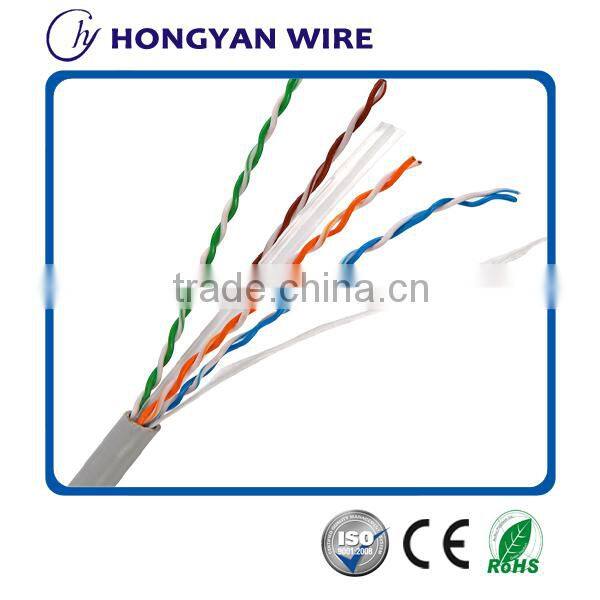

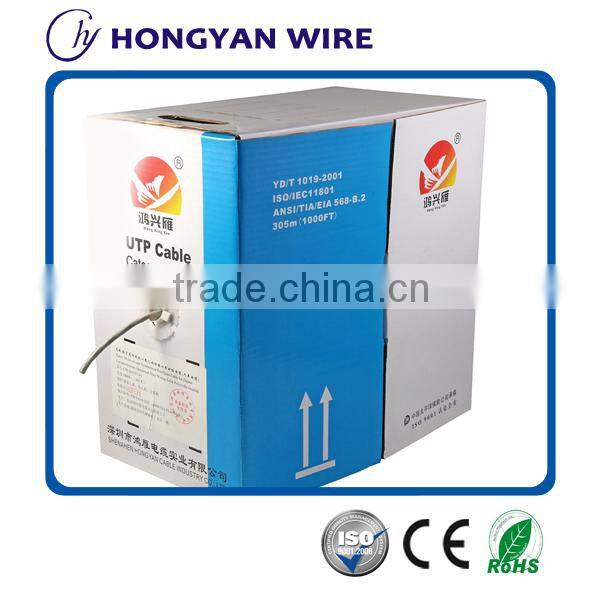

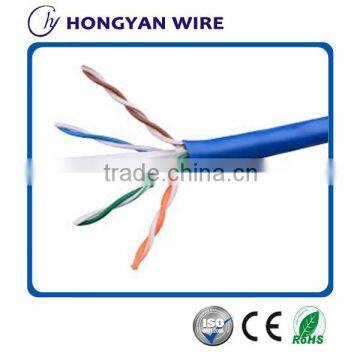

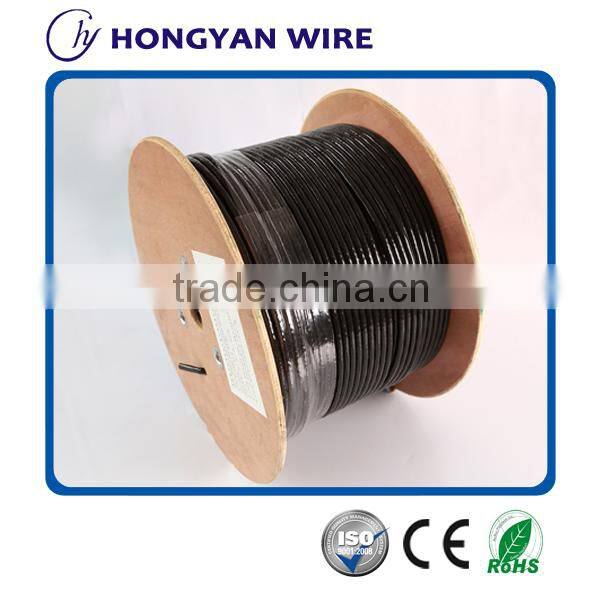

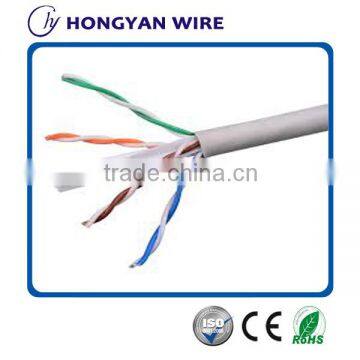

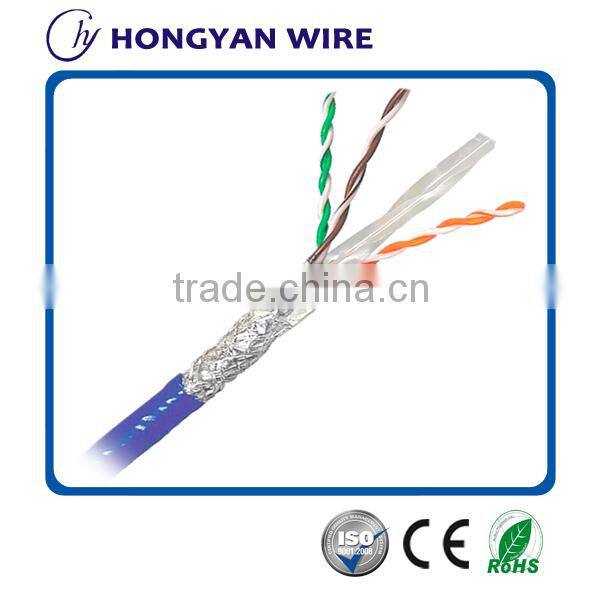

4.Lan cable shows:
5.Our Factory:
6.Our Certificate:

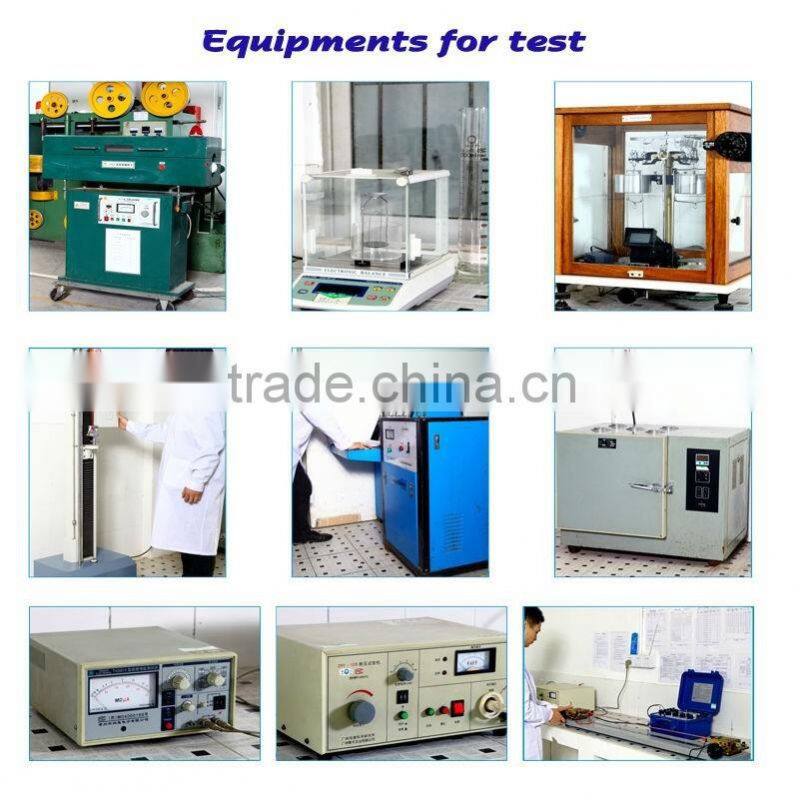

7.Production Process:
8,Contact information:
Ms Joyce Yin
Shenzhen Hongyan Wire Industry Co.,Ltd.
Add:#1 Building,Nannian Maling Industrial Park, Longgang District, Shenzhen, Guangdong, China
Tel : 0086-755-89611579 , Fax : 0086-755-84801184
Mobile : 0086-18520868290
Skype : joyceyin9
