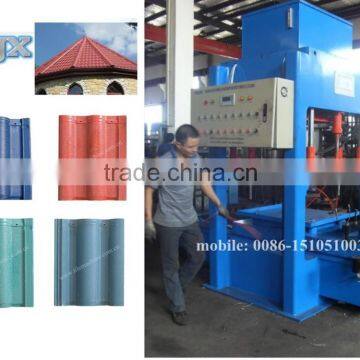

KB-2400B semi-automatic easy operate concrete tile making machine

Specifications

KB-2400B semi-automatic easy operate concrete tile making machine
3000-4000pcs per day
cement roof tile



KB-2400B semi-automatic easy operate concrete tile making machine





KB-2400B semi-automatic easy operate concrete tile making machine



it has two types: one is using vibration table, the other using Hydraulic pressure, but same as below:

-- main tile, ridge tile, margin tile, end tile...etc

-- pallet is plastic, form tightly

-- capability 3000pcs per shift



vibration table use plastic pallet:



hydraulic pressure uses metal pallet















1. vibration table use vibration theory to make tiles

2. full automatic, including mixer, feeder and tile machine

3. pallet is plastic

4. all roof tiles are available



1.Sample introduction of KB-125C concrete roof tile making machine

KB-125C concrete tile machine/automatic concrete roof tile making machine in machinery is the kind of equipment adopting advanced technical.Through processing specially of low invest cement,sand and so on,then and the color tile equipment (hydraulic press) produce different kinds of color tiles.according to the production and the nature of the work,the color roof tile making machine can be divided into roll forming color concrete roof tile machine,extrusion color concrete roof tile machine,molded color concrete roof tile machine,etc.At the present time,the molded color tile making machine is the most advanced, most efficient full automatic numerical control color roof tile making machine.It is easy to operation and maintain and suitable for all kinds of entrepreneur.





2.Process production of molded KB-125C concrete roof tile making machine
Let the raw material cement and sand match according to a certain proportion.At the beginning the bucket elevator send the raw materials to the mixer,then the mixing materials can be put into the constant feeder,the constant feeder continuous uniform feed,the material be conveyed to the main machine color tile machine,that is,molded color tile machine.the tile can be produced by hydraulic cylinder and mold force.After drying by sun and maintain,then you can paint tiles.







3.The Consist of KB-125C concrete roof tile making machine
1.Molding Tile Forming Machine
2.Wheel Agitator
3.Automatic Weighing and Feeding Machine
4.Bucket Elevator





4.Process Flow of KB-125C concrete roof tile making machine
1.Preparing the raw material
Cement 1.5 Medium Sand 2.0 Coal Ash 0.5
2. Bucket Elevator
3.Wheel Agitator
4.Automatic Weighing and Feeding Machine
5.Curing Pallet
6.Hand Fork Lifter
7.Coating Line
8.Finished Goods



Roof tile Work flow: Elevating--- Mixing --- Fixed-quantity filling --- Pressure forming --- Mould unloading --- Forming tiles --- Onto the tiles shelf ---Maintenance (24 hours) --- Stacking --- Natural maintenance --- Ink jetting --- Finished products.









5.Feature of KB-125C concrete roof tile making machine

1.The machine adopts PLC programmable controller featuring fast molding speed,large output,automatic control,man-machine interface,reliable performance and convenient operation,It has 8 pieces/Min,whole hydro-pneumatic production speed,high rate of finished products and high cost performance.



2.As a competitive concrete products making equipment,its products adopts mortar concrete filter pressing molding and features perfect structure.Various style,high density,high intensity and accurate size,which can meet the needs of different constructions.



3.It is multifunctional machine,it can be used to produce various styles of main tiles,ridge tiles. Edge tiles and ditch tiles after changing the molds as well as different styles of high grade concrete ground tiles,such as terrazzo tiles,polishing and roto-blasting ground tiles and washing ground tiles.



4.Its remote diagnosis system,which can be used to control and diagnosis the equipment remotely through the phone line,greatly reduces the requirement for customers and makes the machine more humanization.



5.KB-125C hydraulic concrete roof tile machine/ vibration table concrete roof tile machine , having a high quality but low price,occupies the market share by its perfect products.



6.Stuffer pot adopts unique feeding head design, which ensures the complete matching of large quantity of filler incorporation and uniformity of threading, with high production of the complete machine.



6.Detailed Production of KB-125C concrete roof tile making machine

1). bucket for raw material





2). wheel mixer







3). constant feeder







4). Vibrating table machine











7.Technical Parameter of KB-125C concrete roof tile machine vibration table

KB-125C concrete tile machine/automatic concrete roof tile making machine
moulding presure	125T
moulding speed	7-8pcs/min,more than 3000pcs/shift
main frame power	5.5 KW
main frame weight	about 5T
external dimension	2700*1600*2480mm





Our factory









Delivery of KB-125C concrete roof tile machine vibration table













if you have any question, pls feel free to contact with me of following information. If you have time, welcome you to visit our factory :
