1.WT10-15 informations
Technical parameters
Overall dimension | 3150*1800*2400mm |
Demold method | Hydraulic |
Turning method | Hydraulic |
Hydraulic system pressure | 16-20Mpa |
Excitation frequency | 3200Hz |
Total power | 16KW |
Total mass | 4200KG |
Molding cycle | 10-15S |
Molding | 10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity | 2000-9000Pcs/hour |
Types of bricks can be made | 390*240*190/390*190*190/390*115*190 All kinds of moulds can be made by customers' drawings |
Moving method | Automatically move and hydraulic steering |
Excitation way | Three-dimensional box excitation |
Raw material | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
WT10-15 capacity
Item | Specification size | Quantity per mold | Cycle moulding | Per hour | Per day |
Hollow brick | 400*200*200 | 10pcs | 15-20s | 1800-2400pcs | 17280-21600pcs/day |
Porous brick | 240*115*90 | 64pcs | 15-20s | 11520-15360pcs | 92160-122880pcs/day |
Hollow bricks | 400*150*200 | 14pcs | 15-17s | 2970-3360pcs | 29700-33600pcs/day |
WT10-15 mould and mixing material
WT10-15 block machine material
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields | widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
Customer working site with WT10-15 block machine
The curing site of bricks
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line anytime,if you need, we can Make inVitation
card for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance

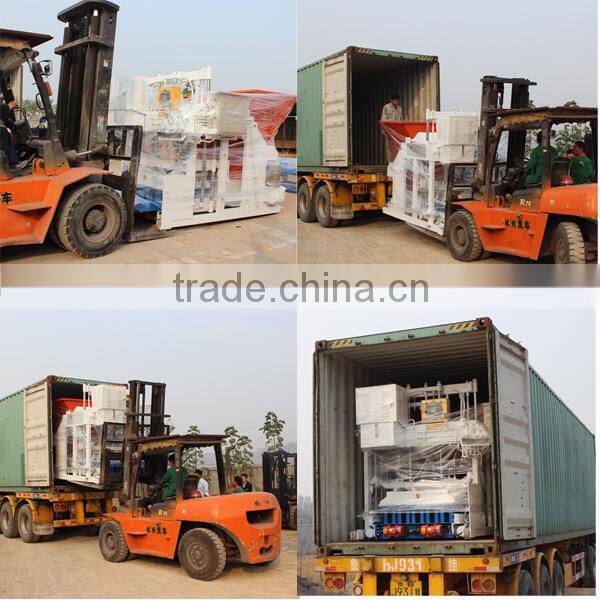

(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix,and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time,keep well communication with each other
1. History
Linyi WANTE machinery Co.,Ltd has more than 18 years' exprience of manufacturing burn-free
block machine.We are always the leading company in the field of block macihines industry. for now,
we have achieved essential ceticifications domestic and overseas,such like ISO9001,CE.
2.Profession
Our products are Automatic Burn-free brick making machine, aerated concrete block production
line, aerated concrete wall panel production line.Our company posses more than 2000 employees,
and one third of them are professional engineers.
3.International cooperation
