Home > Products > Interlocking brick machine > WT2-10 automatic clay brick manufacturing plant cement interlocking brick making machine
WT2-10 automatic clay brick manufacturing plant cement interlocking brick making machine
- 100 Set / Sets per Month
- qing dao
- T/T L/C D/P D/A Credit Card PayPal
- WT2-10 new design clay interlocking brick machine best price
- low investment WT1-25 soil clay interlocking bricks making machine production line
- WT2-10 fully automatic clay brick making production line clay brick manufacturing machine
- Low price hot sale WT1-25 soil clay interlocking bricks making machine production line
- full automatic clay brick production line fully automatic clay bricks making machine
- WT2-10 clay interlocking brick machine price
Product Details
Condition: | New | Type: | Interlock Block Making Machine | Brick Raw Material: | Clay |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 5600/day | Place of Origin: | Shandong, China | Brand Name: | Wante |
Model Number: | Interlock Block Making Machine | Voltage: | 220V/380V | Power: | 7.5kw |
Dimension(L*W*H): | 1800*1400*1100mm | Certification: | ISO9001:2008 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
plastic or nude package
Product Description

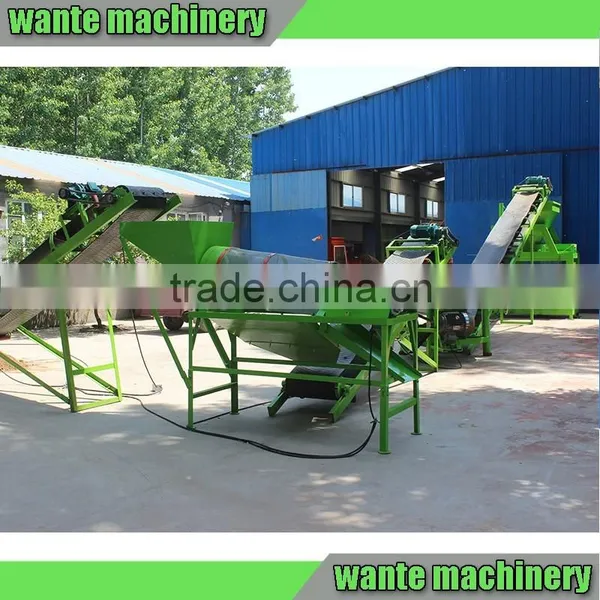

WT2-10 automatic clay brick manufacturing plant cement interlocking brick making machine
WT2-10 fully automatic clay brick making production line clay brick manufacturing machine

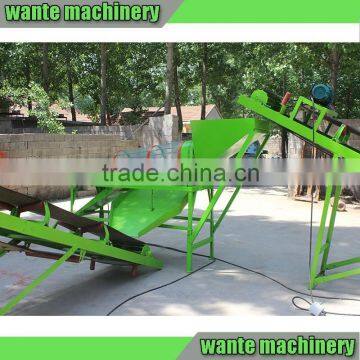

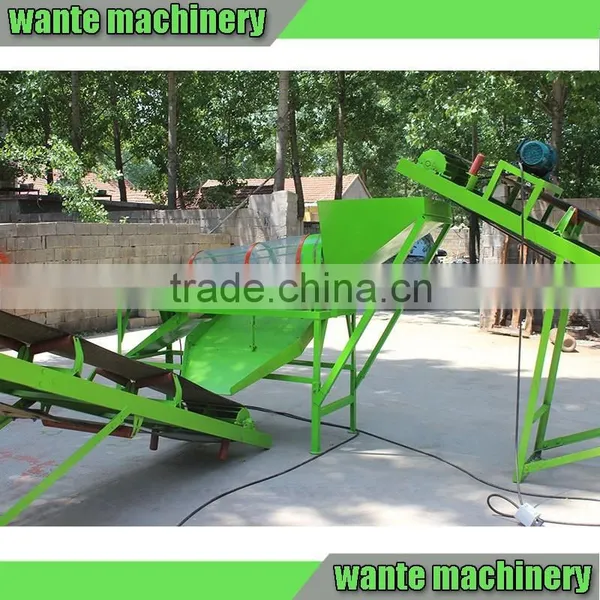

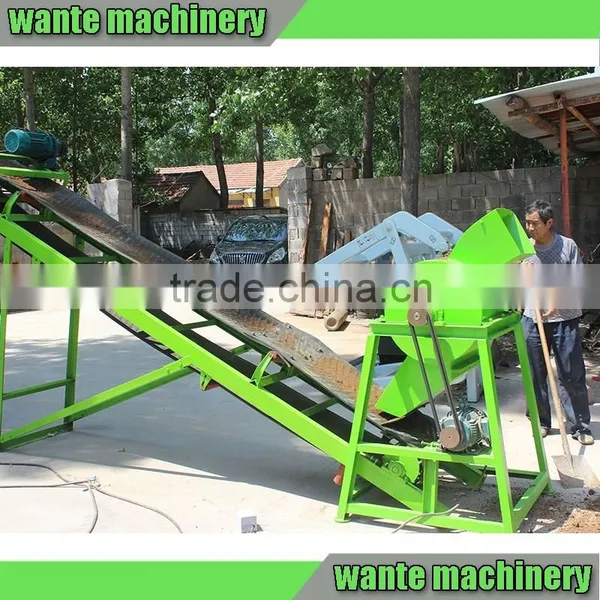

1. Big clay made into small size by soil crusher
2. Remove the big size clay, use small size clay only
3. Pour the clay and cement to mixer , mixing them with water
4. Transfer the finished raw material to host machine by conveyor machine.
5. Produce green block.
6. Carry the green block to curing aera.
WT2-10 fully automatic clay brick making production line clay brick manufacturing machine

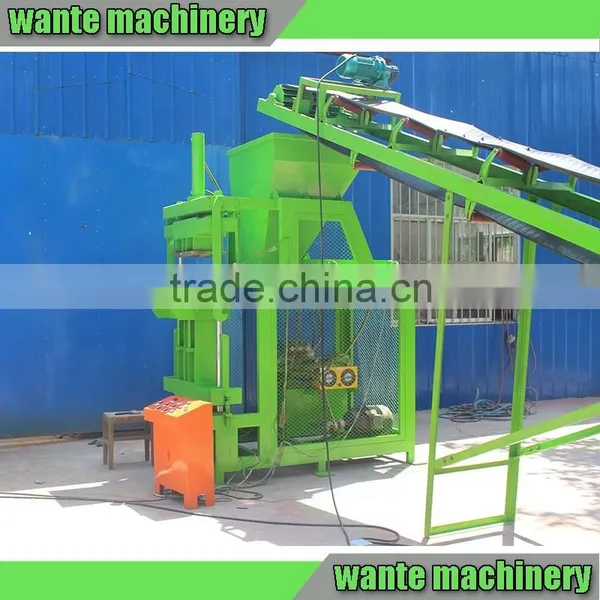

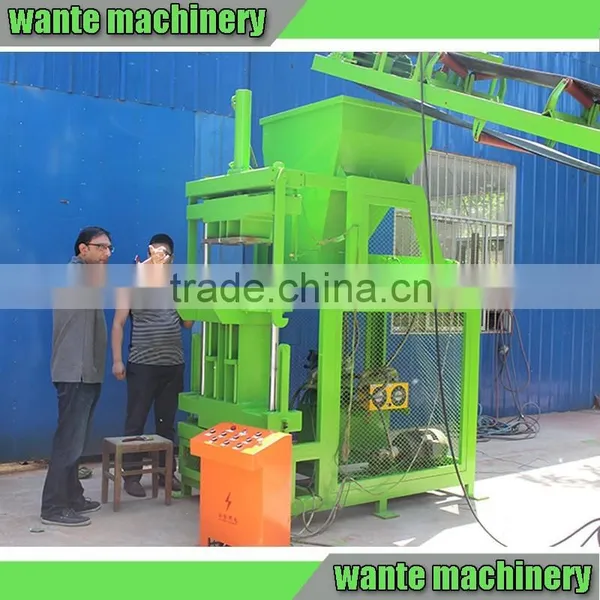

WT2-10A hydraulic interlocking block machine | |
Overall size | 1400(L)×1100(W)×2100(H)mm |
Shaping cycle | 10-12 seconds |
Power | 7.5 KW |
| 12 Hp diesel engine |
Pressure | 16Mpa |
Total weight | 1300 KGS |
WT2-10 fully automatic clay brick making production line clay brick manufacturing machine
Overall size mm | 1100(L)×1100(W)×1400(H)mm |
Motor | 5.5KW |
Capacity | 500KGS/H |
Electricity | 380V/220V/ (adjustable) |
Total weight | 300 KGS |
WT2-10 fully automatic clay brick making production line clay brick manufacturing machine
Power | 3KW |
Capacity | 480KGS/h |
Rated power | 380V or 220V |
Size | Diameter:500mm |
Total weight | 320 KGS |

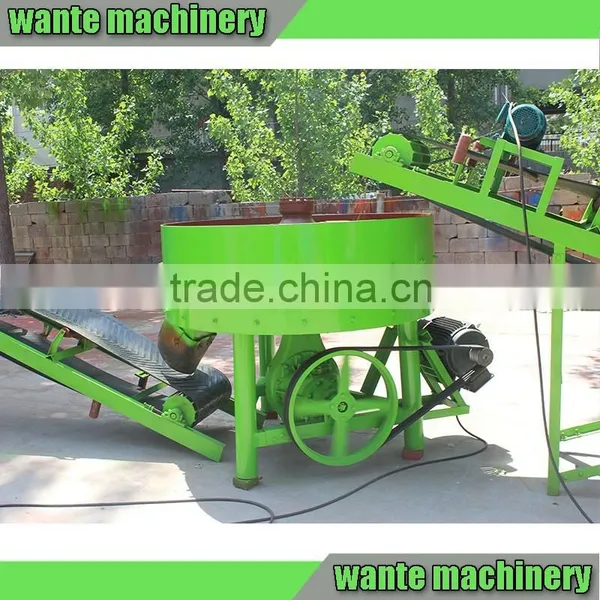

WT2-10 fully automatic clay brick making production line clay brick manufacturing machine
Overall size mm | 1200(L)×1200(W)×1200(H)mm |
Mixing time | 3-5mins |
Feeding volume | 500L |
Output volume | 350L |
Power | 7.5 kw |
Total weight | 400 KGS |
Block size | Piece/mold | Pieces/hour | Pcs/day |
300x150x100mm | 2 | 500-600 | 5000-6000 |
WT2-10 fully automatic clay brick making production line clay brick manufacturing machine
Block molds
