Home > Products > Interlocking brick machine > WT2-10 clay interlocking brick machine price
WT2-10 clay interlocking brick machine price
- 10 Set / Sets per Month
- qingdao
- T/T L/C Credit Card PayPal
- High quality WT1-25 soil clay interlocking bricks making machine production line
- WT2-20M diesel solid interlocking block machine with big capacity
- WANTE BRAND WT2-10 automatic interlocking brick machine production line
- Low price WT2-10 interlocking brick block machine in kenya interlocking brick clay machine
- WANTE machinery WT2-10 hydraulic interlock clay brick machine hydraulic clay bricks press machine
- Hydraulic WT2-10 interlock clay brick making machine south africa
Product Details
Condition: | New | Type: | Interlock Block Making Machine | Brick Raw Material: | Clay |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 3000-4514 pcs/day | Place of Origin: | Shandong, China | Brand Name: | wante |
Model Number: | WT1-10 | Voltage: | 380V/220V | Power: | 5.5KW or diesel engine |
Dimension(L*W*H): | 1250x1250x1500MM | Certification: | CE/BV | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard pacakge
Product Description
WT2-10 auto brick machine for clay interlocking bricks working process :
1. Big clay made into small size by soil crusher
2. Remove the big size clay, use small size clay only
3. Pour the clay and cement to mixer , mixing them with water
4. Transfer the finished raw material to host machine by conveyor machine.
5. Produce green block.
6. Carry the green block to curing aera.
WT2-10 auto brick machine for clay interlocking bricks introduction |
1.High capacity:improved from WT1-10,can produce 2 blocks/mould.
2.Automatic interlocking brick production line
3.Hydraulic press
4.Can produce different kinds of interlocking bricks
WT2-10 auto brick machine for clay interlocking bricks specification |

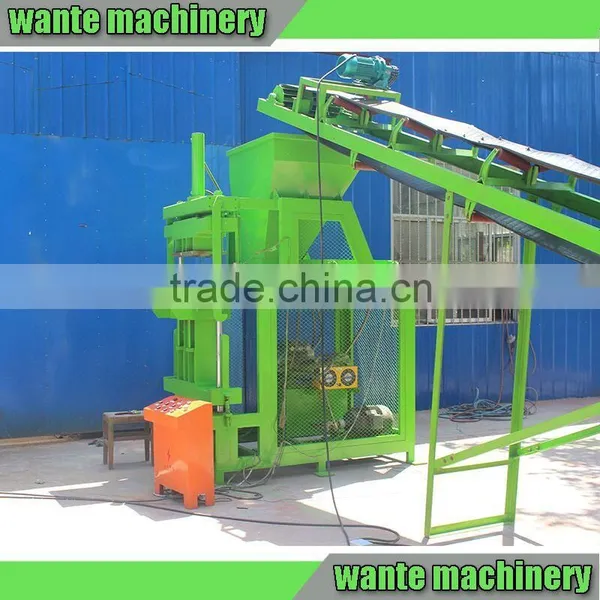

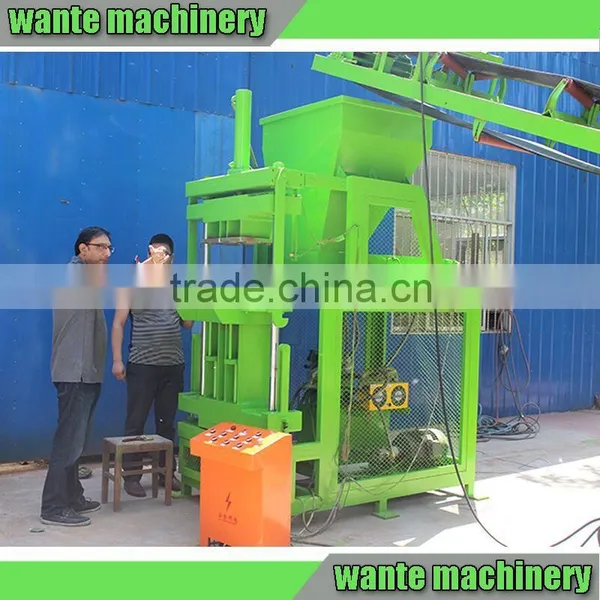

| WT2-10 hydraulic interlocking block machine | |
Overall size | 2500(L)×900(W)×2300(H)mm | |
Shaping cycle | 6-8 seconds | |
Power | 7.5 KW | |
15 Hp diesel engine | ||
Pressure | 16Mpa | |
Total weight | 1300 KGS | |
| Conveyor belt | |
Belt width (M) | 6(4.5/3) | |
Belt length (M)/KW | 6/2.2 | |
Belt speed (M/S) | 2 | |

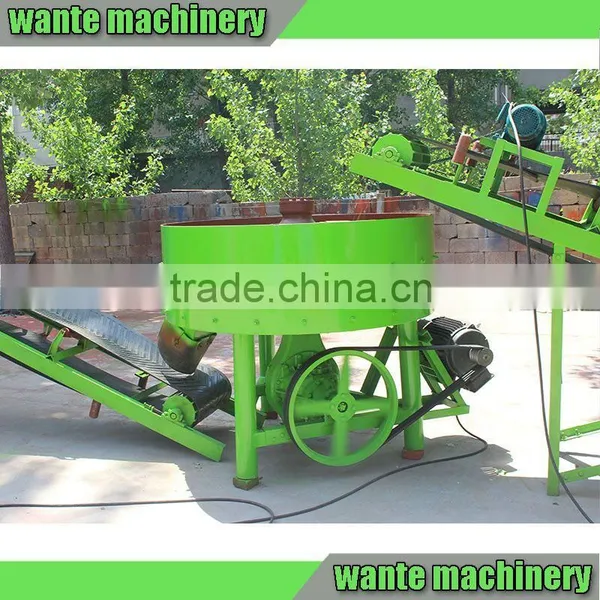

JD350 mixer | ||
Overall size | 1200(L)×1200(W)×1300(H)mm | |
Shaping cycle | 5 mins | |
Volume | 350L (25Kgs Cement) | |
Electricity | 380V/220V/ (adjustable) | |
Total weight | 330KG |

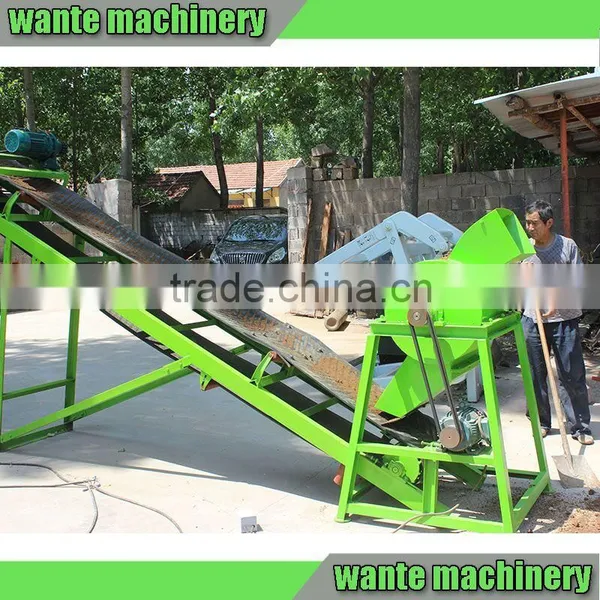

Soil crusher | ||
Overall size mm | 1100(L)x1100(W)x1400(H)mm | |
Motor | 5.5kw | |
Electricity | 220v | |
380v | ||
Capacity | 500KGS/H | |
Total weight | 200 KGS | |

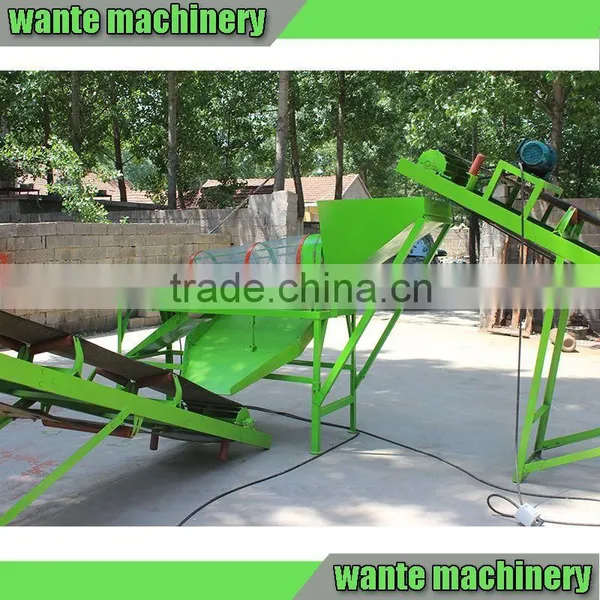

Soil screen | ||
Power | 3KW | |
Capacity
| 480KGS/h | |
Total weight | 300KGS | |
|
