2014 professional manufacture led ceiling lamp modern 6W with CE ROHS SAA approved

Specifications

ked ceiling lamp modern

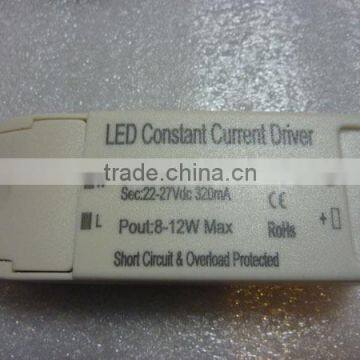

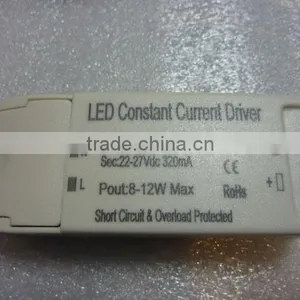

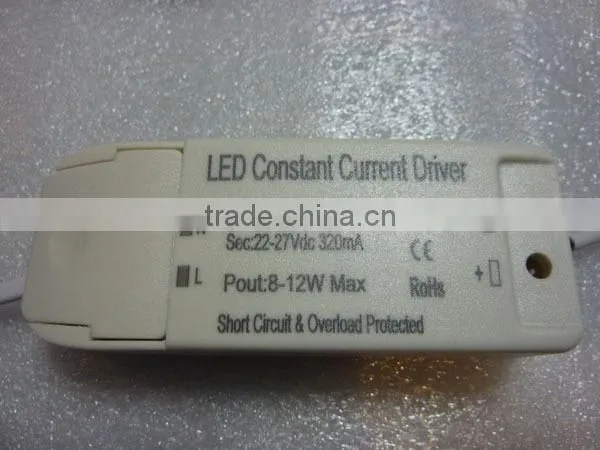

1.Isolated constant current led driver
2.High quality 3 years warranty
3.All series size
4.CE SAA

2014 professional manufacture led ceiling lamp modern 6W with CE ROHS SAA approved







Type	RP126W
Input voltage &frequency	AC85V-265V 50/60Hz

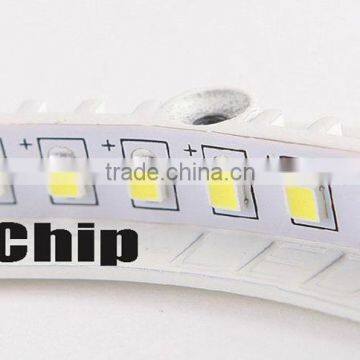

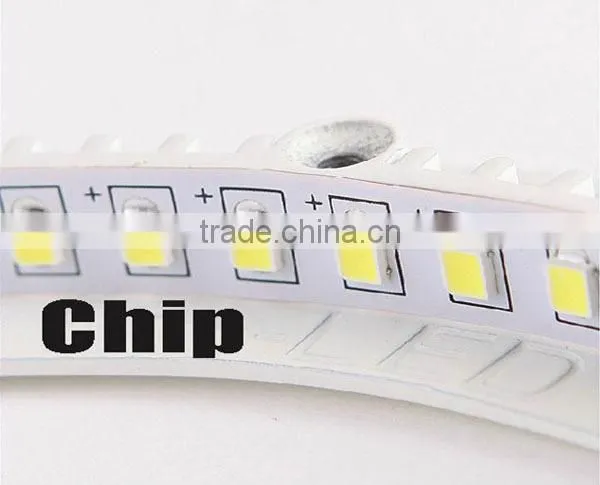

Light source	SMD2835/30pcs
Power consumption	6W
Color temperature	WW:2800K~3200K	NW:4000K~4500K
LED luminous efficiency	70lm/W	CW:6000K~6500K
Lamp Lumens	450lm
CRI(Ra)	>78
Beam angle	120°
Working temperature	-40°C~60°C
Housing material	Aliminium shell+PC cover
Product size	120*120mm,cutout:100*100*13mm
Light source life span	≥50,000 hrs



Other round panel specification:

Part No.	Input Voltage	Power Factor	LED Chip	LED QTY	Power	Dimension	Cutout size	Lumens
SP093W	AC85-265V	>0.8	SMD2835	15	3W	90*90mm	70x70x13mm	210lm ± 10%lm

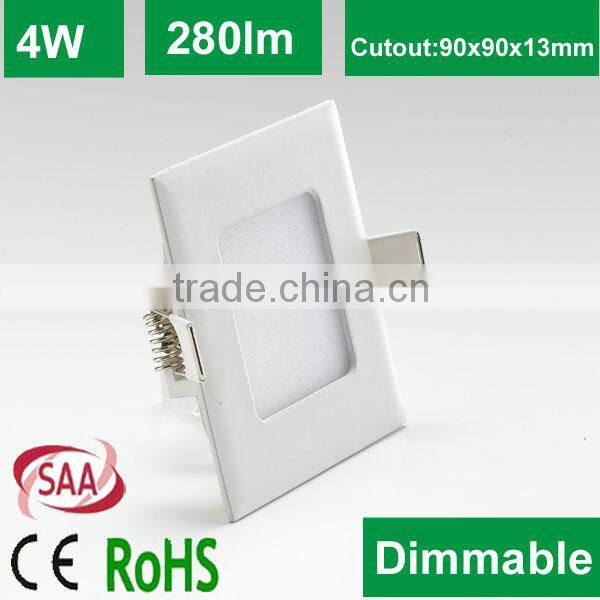

SP114W	AC85-265V	>0.8	SMD2835	20	4W	110*110mm	90x90x13mm	280lm ± 10%lm

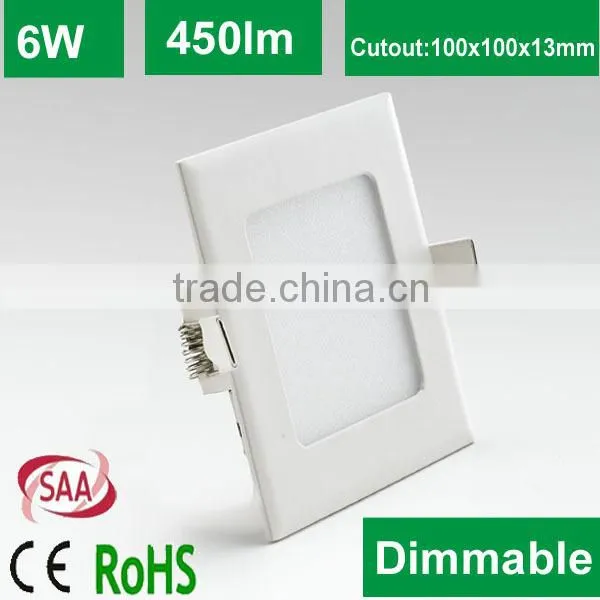

SP126W	AC85-265V	>0.8	SMD2835	30	6W	120*120mm	100x100x13mm	450lm ± 10%lm
SP159W	AC85-265V	>0.9	SMD2835	45	9W	150*150mm	130x130x13mm	660lm ± 10%lm
SP1712W	AC85-265V	>0.9	SMD2835	60	12W	170*170mm	150x150x13mm	840lm ± 10%lm
SP2014W	AC85-265V	>0.9	SMD2835	70	14W	200*200mm	180x180x13mm	1000lm ± 10%lm
SP2218W	AC85-265V	>0.9	SMD2835	90	18W	225*225mm	195x195x13mm	1200lm ± 10%lm











1. General indoor lighting

2. Hotels lighting

3. Conference room lighting

4. Factories, offices lighting

5. Business negotiation venues lighting

6. Housing, institutions and other buildings lighting

7. Schools, hospitals lighting

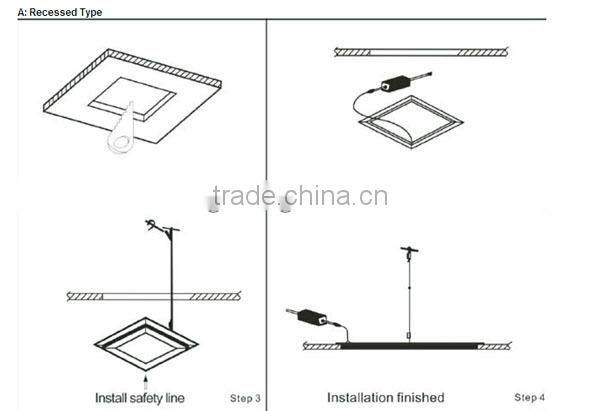

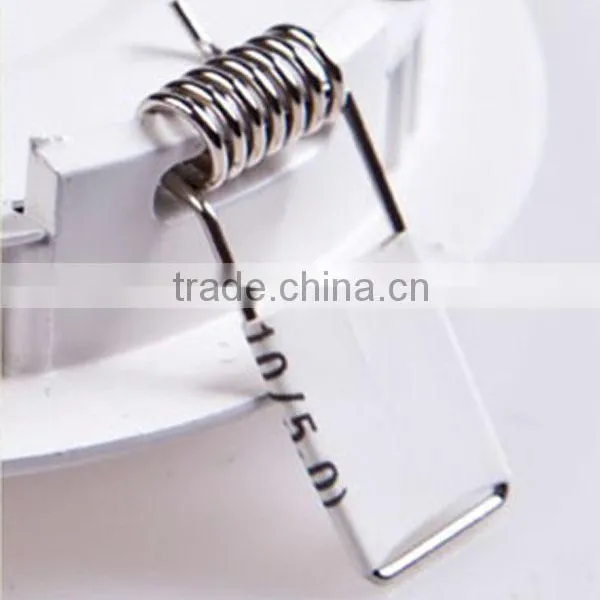

Install design:



Led square ceiling light Packing:

1:Qty/ctn:20pcs
2:Gross Weight:18.5kg
3:Size of carton:55x40x30mm





Material  Control:



We will check all outer ring one by one  remove any stain of outer to protect smooth surface;



100% of the lamps will be tested and keep lighting for 48 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.

Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.











































1. For all your inquires about us or our products,we will reply you in detail within 24 hours

2. We own well-tranied and passional sales & after –sale services who can speak fluent Engligh language

3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.



4. We have very experienced R&D engineers and we have strong ability to do ODM projects.





5.We make color box free when  QTY more than 1000pcs



6.Our convenient payment and effective transportation  service:





Quality, Promise and Value are the key of our success. If you are looking for a business partner supplying super quality products, welcome to contact A-ONE:



Contact Person: Steven

 Skype:aoneledsteven
