Home > Products > tube furnace > 1200c mini desktop low cost of tube furnace in lab
1200c mini desktop low cost of tube furnace in lab
- 200 Set / Sets per Month
- QINGDAO TIANJIN SHANGHAI
- T/T PayPal
-
mini 1200c tube furnaces with O.D 2"* 40"length quartz tube,30 steps programmble
-
Programmable 1200C quartz tube low temperature furnace in lab
-
Programmable 1200C quartz science lab furnace for nano material researching
-
1200C Max Sliding RTPTube Furnace with Flanges for Fast Heating / Cooling
-
1200C Max Fast Heating / Cooling Sliding RTPTube Furnace with quartz tube
-
Sliding RTP ( rapid thermal processing ) RTP Tube Furnace with quartz tube / RTP tube furnace
Product Details
| Brand Name: | CY | Model Number: | CY-O1200-50IC-S |
Product Description
1200C mini desktop lab cost of tube furnace in lab
Application of low cost tube furnace
1.CVD experiment
2.Preparation of carbon nanotubes
3.Growth of graphene
4.Crystalline silicon substrate coating
5.Diffusion welding for metal materials
6.Heat treatment under the vacuum of atmosphere surroundings
Features of low cost tube furnace
1.Fast heating rate:10°c/min
2.Multi-function: CVD experiment, growth of graphene, crystalline silicon substrate coating and etc
3.LED display or LCD touch screen
4.30 steps programmable automatic control
5.Can connect with vacuum pump and atmosphere furnace.
6.Accept PC interface control
Technical parameters of low cost tube furnace
| Model | CY-O1200-50IC-S |
| Display | LED |
| Chamber material | imported fiber |
| Heating element | imported alloy heating wire |
| Max.temperature | 1200℃ |
| Working temperature | ≤1100℃ |
| Heating rate | ≤10°c/min |
| Heating zone | Single |
| Temperature zone length | 200mm |
| Thermostatic zone length | 100mm |
| Tube Material | high purity quartz |
| Tube Size | 50mm |
| Tube length | 600mm |
| Flange connection | stainless steel flange |
| Control mode | PID automatic control via SCR power control |
| Temperature accuracy | ±1℃ |
| Working voltage | AC 220V 50-60Hz |
| Main power | 1kw |
| Heating power | 750kw |
| Thermal couple | K type |
| Accessories | quartz tube 1pc, flange 1set, plug 4pcs,O-rings 8pcs, glove 1pari, furnace hook 1pc, manual book |

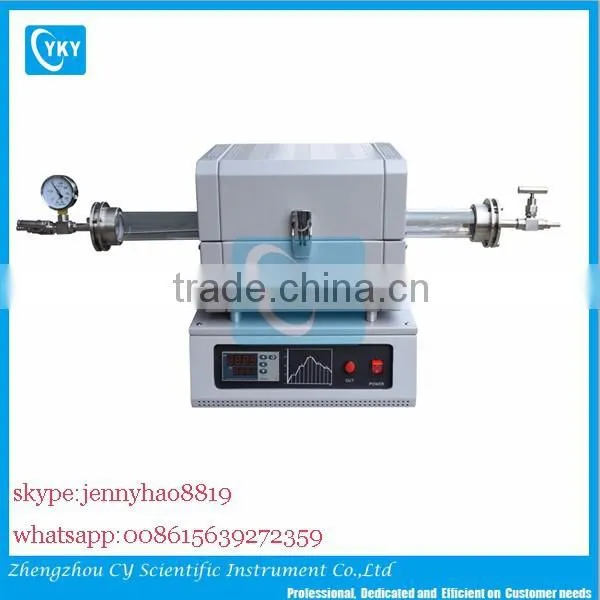

Picture of low cost tube furnace
Packaging of low cost tube furnace
PLY wood box as below picture, or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
Processing room
Show room
