1008 10uH 20% 0.876ohm MuRata SMD Power Inductor

3,000/pcs/roll/ctn.

1008 10uH 20% 0.876ohm MuRata SMD Power Inductor

1.  Specification

Brand name	muRata
Part No.	LQH2HPN100MG0L
Inductance	10uH
Tolerance	±20%
Inductance test frequency	1MHZ
Rated current (Isat) (Based on Inductance change)	700mA
Rated current (Itemp) (Based on Temperature rise)	490mA
Max. of DC resistance	0.876Ω
Avg. of DC resistance	0.73Ω ±20%
Q test frequency	10MHz
Operating temperature range (Self-temperature rise is not included)	- -40~85°c
Class of magnetic shield	Magnetic shield of magnetic powder in resin

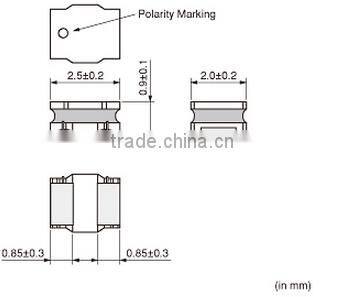

Shape
L size	2.5 ±0.2mm
W size	2.0 ±0.2mm
T size	0.9 ±0.1mm
Size code in inch(mm)	1008 (2520)
Reference
Packaging	φ180mm Paper taping & Reel
Pack Quantity	3000 pcs/reel
Category	Inductor
Family	RF Inductor
Chip Inductors Mass Stock
We supply various electronic components and welcome your inquiries

2. Application

• For general purpose
• the high-frequency circuits of mobile communications equipment, such as mobile phones, wireless LAN, and others.

3. Feature

• Inductor of the multilayer & non-magnetic core structure.
• high Q (Quality factor) value
• Max. height 0.55 mm
• Reflow soldering applicable
• Complied with RoHS Directives
• Enables a smaller size and lower cost compared to the wire wound structure
• Enabling use in a wide range of applications





  4. About Inductor from muRata



  • Classification and Structure of Chip Inductor



    We also can provide various inductors from TDK, Samsung, Coilcraft, Taiyo, etc..

    and most of them were in stock.

    Any enquiry please feel free to contact us.
