Home > Products > Electronics > Identity Marking heat shrink tube

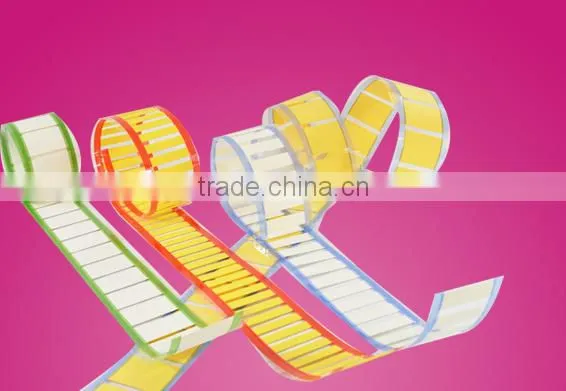

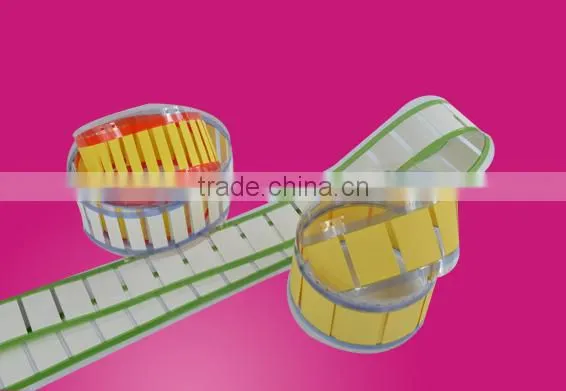

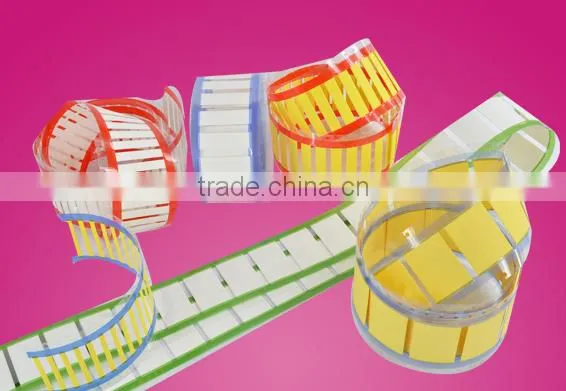

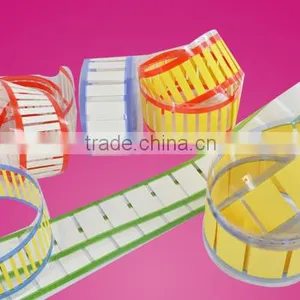

Identity Marking heat shrink tube
Negotiable
/ Meter
100 Meters(Min.Order)
- 10000 Meter / Meters per Month
- Dalian
- T/T Credit Card
You May Like
Product Details
| Place of Origin: | China | Brand Name: | UPM | Model Number: | IDS-HF125 |
| Type: | Heat Shrinkable | Material: | PE |
Product Description
Specifications
Shrink ratio 2:1&3:1Flame resistant: UL VW-1 Grade
Marking heat shrink t
Comply with RoHS
marking heat shrink tube
S2(s) Ultra Thin Wall Heat Shrinkable Tubing
Voltage Class 300V Ideal for low voltage electrical insulation, wire harness bonding & ID Labeling/Marker
Provide excellent flame resistance, insulation, soft & flexible, with low shrink temperature for fast installation.
Applications
Wire terminal insulation
Wire bundling
Identification marker
Insulation and protection of low voltage electrical / electronic components
Features/Benefits
Shrink ratio 2:1&3:1
Flame resistant: UL VW-1 Grade
Soft & fexible
Low shrink temperature, reduce installation time and minimize the risk of damage to temperature-sensitive electronic components during installation
Temperature Range
Operating Temperature : -40~ 90 ºC
Shrink Temperature : 90 ºC
Colour:Red, Blue, Yellow, Black, Green, Transparent
Product Code Cross References
Raychem/Tyco : VERSAFIT V4
DSG Canusa : DERAY®ITW
Sumitomo : F3(Z)
LG : GSHS-1625GT
Technical Details
Test Item | Test Method | Typical Value |
Tensile strength | ASTM D2671 | ≥ 10Mpa |
Break down elongation | ASTM D2671 | > 400% |
longitudinal shrink ratio | ASTM D2671 | ±5% |
Heat shock (200) | ASTM D2671 | No drop/no flow |
Flame retardant | ASTM D2863 | Oxygen Index >27 |
Dielectric strength | ASTM D2671 | > 15kV/mm |
Volume resistivity | ASTM D2671 | > 1014Ω.cm |
Water absorption | ASTM D570 | < 0.5% |
