Home > Products > Electronics > Colored cable wire heat shrinkable sleeve

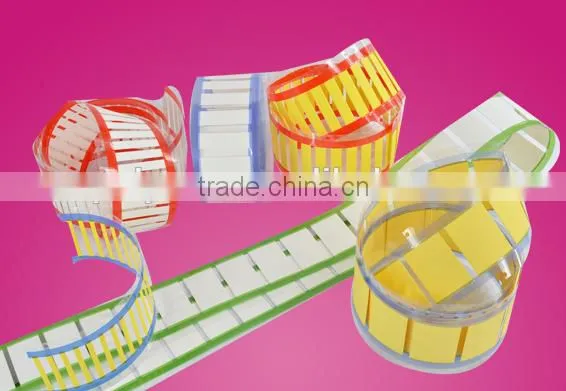

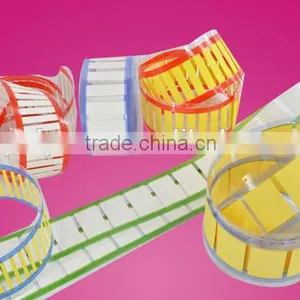

Colored cable wire heat shrinkable sleeve
Negotiable
/ Meter
1000 Meters(Min.Order)
- 5000 Meter / Meters per Month
- Dalian
- T/T
You May Like
Product Details
| Place of Origin: | Liaoning, China | Brand Name: | UPM | Model Number: | S2n |
| Type: | Heat Shrinkable | Material: | PE |
Product Description
Specifications
1.Halogen free flame retardant thin wall H.S.T2.Environment friendly
3.Shrink ratio :2:1; 3:1;4:1
4.RoHs compliance
S2(n) Halogen free flame retardant thin wall H.S.T
Halogen Free Heat Shrinkable Tubing
Voltage Class 600V~1kV Ideal for electronic wire and component insulation and protection
Heat Shrinkable tubing with all new halogen free formula. Environmental friendly, will not produce toxic smoke or harmful substance such as dioxin when burned. Excellent performance of insulation, elasticity and flexibility.
Applications
Commonly used for electronic insulation and protection, strain relief and wire bundling. Common application would be in the electronic systems of subway, airplane, submarine, and other control room facilities / sealed environment.
Features/Benefits
Shrink Ratio: 2:1, 3:1, 4:1
Halogen Free, Environmental Friendly
Comply with RoHS health & safety regulation
Temperature Range
Operating Temperature : -40 ~ 125 oC
Shrink Temperature : 125 oC
Color:Red, Blue, Yellow, Black, Green, Transparent
Standard Compliance: RoHS
Product Code Cross References
Raychem/Tyco : VERSAFITV2
DSG Canusa : DERAY?H
Sumitomo : F2(Z)
LG : GSHS-1625
Technical Details
Test Item | Test Method | Typical Value |
Tensile strength | ASTM D2671 | ≥ 10Mpa |
Break down elongation | ASTM D2671 | > 400% |
longitudinal shrink ratio | ASTM D2671 | ±5% |
Heat shock (200) | ASTM D2671 | No drop/no flow |
Flame retardant | ASTM D2863 | Oxygen Index >27 |
Dielectric strength | ASTM D2671 | > 15kV/mm |
Volume Resistivity | ASTM D2671 | > 1014Ω.cm |
Water absorption | ASTM D570 | < 0.5% |
