bus bar protection tube

Specifications

24-36kV
Red and black busbar heat shrink tube
flame retardant or non flame retardant
Rachem BBIT/BPTM

 S1

Bus Bar Insulating Heat Shrinkable Tubing

Voltage Class 1kV~36kV

Medium and heavy wall heat shrinkable tubing for protection and insulation of bus bar against accidents caused by electrified bare bus bar.



Applications

          Bus bar insulation and protection

          In switchgear cabinets where space is limited and air spacing between bus bars need to be kept at minimal



Features/Benefits

         Reduces bus bar clearance requirements^* , allow designers more freedom in designing switchgear cabinets when space is premium

          Protects against accidental flashover up to 36kV

          Protects against short circuit and electrical leakage caused small animals

          Protects against corrosion, dirt and other contaminants that may cause accidental flashover

          Halogen Free (optional)

          Flame resistant with oxygen index higher than 27 (optional)

          Available in continuous length roll form for convenient and economical installation



Temperature Range

       Operating Temperature  : -40 ºC ~ 105 ºC

       Shrink Temperature              : 125 ºC



Colour

       Red, Yellow, Black, Green



Product Code Cross References

       Raychem        : BBIT / BPTM

       DSG Canusa           : CBTM / CBTH

       3M                        : BBI



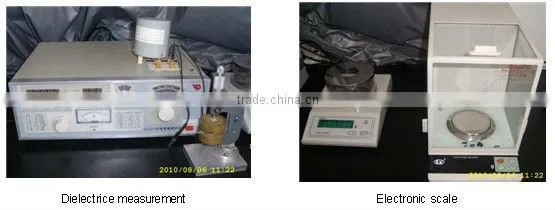

Technical Details

Test item	Test Standard	Typical Performance
Tensile strength	ASTM D2671	≥10 Mpa
Break down elongation	ASTM D2671	≥400 %
Tensile strength after aging	ASTM D2671,	≥10 Mpa
break down elongation after aging (136 for 168h)	ASTM D2671	≥400 %
Flame retardant	ASTM D2863	Oxygen Index ≥27
Dielectric strength	ASTM D2671	≥15 kV/mm
Heat shock (200 for 4h)	ASTM D2671	no drop, no flow
Low temperature flexibility (-40 for 4h)	ASTM D2671	no cracking
Water absorption	ASTM D570 A	≤0.5 %
Copper corrosion  (158 for 168h)	ASTM 2671	pass
Long term ageing/ elongation at break	IEC 60684-2	≥175%
Resistance to selected fluids: Tensile  strength                        Elongation at break	IEC 60684-2	>8Mpa >250%



Product Selection

a + b min. ~ max.		d min. ~ max.		S1-10	min. thickness for 10kV-24kV shrink on the bus bar	S1-35	min. thickness for  24kV-36kV shrink on the bus bar
15	25	10	18	Φ25/10	1.6	Φ25/10	2.5
22	35	15	25	Φ30/12	1.6	Φ30/12	2.5
28	45	20	30	Φ40/16	1.6	Φ40/16	2.5
38	55	25	40	Φ50/20	1.6	Φ50/20	2.5
45	65	35	50	Φ65/25 (Φ75/30)	1.6	Φ65/25 (75/30)	2.5
55	90	40	60	Φ85/35 (80/32)	1.6	Φ85/35 (80/32)	2.5
70	110	50	80	Φ100/40	1.6	Φ100/40	2.5
90	140	60	95	Φ120/50	1.6	Φ120/50	2.5
105	180	70	120	Φ150/60	1.6	Φ150/60	2.5
130	210	85	140	Φ175/75	1.6	Φ175/75	2.5
140	260	95	170	Φ210/85	1.6	Φ210/85	2.5
