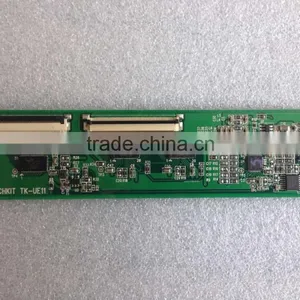

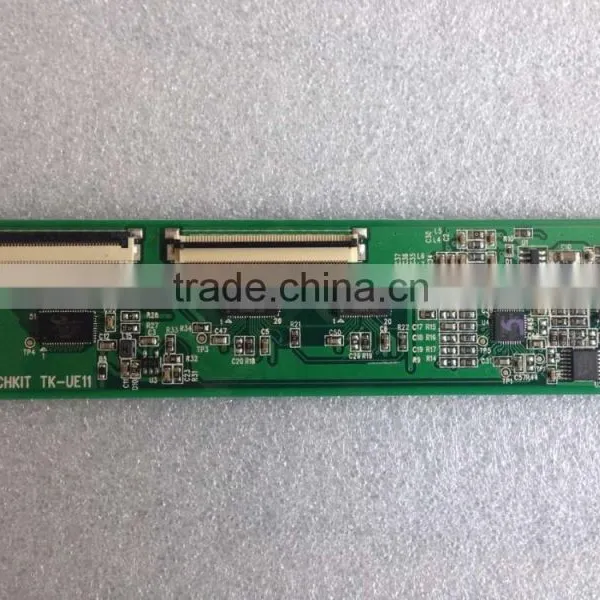

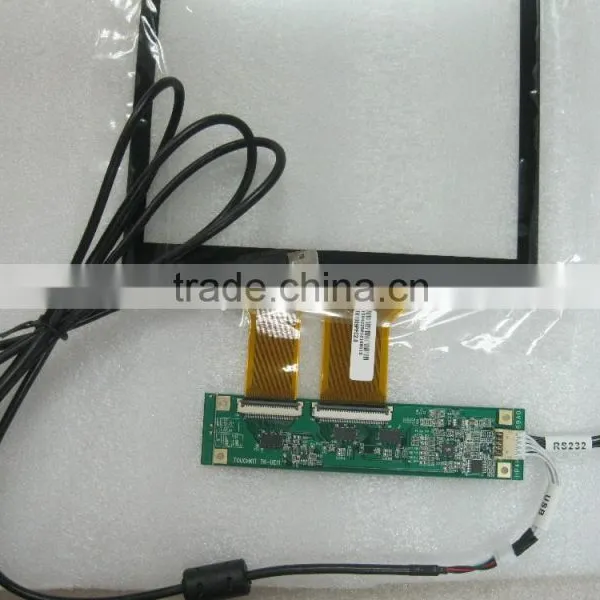

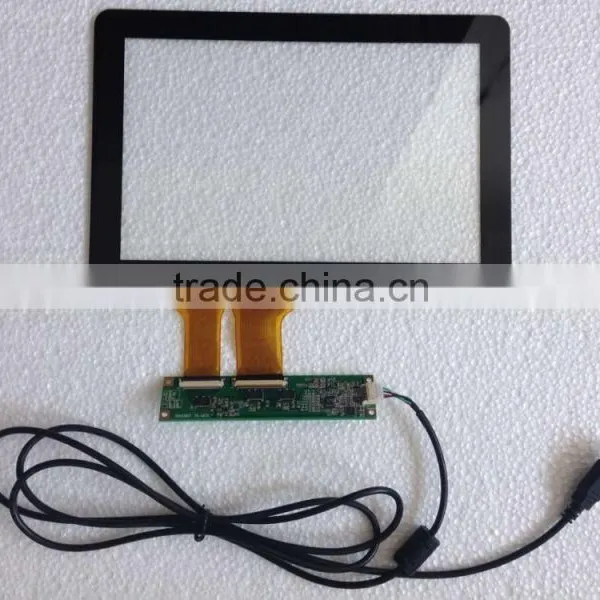

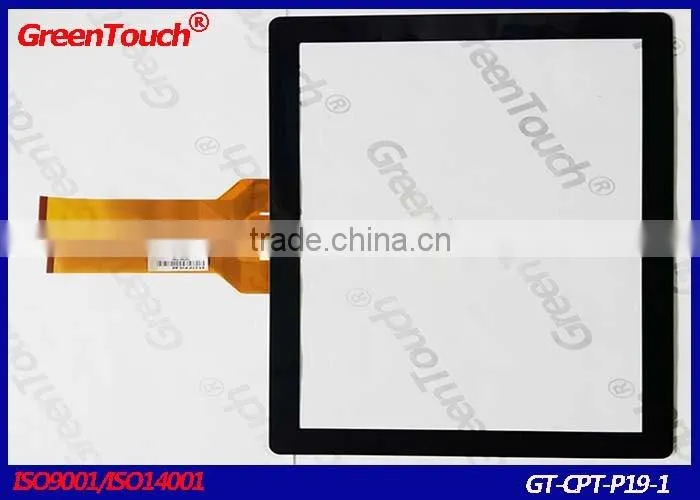

19inch Capacitive Touch Panel,projected Capacitive Touch Screen(PCAP) USB Controller

Capacitive touch screen technology

Capacitive touch screen is a four-storey glass screen surface and laminated within the glass screen is coated with a layer of ITO, the outermost layer is a thin layer of silica glass, laminated ITO coating as a face, four electrode leads in the four corners, inner ITO good shielding to ensure a good working environment.
    When finger touch the metal layer that is, because the body farm, users and touch-screen surface with a coupling capacitor, high frequency current, capacitance is a direct conductor, so fingers sucked away a very small amount of current from the contact point. The respectively current outflow from the touch electrode on the four corners of the screen, and flows through the four electrode current is proportional to the distance from the fingers to the four corners, controller through the accurate calculation of the four current percentage, came to the location of the touch point.

1. Interface Type:	USB
   Resolution	4096x4096
   Screen Ratio	4:3
   Material	Glass + Glass or PET + Glass
   Certificates	CE, FCC, RoHS
   Input method	Finger or touch pen
   Position accuracy	2~5mm
   Operating Voltage	3.3V adjustable
   Operating current	2.5~10mA Depends on IC
   Response time	Less than 10ms
   Touch action force	30~60g
   Operating temperature	-10°C~60°C
   Storage temperature	-20°C~80°C
   Surface hardness	≥7H
   Working environment	Under sunlight, indoor and outdoor
   Transparency	≥92%
   Isolation resistance	≥20MΩ DC 25V
   The number of hits	≥50000000/point
   Warranty	1 year
   Support Systems	Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

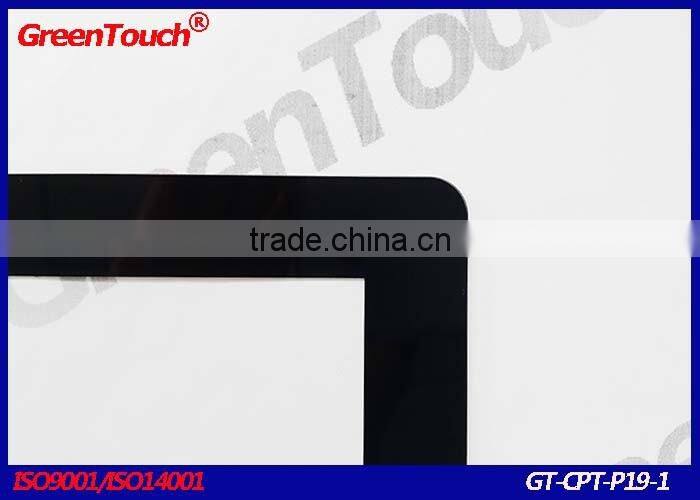

   3. Picture Show

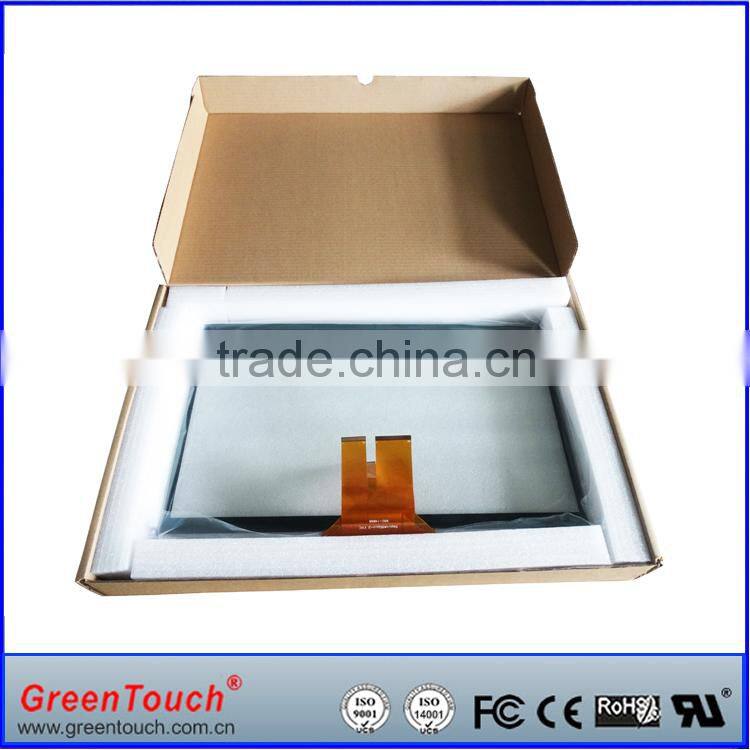

   4. Shipment and Payment



   5. Factory Show
