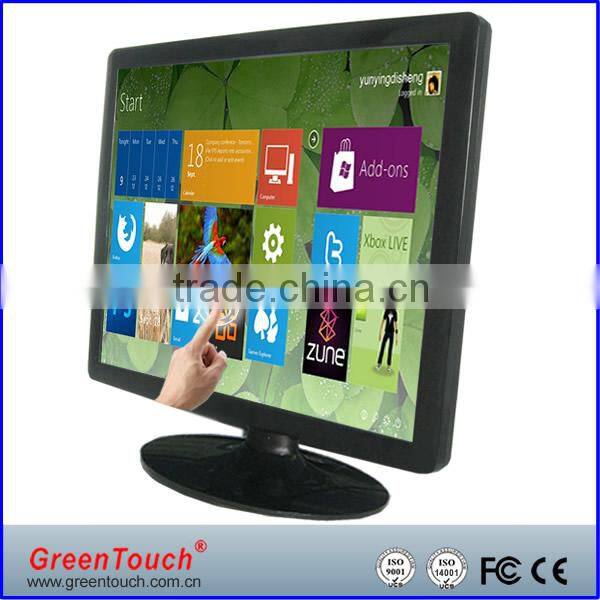

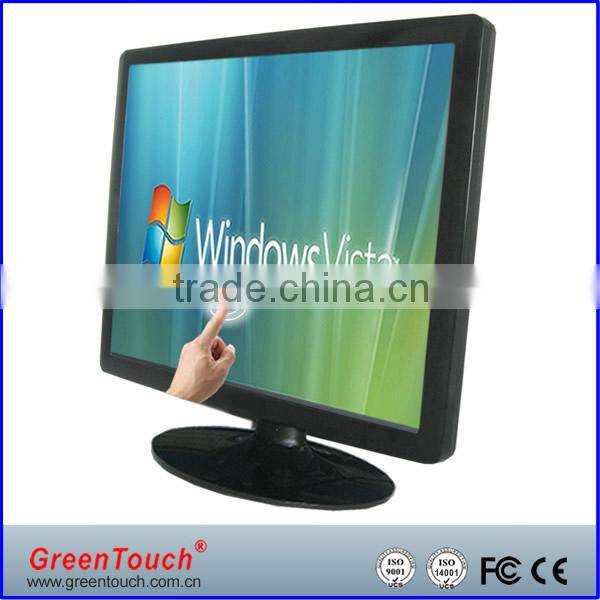

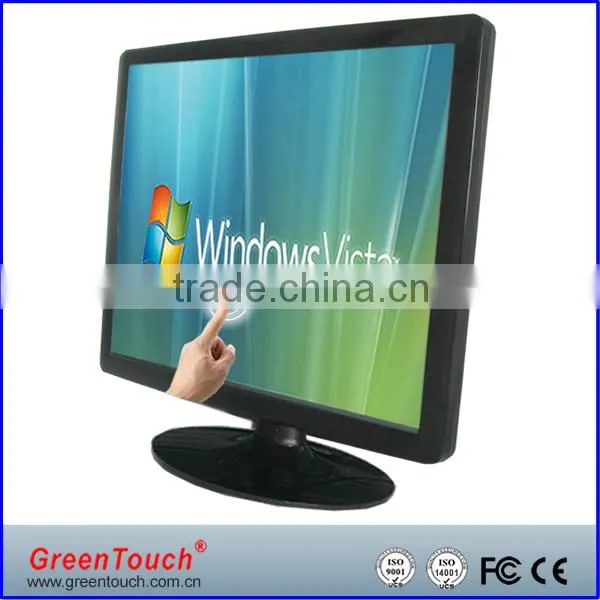

22'' High Resolution Computer Monitor,industrial Touch Desktop Monitor,TFT LCD Resistive Screen Monitor With VGA,DVA

Specifications

22'' desktop touch monitor
All in one touch monitor
HD resolution high contrast ratio
fast response wide angle
Low pric

                         22 inch desktop touch monitor







Skype:touchscreensales

Product specifications and parameters:



  Slim housing and stylish design base,made the touch monitor with compact and elegant appearance.On the back of touch monitor left 75mm*75mm spcing standard VESA hole for hanging installation .



Model Number	GT-TMO220A
Display type	TFT LED panel
Screen Ratio	16:10
Resolution	1680X1050
Active area	475X292(mm)
Brightness	300cd/m2
Contrast Ratio	1000:1
Support color	16.7M
Response time	8ms
Pixel Pitch	0.297x0.297mm
Viewing Angle	Horizontal(L/R):85°/85° Vertical(Up/Down):80°/80°
Video input	DVI,VGA
Scan Frequency	Horizontal:30~80KHz ,Vertical: 56.3~75Hz
Power Input	Support AC 100 ~ 240V,50 ~ 60Hz,DC12V-3A
Environment	Operating temperature:0 to 50°C Storage temperature:-20 to 60°C
	Operating humidity:20% to 80% Storage humidity:10% to 90%
Mean Time Between Failure (MTBF)	30,000 hours
Backlight working life(Typ.)	50,000 hours
Touch screen Type	4/5 wire resistive,SAW,IR Optical touch screen (can be selected)
Touch life	Over 5,00 million times
Touch object	Finger or touch pen
Touch screen interface	USB or RS232 interface
Power consumption	Max 30W
Certificates	CE, FCC
Button	POWER,MENU,AUTO,UP,DOWN
Warranty	1 year







Shipping and payments

Note: DHL/UPS/Fedex Express usually take about 3 ~7working days to the destination, and it is about 5~10 work days by EMS or TNT, Hongkong post air mail and Hong post Air Parcel takes 7 to 30 days to ship to worldwide.



Certificates

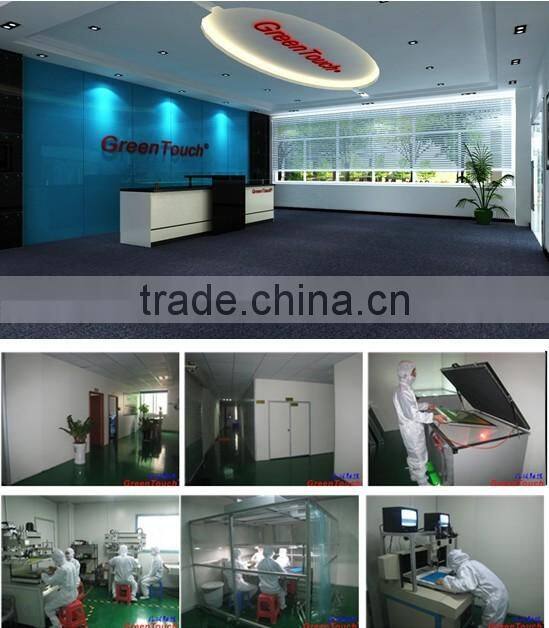

Factory shows:



(If I'm off line, would you send a massage to me or email please ? i will reply within 12hours .)
