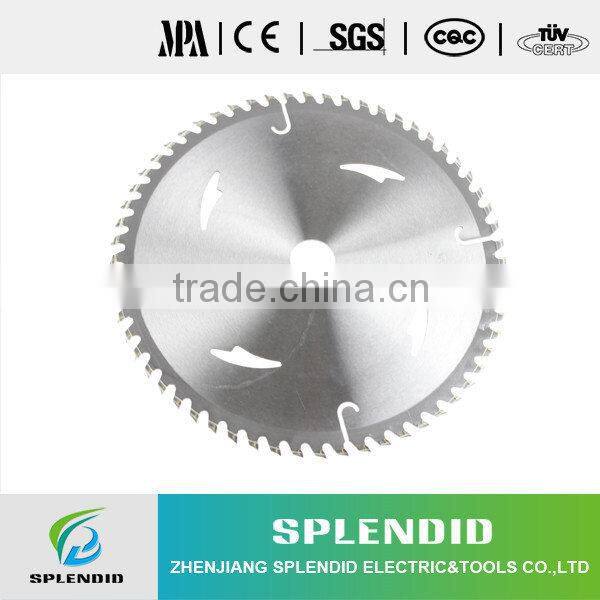

110/230mm thin kerf circular saw blade

Specifications

thin kerf circular saw blade
1. Size: 110mm-500mm
2. Material: No. 50 Steel or the other
3. Certificate: JIS, TUV, ISO9001

110/230mm thin kerf circular saw blade

Specifications

1.Size: 110mm--300mm

2. Body material:  No. 50 Steel or the other

3. Standard:  JIS, TUV, ISO9001  & MPA certificate

4. fast cutting ability and good heat dissipation

5. long working life, high precision and low noise

6. Package:  color box, double blister card, skin packing, white box etc.

Product Name	saw blade for wood cutting
Body material	No. 50 Steel, 65Mn, SKS-5 or others
Outer Diameter	110mm—300mm
Body thickness	1.2mm—3.8mm
Bore Size	20mm/25.4mm/30mm
Body hardness	HRC 40 - 42
Teeth No.	16T—140T
Teeth type	ATB/TCG /Flat teeth
Tip material	Common / YG8 /Zhuzhou tip or the other
Finishing	Polishing, Electroplating, Cataphoresis
Surface Finish	Powder Painting ( Black/ Gray) , Sand Blasted or color painting
Application	Suitable for wood, plywood, veneer, hardboard, fiberboard, laminated panels, chipboards, MDF etc.





Our available saw blade Size





Size(Inch)	Diameter(mm)	Number of Tip	Bore(mm)	Body Thicknes
4	110	16T-40T	20	1.2/2.2
5	125	16T-60T	25.4	1.6/2.6
6	150	16T-60T	25.4	1.6/2.6
7	180	16T-80T	25.4	1.6/2.6
8	200	18T-90T	25.4	1.6/2.6
9	230	24T-100T	25.4	2.0/3.0
10	250	24T-120T	25.4/30	2.0/3.0
12	300	24T-120T	25.4/30	2.4/3.4
14	350	30T-140T	30	2.4/3.4
16	400	36T-140T	30	2.8/3.8
18	450	40T-140T	30	2.8/3.8
20	500	40T-160T	30	2.8/3.8







Hints and Tips



1. Keep wearing eye and face protection while you are doing cutting works!

2. Do not wear loose clothes, jewelry and gloves!

3. Never fit or change the saw blades while the tools are working or the plug is still connecting!

4. Please remember use the right size of saw blade with suitable power tools!

5. This kind carbide saw blade is designed for cutting wood, plywood, veneer, hardboard,

    fiberboard,laminated panels, chipboards, MDF etc.

Do not use it for cutting concrete, stone, metal or other similar material!



Q1:When can I get the quotation ?

A1:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the

      price, please call us or tell us in your email so that we will regard your inquiry priority.

Q2:How can I get a sample to check your quality?

A2:After price confirmation, you can require for samples to check our quality.

      If you need the samples, we will charge for the sample cost .But the sample cost can be

      refundable after order confirmation when your quantity of the order is more about the MOQ.

Q3:How long can I expect to get the sample?

A3:Sample will be 7days.

Q4:What is your MOQ?

A4:200pcs for each item, we accept little trial order.

Q5:What about the lead time for mass production?

A5:Honestly, it depends on the order quantity and the season you place the order. The lead time

     is about 20 days. Generally speaking, we suggest that you start inquiry two months before the

     date you would like to get the products at your country.

Q6: What is your terms of delivery?

A6: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or

       cost effective for you.
