Help CenterLowest Price for 4/5wire15.6"resistive Touch Panel ,glass Touch Screen Monitor
Related Products
-
5 Wire Resistive Touch Screen Panel Kit 15 Inch Resistive Touch ScreenUS$ 25.80 - 25.80MOQ: 1 Set -
Hot Wholesale 4W/5W Resistive Touch Screen Touch Panel With All SizesUS$ 1 - 99MOQ: 1 Piece
-
Lowest Price for 4wire15"resistive Touch Panel ,glass Touch Screen MonitorUS$ 1 - 99MOQ: 1 Piece
-
18.5 Inch 5 Wire Resistive Touch Screen With USB/RS232 Interface for ReplacementUS$ 1 - 25MOQ: 1 Piece
-
17 Inch 5 Wire Resistive Touch Screen With USB/RS232 Interface for ReplacementUS$ 1 - 25MOQ: 1 Piece
4 wire 5inch resistive touch screen
we accept Neutral(nil logo)OEM,you can link here and looking for touch screen you interested in.
Specifications :
4 Wire Resistive Touch Screen/Touch Screen/Resistive Touch Screen
1.1 Environmental characteristics:
NO. | Item | Specification |
1 | Operation temperature | -10°C~+60°C |
2 | Storage temperature | -20°C~+70°C |
1.2 Electrical characteristics :
NO. | Item | Specification | Remarks |
1 | Rated Voltage | DC 5V 1mA |
|
2 | Linearity | 1.5% | Load 120gf |
3 | Resistance | Film side: 200Ω~1250Ω | FPC At connector |
Glass side:100Ω~500Ω | |||
4 | Insulation Resistance | 20 MΩ | DC 25V |
Mechanical characteristics:
NO. | Item | Specification | Remarks |
1 | Operating force | 20-150g | R0.8 |
2 | Hardness of surface | ≥3H | JISK5400 |
3 | Light Transmission | ≥80% |
|
4 | FPC Bending | Bend radius 1.0mm,above 3 times | Content 3.2 |
5 | FPC peeling strength | Horizontal direction 180degree,0.5kgf Will not peel within 10 minutes | Content 3.2 |
Reliability test :
NO. | Item | Specification | Remark |
1 | High temperature storage | 50°C, 40hr |
|
2 | Low temperature storage | -30°C, 40hr | |
3 | High temperature high Humidity storage | 70°C,70%RH,120hr | |
4 | Temperature Cycling | -20±2°C — 70±2°C (0.5hr each),10cycles | |
5 | Input life | More than 5,000,000 times (Tip R0.8mm) |
|
6 | lineation test | More than 100,000 times (Tip R0.8mm) |
|

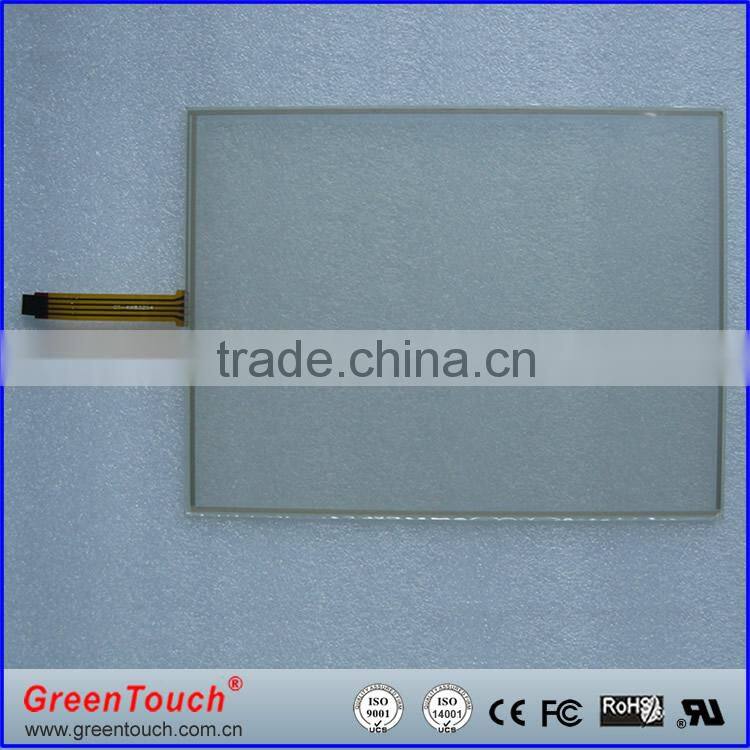

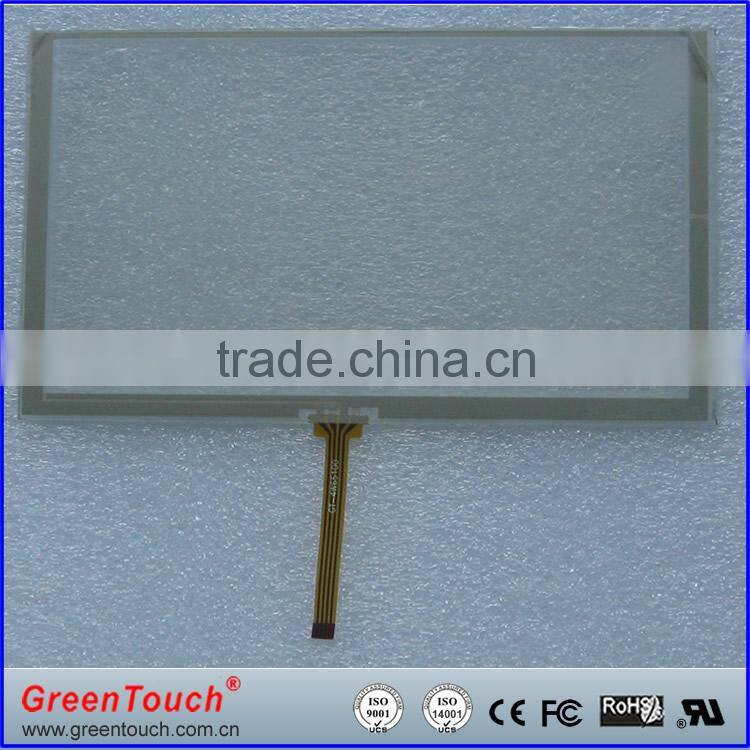

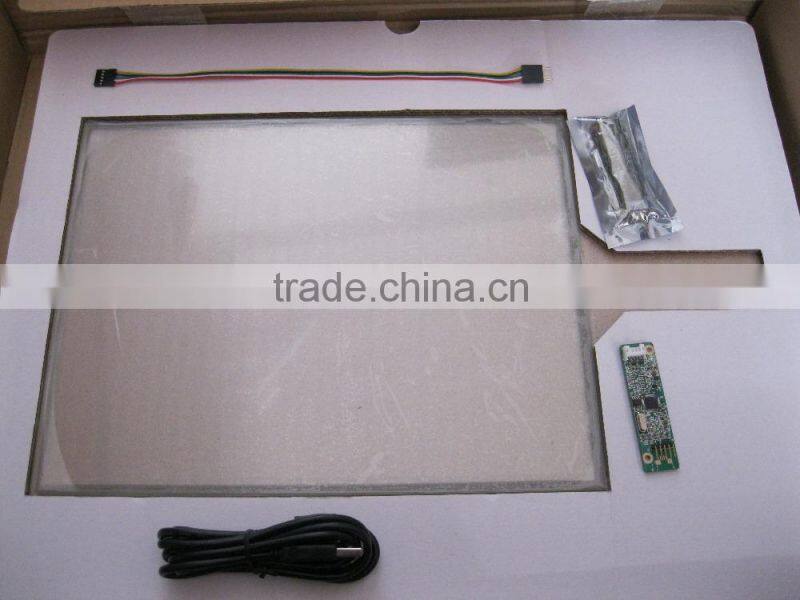

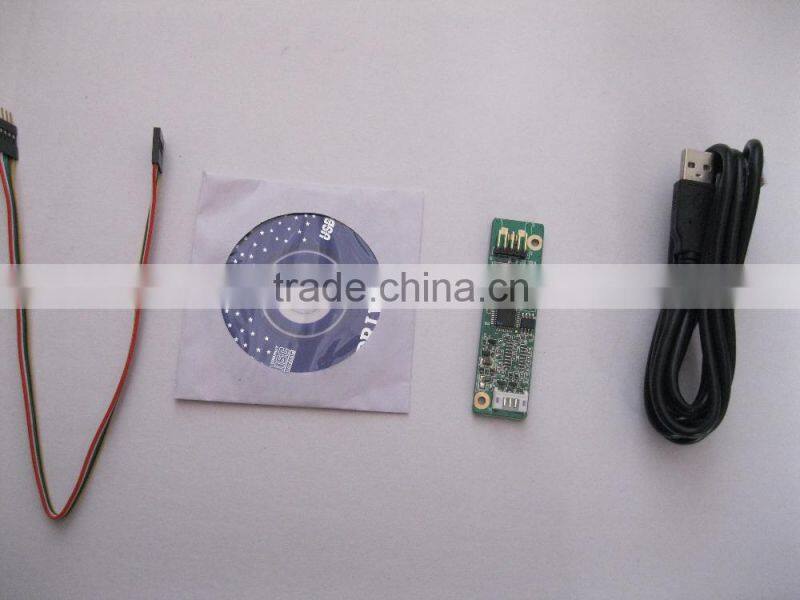

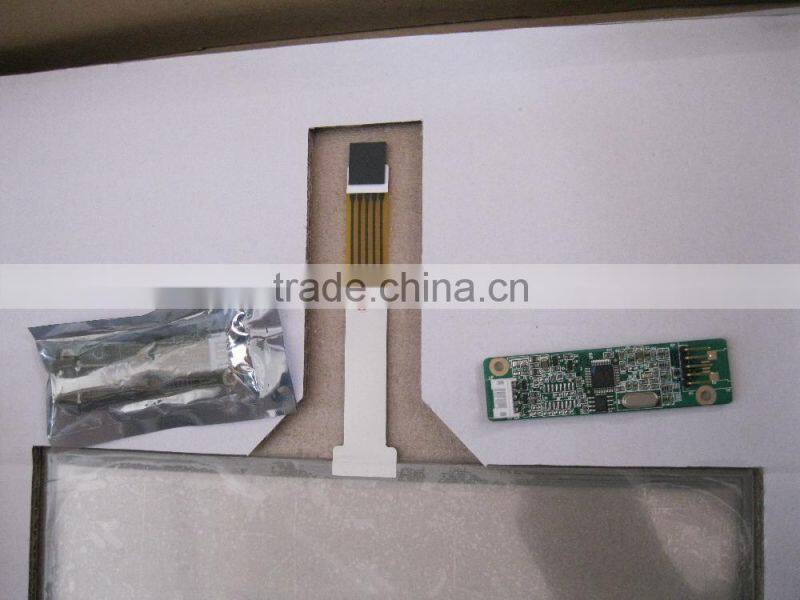

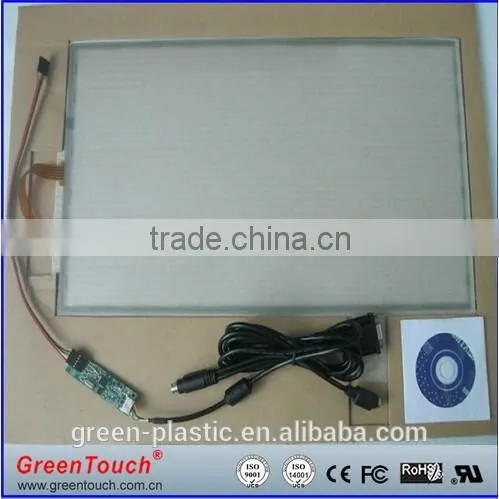

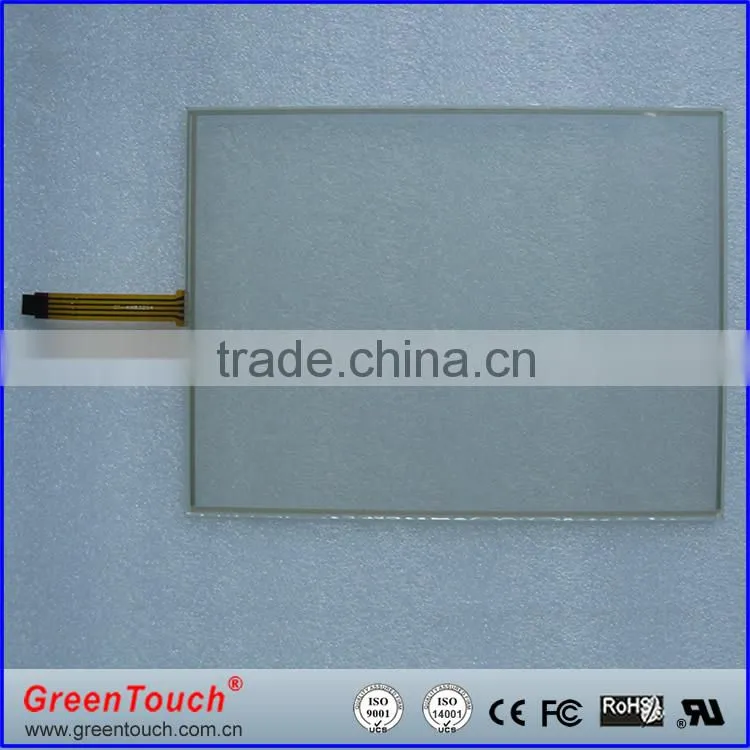

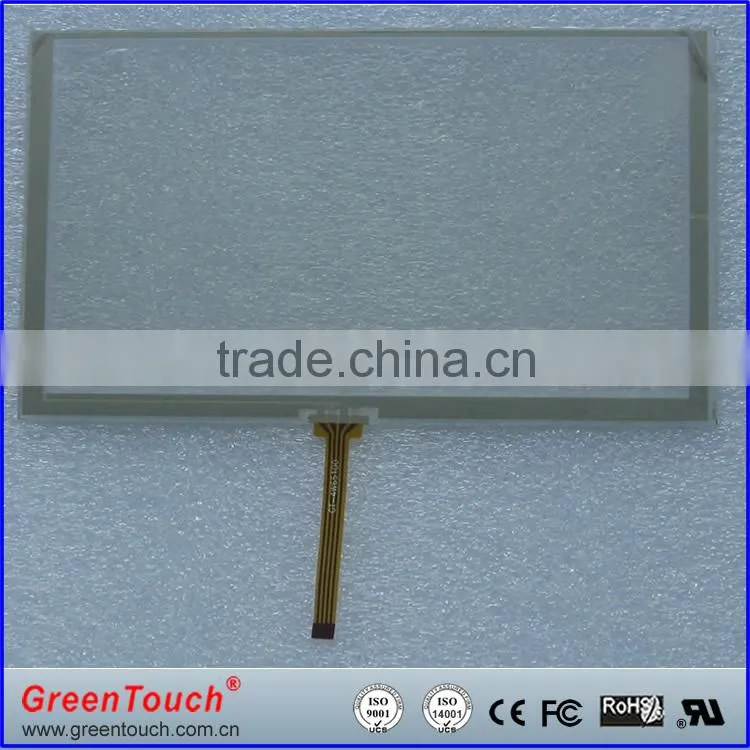

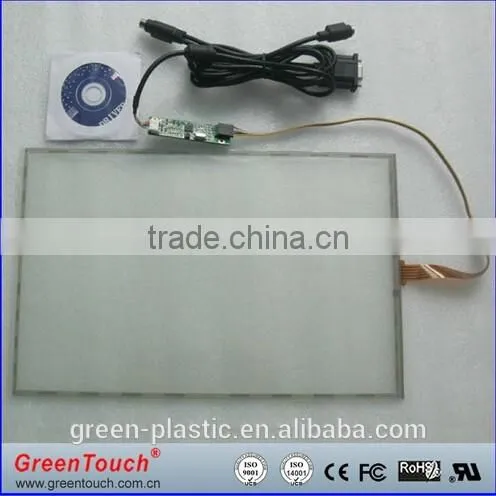

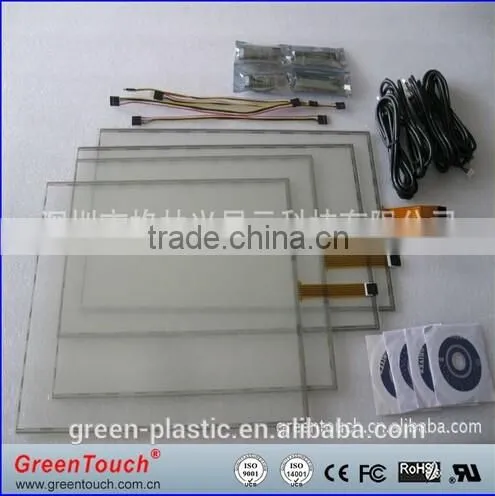

Products shown :
Green Touch certification approved:

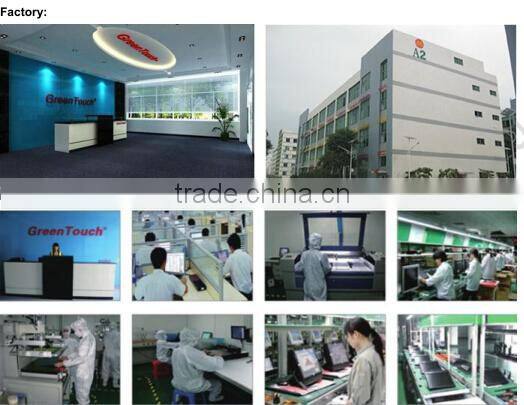

Green Touch Factory shown:
Also can selected Products from our website:
we accept Neutral(nil logo)OEM,you can link here and looking for touch screen you interested in.
