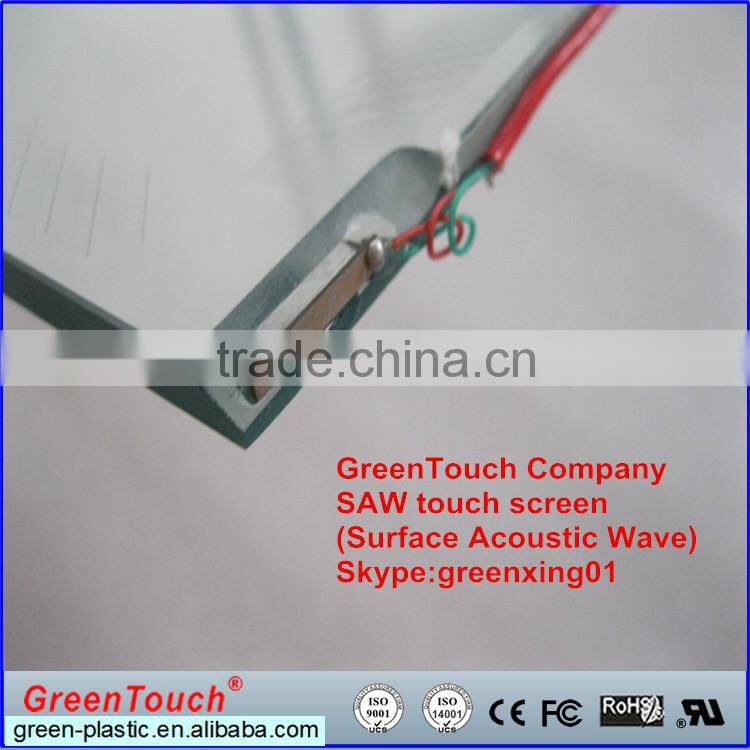

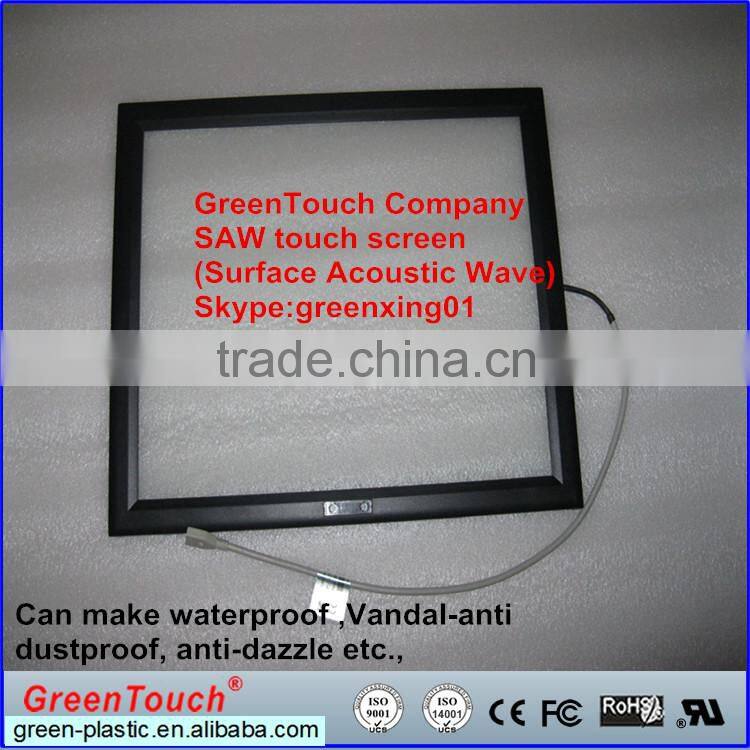

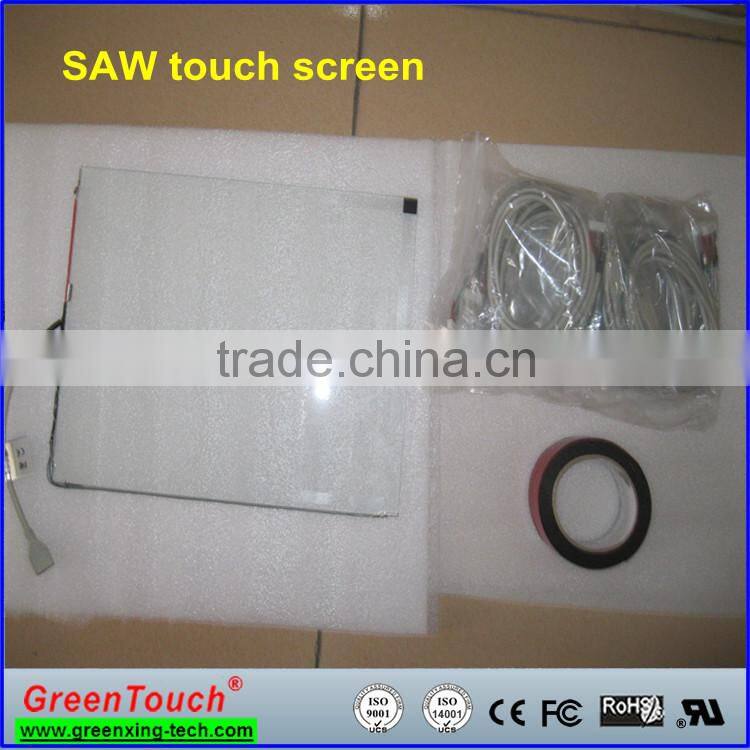

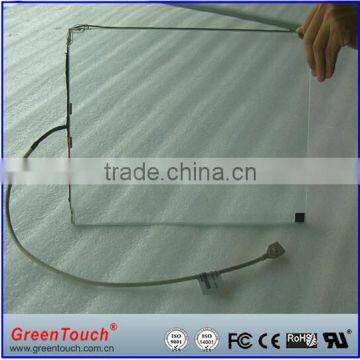

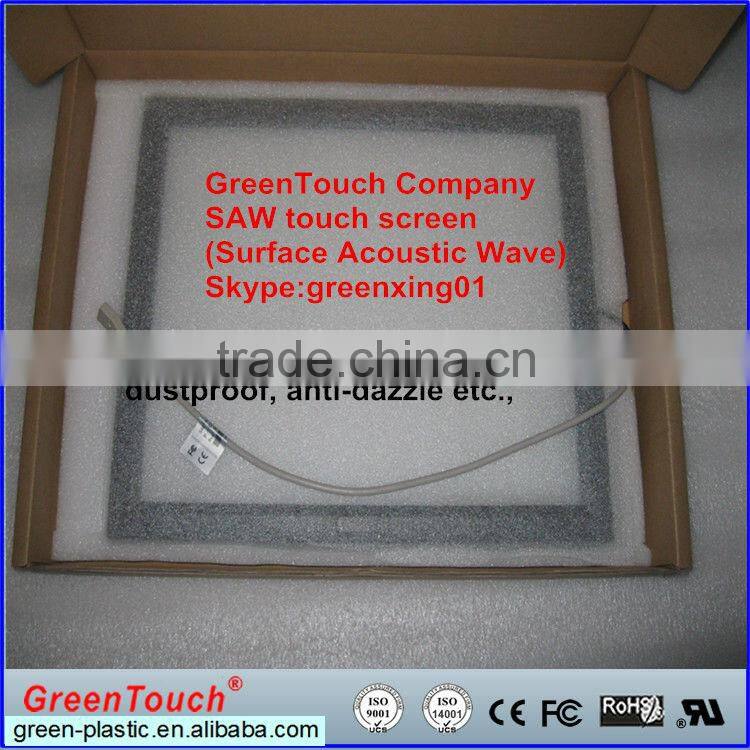

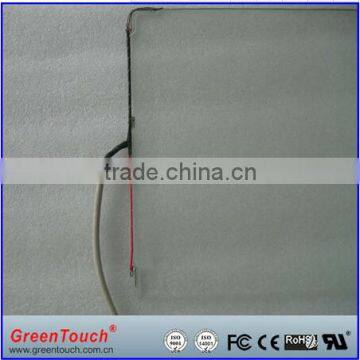

SAW(Surface Acoustic Wave) touch screen/panel
SAW touch screen.Dual touch is available for the small size touch screen.
Size :(10.4" to 42'' are available)
Feature Standard: (Anti-glare, Dustproof and waterproof, Vandaproof are available for the small size)
Advantages: Application :
1. Superior image clarity with high light transmission (1) Point-of-information kiosks
2. Sensitive and fast response (2) Vending and ticket sales kiosks
3. Durability, deep scratch resistance and abrasion (3) Gaming, lottery and amusement
4. Highest resolution (4) Banking/financial transactions
5. Activated by finger, gloved hand leather or soft stylus (5) Industrial control room
6. More than 50 million touches in a single point (6) Computer-based training
7. Dirt and splash sealed capability (7) Electronic catalogs & Multimedia marketing
Specification :
Technology: | SAW (Surface Acoustic Wave Touch Screen) |
Material: | Pure glass |
Thickness | 3mm, 4mm, 6mm |
Surface Hardness : | Mohs's hardness rating of 4(3mm/4mm) & 7(6mm) |
Resolution: | 4096*4096 |
Transparency: | 90%~92% |
TouchSensibility: | |
Touch force: | < lower than 80g (adjust allowed) |
Accuracy: | <2mm (0.080inch) |
Durability:
| Scratch-free; >500,000,000 touches in one location without failure. |
Touch Medium: | Finger, gloved finger, rubber soft pen etc. |
Operating temperature: | -20 to +60 |
Storage temperature: | -40 °C to +70 °C |
Humidity: | 10%-90% |
Storage Humidity: | 0-95% |
Operation Altitude: | 3800m |

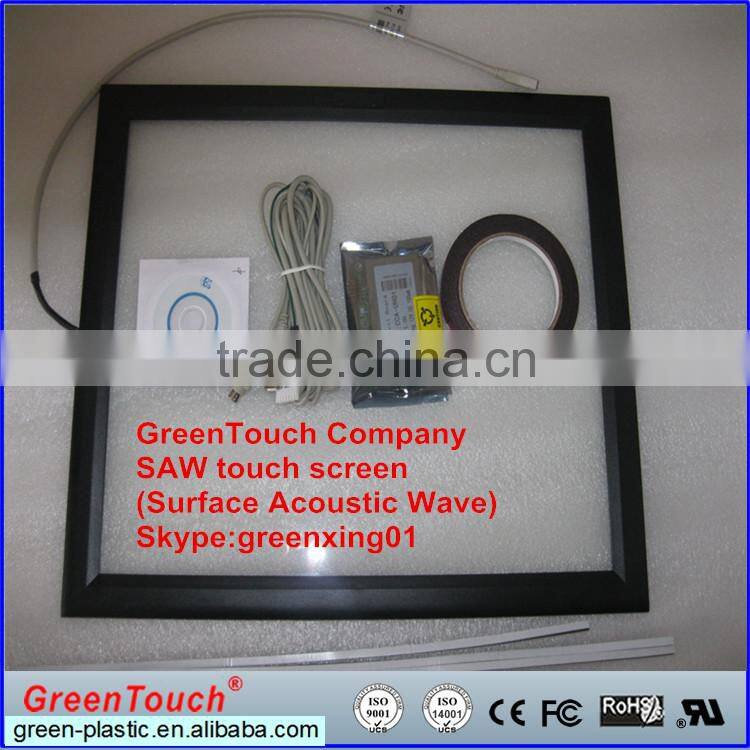

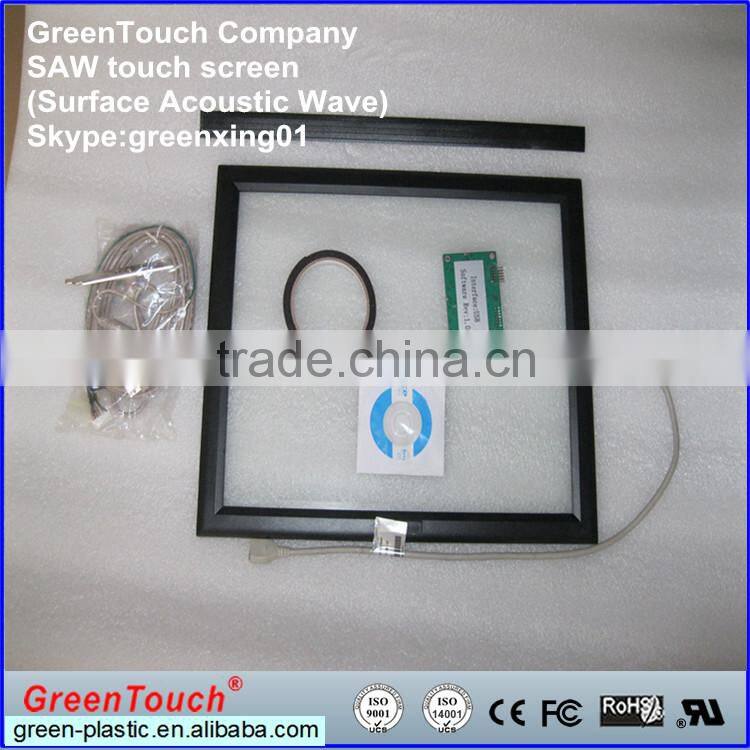

Packinglist: | Accessory Double glue tape, dust-proof tape, Driver CD |
Products show :
If you have any question for our products ,please send it to our email , and we are looking forward to you to visit our factory at any working time , please don't hesitate , now or never !!
Special service for special you !!!!
