combined needle roller bearing NKX35, NKX35Z needle bearing

Tube & Box Marking:1. Laser marking on outer face of outer ring like Brand,

combined needle roller bearing NKX35, NKX35Z needle bearing

Product details

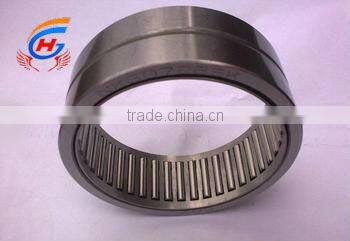

 needle roller / thrust ball bearings in the NKX series combine a radial needle roller bearing and a thrust ball bearing based on the 511 series. They are able to support single-direction axial loads in addition to radial loads. They also permit relatively high-speed operation.

NKX series

NKX series needle roller / thrust ball bearings do not have a cover around the thrust ball bearing. As a result, both the ball and cage assembly and shaft washer can be mounted separately from the rest of the bearing.

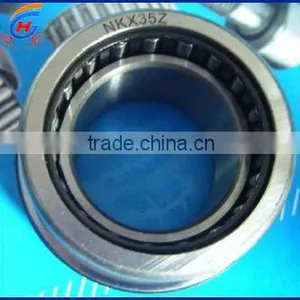

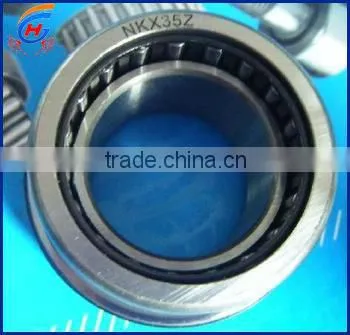

NKX .. Z series

NKX .. Z series needle roller / thrust ball bearings are non-separable. They have a stamped steel cover that extends over the shaft washer of the thrust ball bearing. It is firmly attached to the housing washer that is integral to the needle roller bearing outer ring. The cover makes these bearings non-separable. We  supplies the thrust ball bearing in this series filled, as standard, with a high-quality grease that has good rust inhibiting properties. The cover, which has no lubrication holes, forms a gap-type seal with the shaft washer to retain the grease in the bearing.

Lubrication

   For lubrication, the outer ring has a lubrication groove and lubrication holes. NX and NKX are lubricated with oil. The end cap in NX has lubrication holes. NX..-Z and NKX..-Z are lubricated with grease. The axial bearing component is greased using a lithium complex soap grease to GA08. The end caps do not have lubrication holes.

 Presentation

Hot-selling

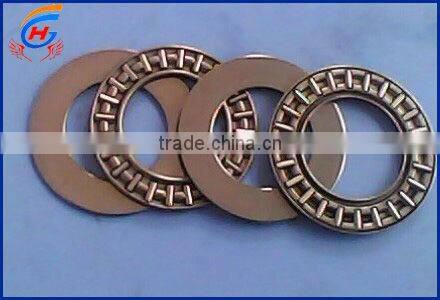

AXK0414TN    AXK0515TN      AXK 6X17X2        AXK 0619         AXK 6X23X2  AXK7X15X1.5TN     AXK 0821TN

AXK10X22X2   AXK 1024         AXK 10X27X2.5   AXK 1226TN    AXK 1528      AXK16X35X4.762

AXK17X33.5X3   NTA-1220      AXK 2035            AXK 2542/P5   NTA-1828     AXK 30X42X2.5       S3401G-013

AXK 3552      AXK43X65X4.9    AXK 5070            AXW 30          AXW 35         AX W40  AX W45
