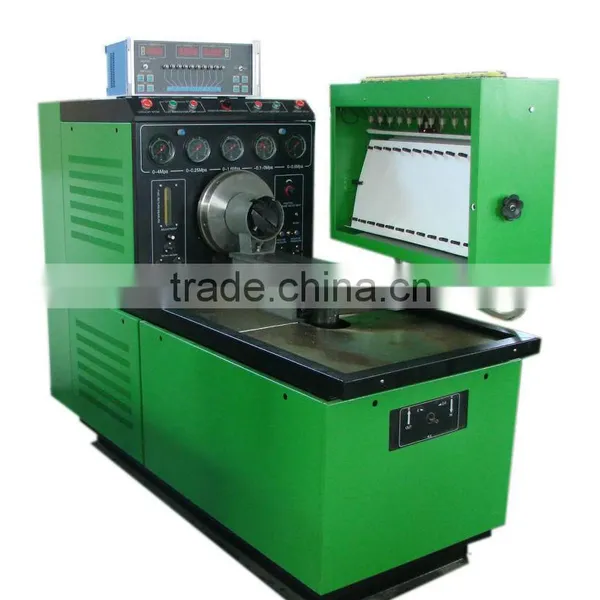

diesel fuel injection pump test bench/stand/bank---GPS916-3

Name: diesel fuel injection pump test bench/stand/bank---GPS916-3
Brand: XINGZHOU
Availability: InStock

FOB Price

USD $3,500 - $4,600 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port qingdao shanghai guangzhou
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Shandong, China	Brand Name:	XINGZHOU	Model Number:	GPS-916
Power:	Electronic	Usage:	Auto Testing Machine

Packaging Details

packing in wooden case
fitting tools with the machine

Product Description

Specifications

1.digital display
2.test count,RPM, air pressure
3.air pressure displayed by gauge
4,temperature controll
5.CE certificate

GPS916 diesel fuel injection pump test bench: (CE certificate)

Technical parameters:

Electronical supply	(3-Phase)380V/50HZ
Interaxe height	125mm
Graduates	45CC or 150CC
Volume of fuel tank	60L
DC.Supply	12/24V
Feeding fuel pressure	(Low):0-0.4Mpa (High):0-4Mpa
Range of speed	+/-4000RPM
Flywheel inertia	:0.8KG.. M2
overall size	210010501680
net weight	900kg

Features:

1.displayed by digital,similar function with Bosch 619,temperature control system

2.Test-bed using static plastic casing, scratch resistance wear resistance, anti-aging novel structure, rational layout, beautiful shape, installation convenient operation, etc.

Functions:

1.Testing 12-cylinder fuel injection pump.

2. Measuring each cylinder delivery at any speed.

3. Checking of each cylinder injection timing with static .

4. Check the pneumatic control performance.

5.Check gas film governor negative pressure performance.

6.Check in advance (advance angle) performance (optional).

Hot Questions:

1.Does your company a distributor or a manufacturer?

Our company is specialized in the producing of the diesel fuel injection test bench by ourselves for more than 10 years, we have our factory,is the manufacture and so can provide you the best price.

2.Is the operation easy?How about the instructions?

Dear customer,we design the machine for the beautiful style and easy operation. We provide the operation instructions with the machine even in your language.And also can provide the operation vedio.

3.Payment method and the delivery time.

We accept bank transfer,Western Union or Paypal. Accept L/C,TT.

The machine will be produced as soon as possible when receive the payment,often within 8 days.

so welcome to your inquiry!!!
