TL-201 Personal gps tracker item tracker

Name: TL-201 Personal gps tracker item tracker
Brand: Toplovo
Availability: InStock

FOB Price

USD $60 - $80 / Unit

1 Unit(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port ShenZhen
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Type:	Other, Gps Tracker, Personal gps tracker	Use:	Automotive	Screen Size:	Other, NO
Function:	Other, Personal gps tracker	Place of Origin:	Guangdong, China	Brand Name:	Toplovo
Model Number:	TL-201 Personal item tracker with free platform serve	Warranty:	12 Months

Product Description

TL-201 Personal gps tracker item tracker

Factory Model name TL is short for TopLovo

Toplovo's Official Website:

Contact: Cherry Skype: cherry-gps Mobile: +8613500066672

There are many ways to check if a company is a real manufactory. Check the company name on the CE&RoHs certificate papers is one of methods.

Please check the CE and Rohs certification on websie: /english/index.html

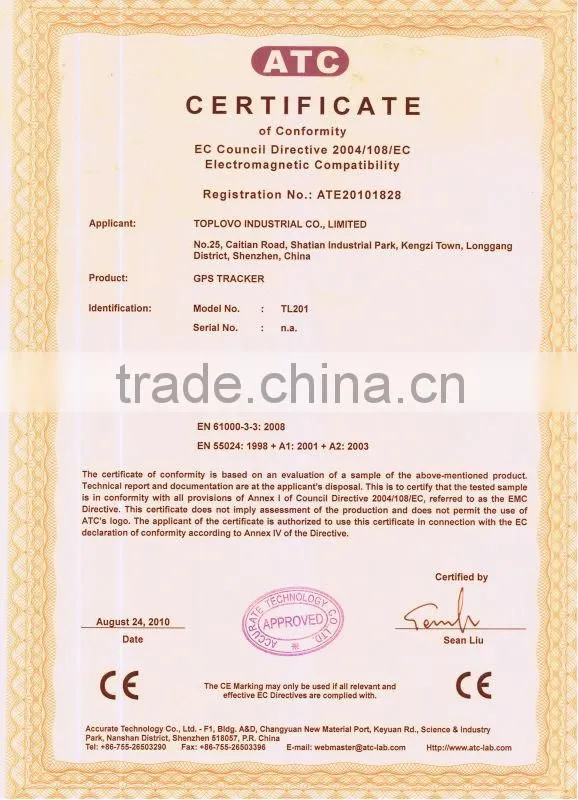

CE ID: ATE20101828 Password: 293146

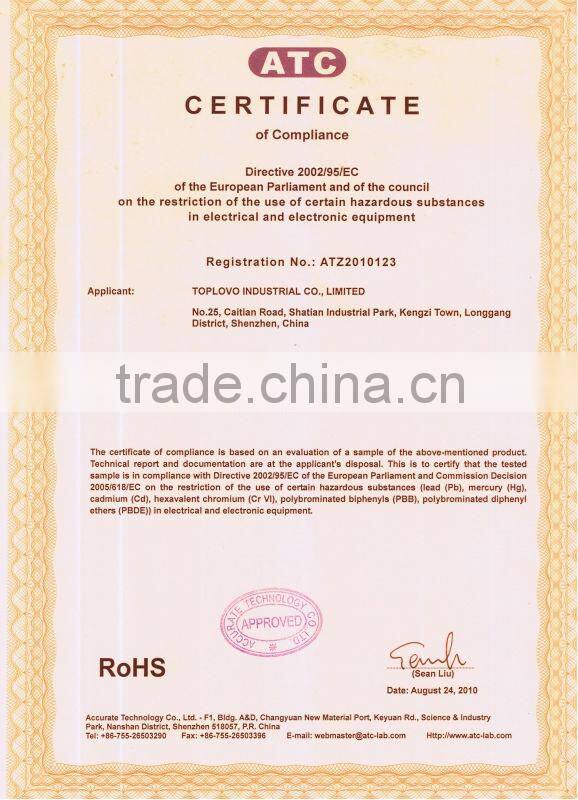

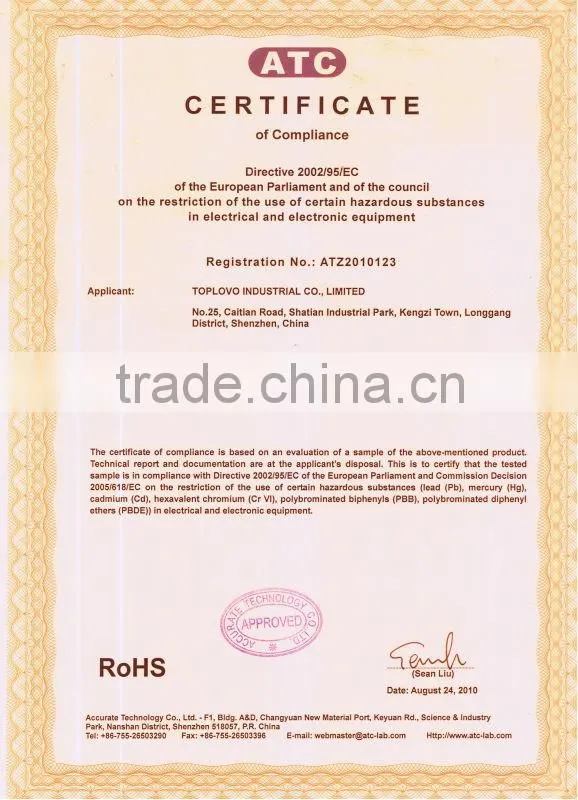

RoHS ID: ATZ2010123 Password: 046323

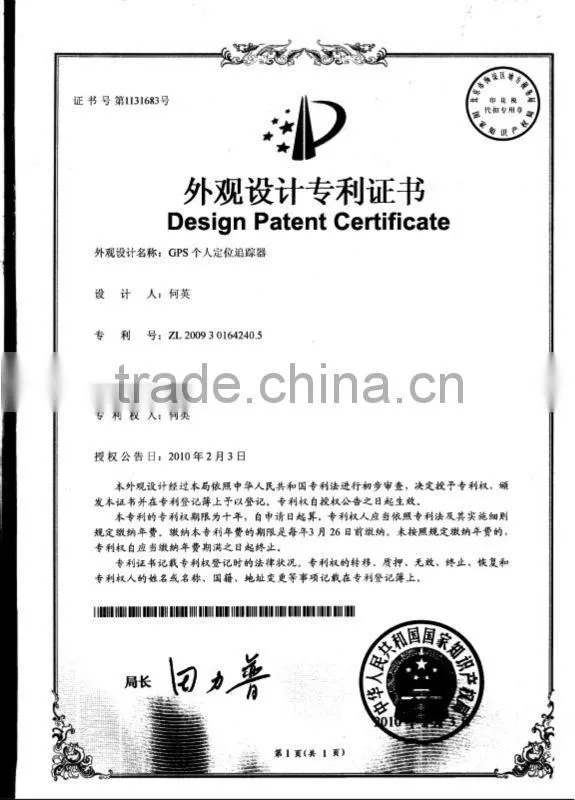

Design Patent

1. Introduction

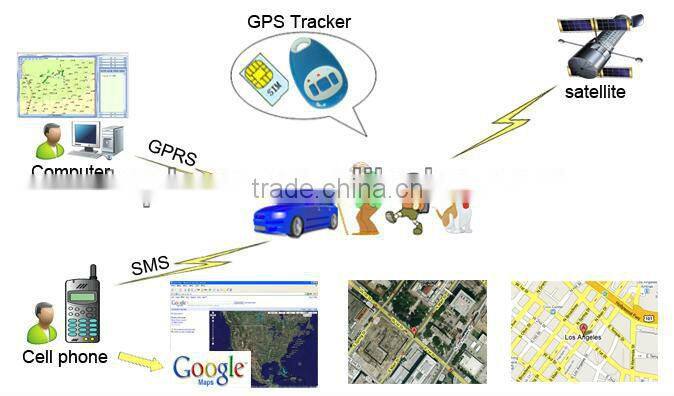

Working Based on existing GSM /GPRS network and GPS satellites, this GPS tracker is a small and powerful tracking device that is developed for personal, vehicle and pet etc. Not only transmit the longitude and latitude coordinate to your cell phone by SMS, but also transmitting the longitude and latitude coordinate to the designated server by GPRS and then displaying the location by tracking software.

2. What's new?
1)Mini size: As small as a car remote controller can be link to the key chain.
2)Excellent design: Especially design for personal using.
3)Hand-free phone call: It supports hand-free phone call.
4)Get position by 3 ways: Search the coordinate in Google map, click the URL and see the position in cell phone directly and view the position and history in tracking software.

3. Main Features
Locating and tracking via SMS or on web
Hand-free phone call
Listen in function
SOS alarm
Geo-fence alarm
Speeding alarm
Low battery alarm

4. Applications
Protect the child/elderly/disabled/pet etc.
Personnel management
Track the vehicle/ equipment etc.
Provide peace-of-mind for businessmen

5. Specification
Dimension: 70.7mm x 42.9mm x 20.1mm
Weight: 40g
Network: GSM/GPRS
Band: 900/1800Mhz or 850/900/1800/1900Mhz
GPS chip: SIRF3 chip
GPS sensitivity:-159dBm
GPS accuracy: 5-20m
Cold start: 42sec.
Warm start: 35sec.
Hot start: 1sec.
Battery: Chargeable 3.7V 800mAh battery

6. Start up

Do charge the battery to capacity in 8 -12 hours for first use. After the first use, the battery can be charged fully in 3-5hours. In order to protect the device please use the battery and charger provided by the manufacturer.

Insert the SIM card into the tracker like this:

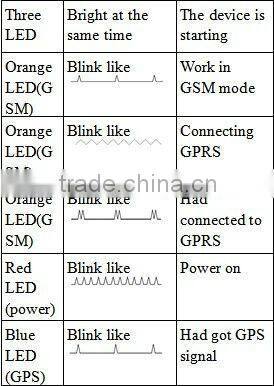

Switch on the unit outdoors. Three LEDs will be bright at the same time during the tracker starting. In 10 to 30seconds, the unit will begin to work and indicators will blink as the following:

7. Get the position by calling the tracker

You can use the authorized numbers to call the tracker SIM number for at least 2 seconds, then hang up the call before the tracker hangs up or receives it. The tracker will reply a position SMS with latitude and longitude in it. You can put the coordinate into Google map and search for the position. The tracker will not reply the SMS If you did not hang up the call before the tracker hangs up or receives it.

The tracker will reply to any incoming call number if you have not set the authorized numbers yet. Once you have set the authorized number, the tracker will reply SMS to the authorized numbers only.

8. Set the authorized number

Send SMS“123456A1,phone number” to set the first SOS number.

Send SMS“123456A2,phone number” to set the second SOS number.

Send SMS“123456A3,phone number” to set the third SOS number.

Send SMS“123456A4,phone number” to set the CALL1 number.

Send SMS“123456A5,phone number” to set the CALL2 number.

Note: 123456 is the default password. ‘A’ and the comma must be English in capital and make sure there is no space in the command. Phone number must include the country code

E.g. send SMS “123456A1,+8613812345678” to set +8613812345678 as the first SOS number. +86 is the country code of China. Please do not use 00 instead of +.

It doesn’t mean that you have to set all of the five authorized numbers, but at least one authorized number. Then the device will only accept the SMS commands from this particular authorized numbers. Besides, you can set one phone number as A1 to A5.

9. Get position by sending SMS command.

Send SMS “123456F” to the device and it will reply its position as well as the location URL by SMS. Only the authorized number can get the reply.

Note: F must be English in capital.

E.g. send “123456F” to the unit. It will reply its position.

The first preset number will take priority over the second one and the third one. If the tracker fails to connect to the first number, it will switch to the second one, In case the second number fail to be connected too, the system will connect to the third number, This will go on and on until one of the telephones picks up, then two-way communication starts.

10. Dial the preset phone number by Call 1 or Call 2.

Press CALL1 button for 3 seconds, the tracker will dial the A4 number. Press CALL2 button for 3 seconds, the tracker will dial the A5 number.

11. Low battery alert

Send SMS “123456(N 0/N1),xx” to set the low-battery alert.

Note: N must be English in capital, N0 means turn off this function; N1 means turn on this function. xx should be <45 and must be 2 numbers.

E.g. send“123456N1,30” to the tracker means when the battery is lower then 30%,it will send an alert to the authorized number. Send“123456N0,30” to the tracker means turn off the low battery alert function.

Cautions:

Please comply with the instructions to extend the unit life:

1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry.

2. Don’t use & store the unit in dusty places.

3. Don’t put the unit in overheated or overcooled places.

4. Handle carefully. Don’t vibrate or shake it violently.

5. Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent.

6. Don’t paint the unit, this may cause some foreign materials left in between the parts.

7. Don’t disassemble or refit the unit.

More pictures:

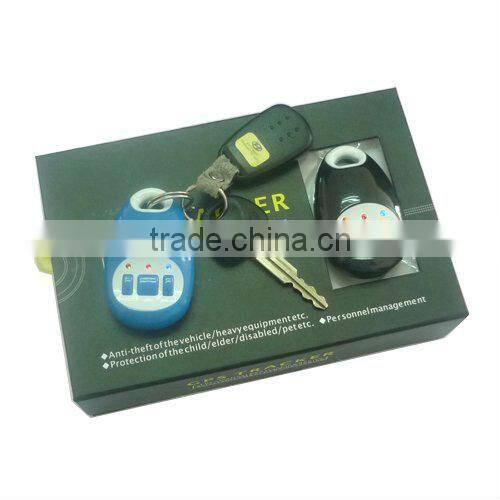

Black Color

Blue Color

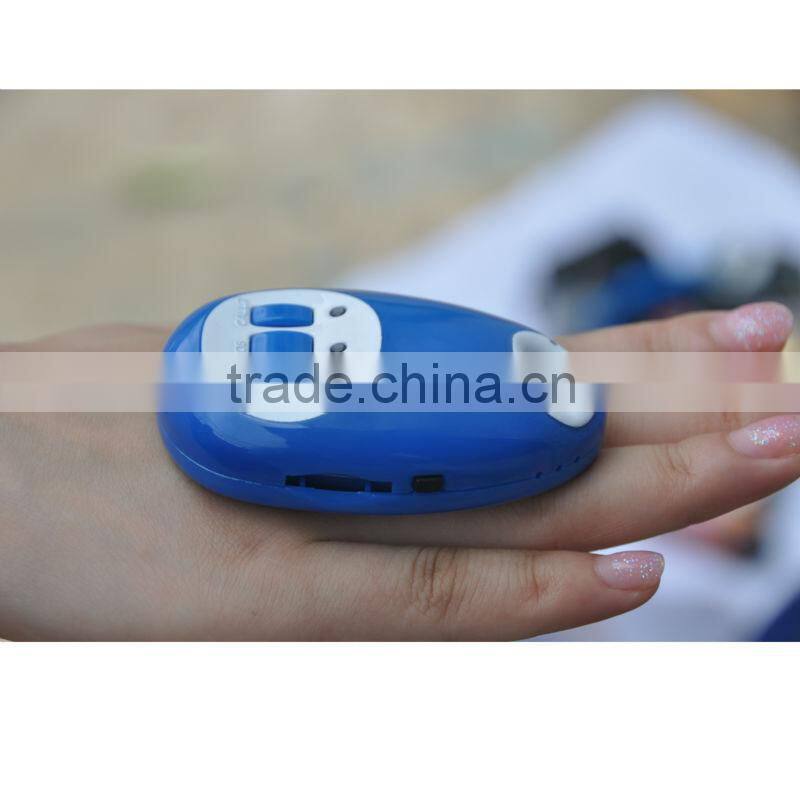

Easy to take with

Light in weight

Small enough to be attached in the key chain

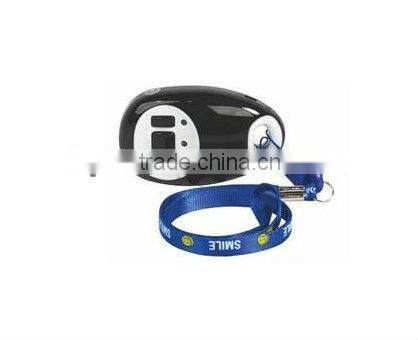

Accessories:

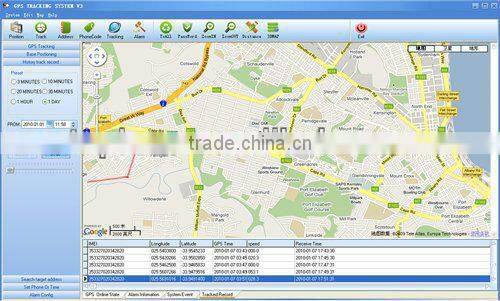

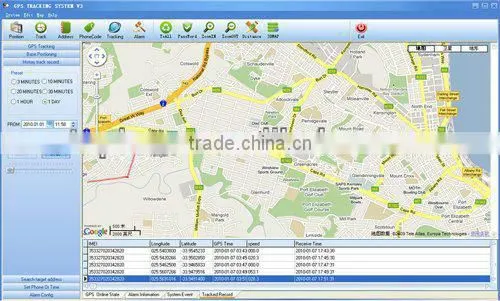

Free Tracking Platform:
