Specifications of high quality high voltage capacitors snubber capacitor
• Plastic, Sealed with epoxy resin;
• Tin-plated copper inserts leads, easy installation for IGBT;
• Resistance to high voltage, low tg δ, low temperature rise;
• Low ESL and ESR;
• High pulse Current.

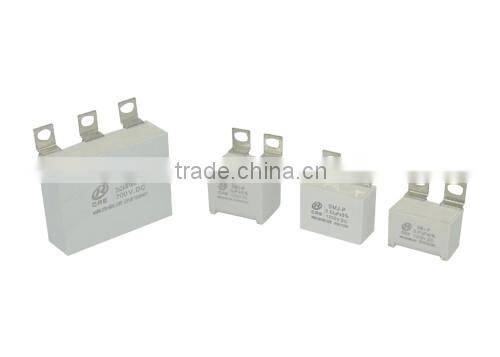

SMJ-P Series high quality high voltage capacitors snubber capacitor
Technical data:
Operating temperature range | -40 ~ +85℃. Top max: +105℃ |
Capacitance range | 0.1~5.6μF |
Rated voltage | 700V.DC ~ 6000V.DC |
Capacitance tolerance | ±5%(J); ±10%(K) |
Withstand voltage | 1.5Un/10S |
Dissipation factor | tgδ<=0.0005 C<=1μF f=10KHz tgδ<=0.0010 C>=1μF f=10KHz |
Insulation resistance | C<=0.33μF RS>=15000MΩ(at 20℃ 100V.DC) C>0.33μF RSXC>=5000S (at 20℃ 100V.DC) |
Flame retardation | UL94V-0 |
Reference standard | IEC 61071; IEC 61881 |
Different parameters of 700V.DC SMJ-P Series snubber Film capacitor:
Cn (µF) | W (mm) | T (mm) | H (mm) | ESR (mΩ) | ESL(nH) | dv/dt (V/µS) | Ip (KA) | Irms (A) |
Un 700V.DC,Urms400Vac,Us1050V | ||||||||
0.47 | 42.5 | 24.5 | 27.5 | 12 | 25 | 500 | 235 | 8 |
0.68 | 42.5 | 24.5 | 27.5 | 10 | 25 | 480 | 326.4 | 10 |
1 | 42.5 | 24.5 | 27.5 | 8 | 24 | 450 | 450 | 12 |
1.5 | 42.5 | 33.5 | 35.5 | 7 | 25 | 430 | 645 | 5 |
2 | 42.5 | 33 | 35.5 | 6 | 24 | 420 | 840 | 15 |
2.5 | 42.5 | 33 | 45 | 6 | 23 | 400 | 1000 | 18 |
3 | 42.5 | 33 | 45 | 5.5 | 22 | 380 | 1140 | 20 |
3 | 57.5 | 30 | 45 | 5 | 26 | 350 | 1050 | 22 |
3.5 | 42.5 | 33 | 45 | 5 | 23 | 350 | 1225 | 25 |
3.5 | 57.5 | 30 | 45 | 6 | 25 | 300 | 1050 | 22 |
4.7 | 57.5 | 35 | 50 | 5 | 28 | 280 | 1316 | 25 |
5.6 | 57.5 | 38 | 54 | 4 | 30 | 250 | 1400 | 25 |
6 | 57.5 | 38 | 54 | 3.5 | 33 | 230 | 1380 | 28 |
6.8 | 57.5 | 42.5 | 56 | 3.2 | 32 | 220 | 1496 | 32 |
8 | 57.5 | 42.5 | 56 | 2.8 | 30 | 200 | 1600 | 33 |
Typical circuit of SMJ-P Series high quality high voltage capacitors snubber capacitor
More other similar products, please feel free to click Here.
SMJ-P Series high quality high voltage capacitors snubber capacitor
• IGBT Snubber.
•Widely used in power electronic equipment when the peak voltage, peak current absorption protection.
