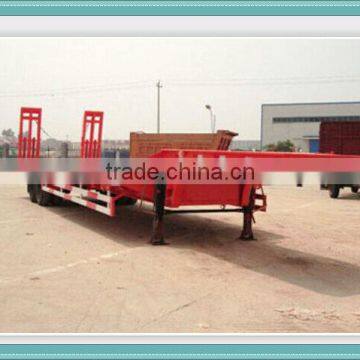

Tme Go Heavy Duty Lowboy Trailer Factory

Tare Weight

About 8.5-13T

Dimension

13000mm*3000mm-3500mm*1650mm (Size can be choose freely)

Loading Capacity (T)

40T-100T

Axle

13 T/16T, FUWA /BPW /Huajing Brand

Rim

6.5-20/7.5-20/8.00-20/8.5-20  (Special for export market)

Tire

8.25R20/10.00R20/11.00R20/12.00R20

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand ) (Special for export market)

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

(Special for export market)

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm,

down plate is 16mm-25mm ; Material is Q345B Steel .

Side beam

16mm -30mm channel steel ( Material is Q235steel ).

Bottom Platform

3-6mm thickness diamond steel plate

Ladder

Manual or Hydraulic type

Gooseneck

For choose

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)

Valve

WABCO valve

Light

LED light (Special for export market)

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

By bulk cargo carrier, RORO or 40HQ container.
