1.Material:SBR Natural rubber
2.Size: 1/4", 5/16", 3/8",1/2",5/8",3/4",1"
3.Color: Red, blue, black, green, yellow, same price for different colors
4.Logo: company logo can be imprinted on the rubber hose
5.Working pressure: 300PSI(20Bar)
6.Bursting pressure: 900PSI(60Bar)
7.Structure: Inside bond layer + reinforcing layer ( second reinforcing layer for1/2",5/8",3/4",1")
8.outside bond layer; outside surface is mill finish, reinforcing layer is braid fiber with high
9.retractility,weather and ozone,abrasion resistant
10.Temperature:-40`C~+90`C
This product is used in coal mine hydraulic support, mining, engineering machinery hydraulic system, oil field has a certain pressure and temperature of water, emulsion, glycol solution, mineral oils, soluble oil, and other media.

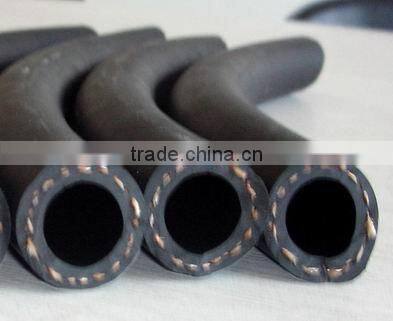

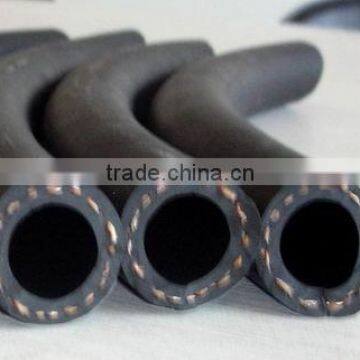

Product structure of hydraulic hose and air hose for drilling rig
This hose is composed of 3 layers,an liquid resistant synthetic rubber, a steel wire reinforced layer and an excellent weather resistance ,antistatic properties and flame retardant synthetic rubber cover layer. protective layer can be added if special requirements to the rubber rubber cover layer.
h
| size | I.D | O.D | line layer | W.P | B.P | Standard length | net weight | measure-ment |
| inch | mm | mm | bar | bar | m/roll | kg/roll | m3/roll | |
| 1/4 | 6 | 13 | 1 | 20 | 60 | 100 | 18 | 0.032 |
| 5/16 | 8 | 15 | 1 | 20 | 60 | 100 | 22 | 0.035 |
| 3/8 | 10 | 17 | 1 | 20 | 60 | 100 | 24 | 0.043 |
| 1/2 | 12.5 | 21 | 2 | 20 | 60 | 100 | 43 | 0.085 |
| 5/8 | 16 | 25 | 2 | 20 | 60 | 100 | 48 | 0.150 |
| 3/4 | 19 | 28 | 2 | 20 | 60 | 100 | 58 | 0.170 |
| 1 | 25 | 35 | 2 | 20 | 60 | 50 | 42 | 0.1 |
packing:can use pvc film, paper card,nylon bag,shrink wrapped ,carton box, or as your requirement
Please feel free to contact us for more details
Trademanager:cn204109000
Tel:0575-87061613
Fax:0575-87618766
