Home > Products > Led Dimmer > RF LED Dimmer DC5-24V Input 144W for 24V RF Wireless LED Dimmer
RF LED Dimmer DC5-24V Input 144W for 24V RF Wireless LED Dimmer
- 2000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | China | Brand Name: | OEM | Model Number: | JM-LD-RF-12V-MINI |
| Type: | Remote Control | Max. Load Power: | 144w | Voltage: | Other, 12v-24v |
Product Description
Specifications
Comes with 10 key Remote Control, very easy to operate.19 dynamic modes, 20 static colors and 256-grade PWM.
RF LED Dimmer DC5-24V Input 144W for 24V RF Wireless LED Dimmer
Features:

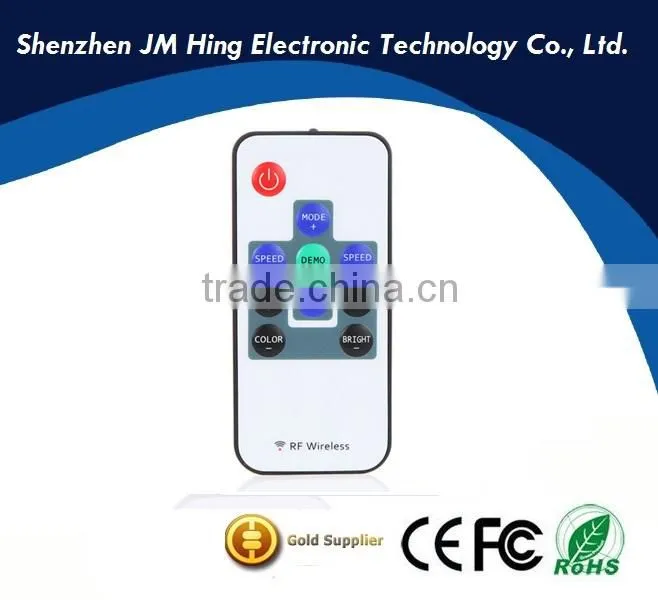

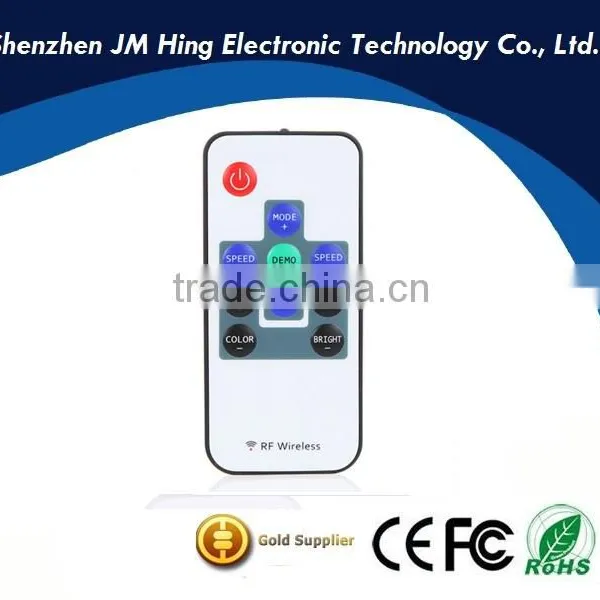

Comes with 10 key Remote Control, very easy to operate.
19 dynamic modes, 20 static colors and 256-grade PWM.
Adjustable static color brightness and dynamic playing speed.
Demo mode. At Demo mode, strip will cycle 9 dynamic modes 3 times.
1 to 1 remote paired.
Auto save function.
Used for RGB LED strip such as 5050, 3528, etc.
Specifications:
Working Voltage: DC 5~24V
Peak Output Power: 144W(12V) 288W(24V)
Peak Output Current: 3 * 4A
Remote Control Frequency: 433.92MHz
Dynamic Mode: 19 modes
Static Color: 20 colors
PWM Grade: 256 levels
Brightness Grade: 5 levels
Speed Grade: 10 levels
Control Mode: RF wireless
Connecting Mode: Common Anode(+)
Control Distance: >15m at open area

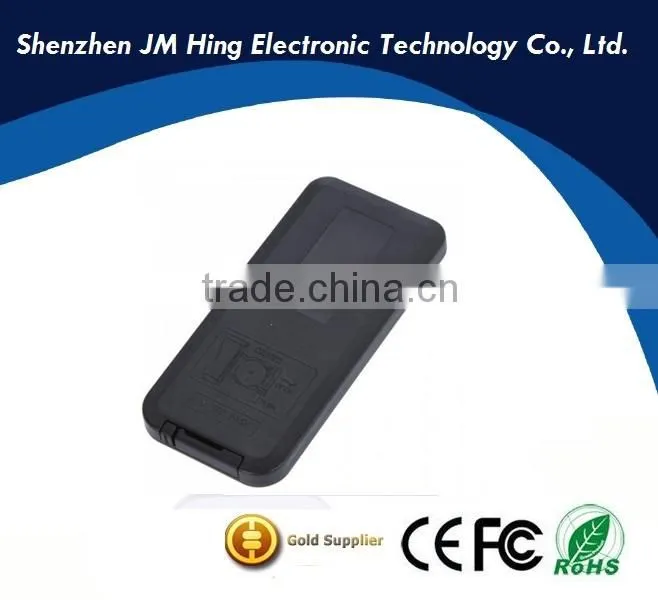

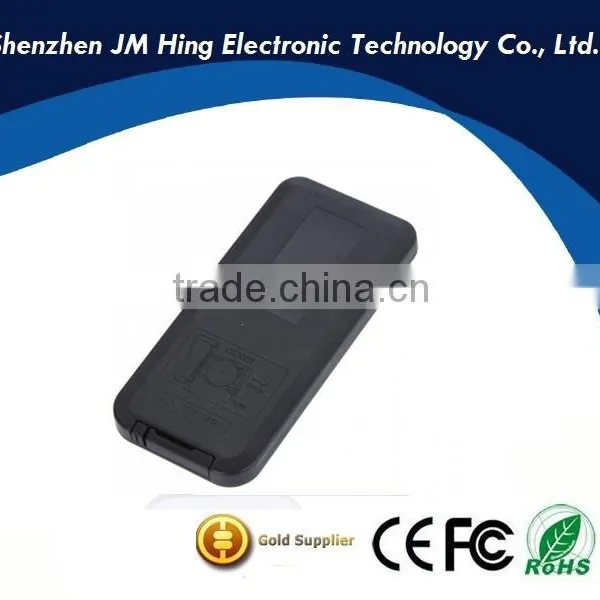

Remote powered by: 1 * CR2025
Working temperature: -30~70?
Remote size: Approx. 8.5 * 4cm / 3.3 * 1.6in
Item weight: Approx. 27g / 0.95oz
Package size: Approx. 10.8 * 9 * 1cm / 4.2 * 3.5 * 0.4in
Package weight: Approx. 33g / 1.16oz
Package included:

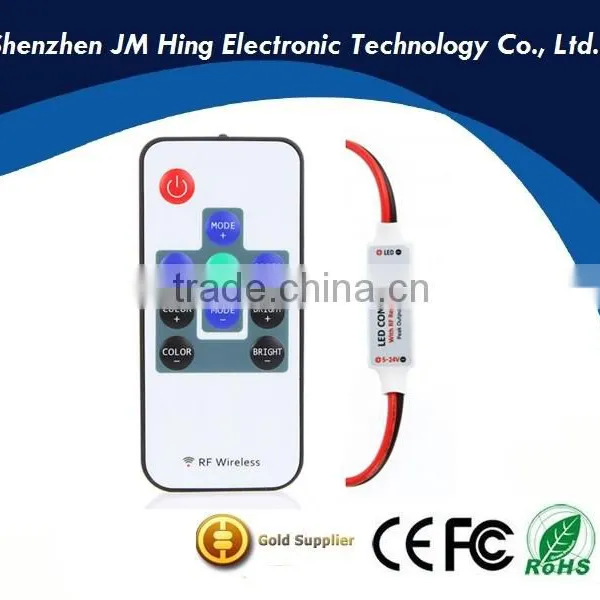

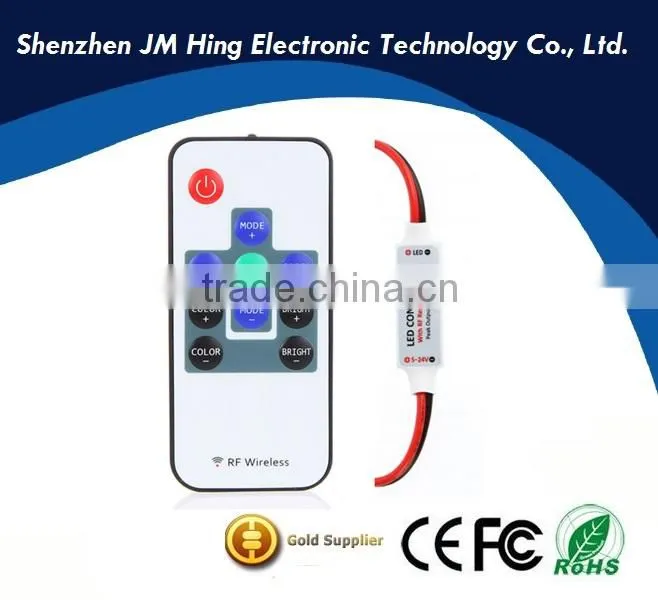

1 * LED Controller (LED Strip Light not included)
1 * RF Remote
